c. Slide the peripheral assembly back and lift it from the chassis. Do not remove
any of the cables attached to the peripheral assembly.
d. Set the peripheral assembly on an antistatic mat.
5. Disconnect the power switch/LED cable from the riser board connector J2
(
FIGURE 6-8
FIGURE 6-8
6. Open the two cable routing clips on the chassis.
Note – You can move the fan assembly for easier access to the cables. See
Section 6.4.1 "Removing the Fan Assembly" on page 6-16.
7. Remove the nut and washer retaining the power switch to the chassis.
8. Press the LED out of the chassis from the front panel side.
9. Remove the power switch/LED assembly from the chassis.
6.2.12
Replacing the Power Switch/LED Assembly
1. Position the power switch/LED assembly into the chassis (
6-12
Sun Blade 100 Service Manual • October 2000
).

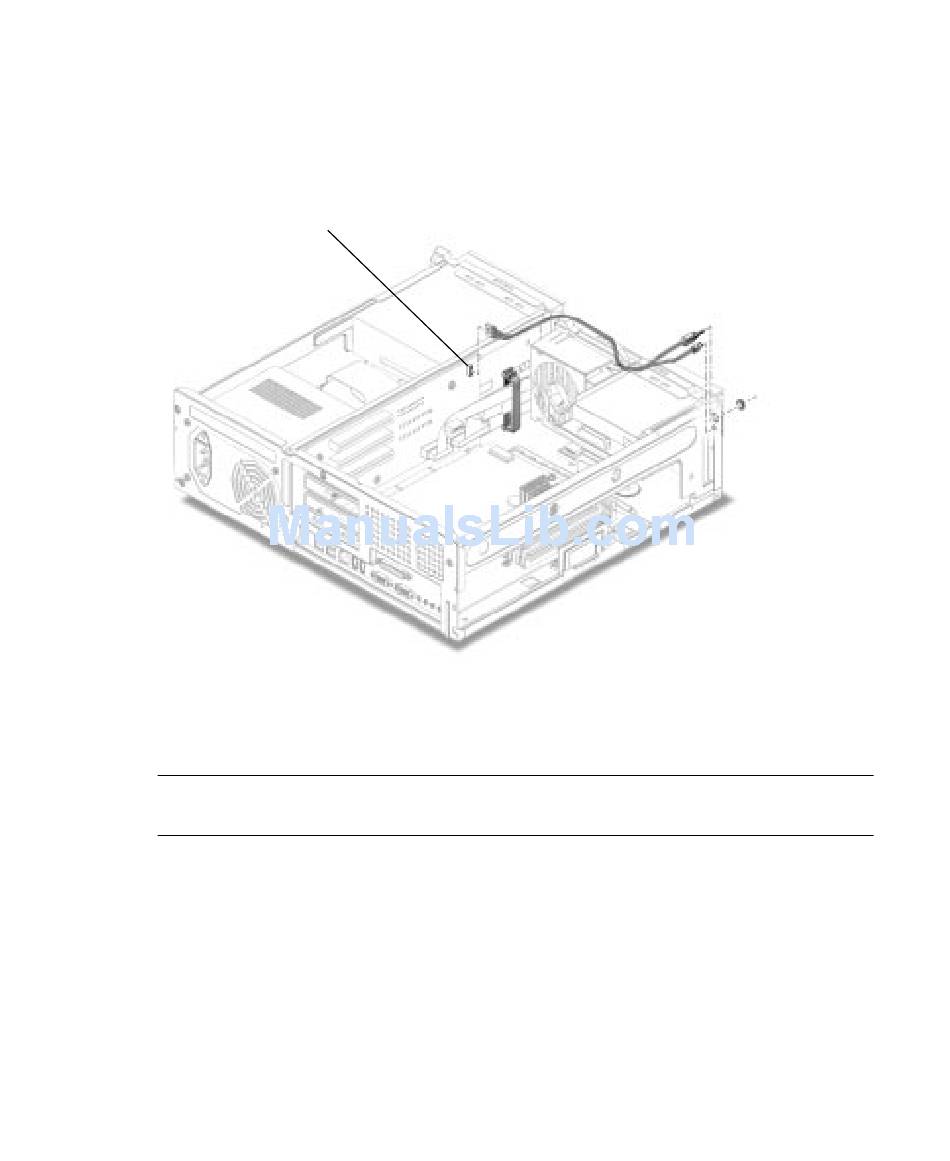

J2 connector
Removing and Replacing the Power Switch/LED Assembly
).
FIGURE 6-8
