FIGURE 8-5
8.3.2

Replacing a DIMM

Caution – Do not remove any DIMM from the antistatic container until you are
ready to install it on the motherboard. Handle DIMMs only by their edges. Do not
touch DIMM components or metal parts. Always wear an antistatic wrist strap when
handling DIMMs.
Note – Always remove and replace DIMMs in order, beginning with the DIMM
closest to the edge of the motherboard (
1. Remove the DIMM from the antistatic container.
2. Position the DIMM in the connector, ensuring that the notches on the bottom of
the DIMM are aligned with the connector alignment keys (
Note – DIMM alignment notches and connectors are keyed to ensure proper DIMM
orientation.
8-10 Sun Blade 100 Service Manual • October 2000

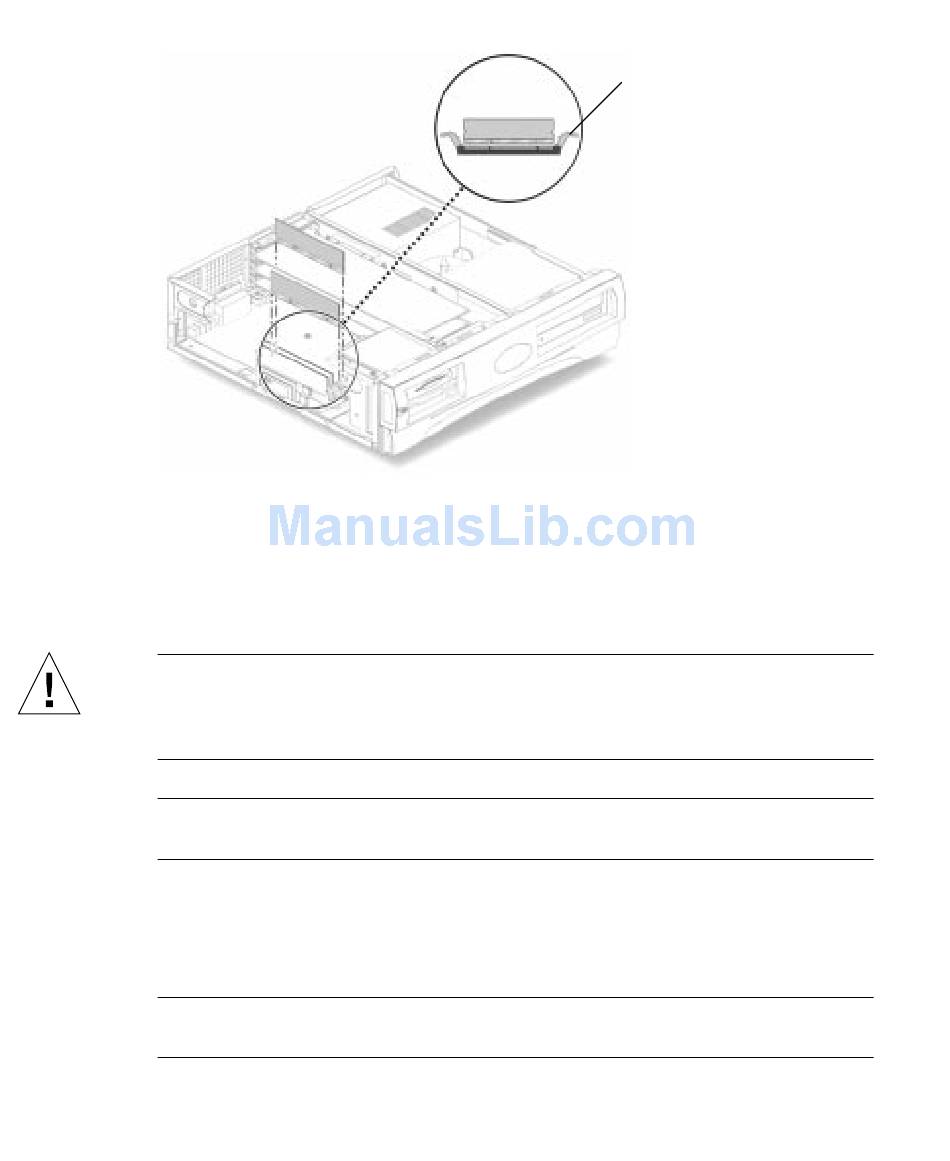

Removing and Replacing a DIMM
Ejection lever
).
FIGURE 8-4
FIGURE 8-5
).
