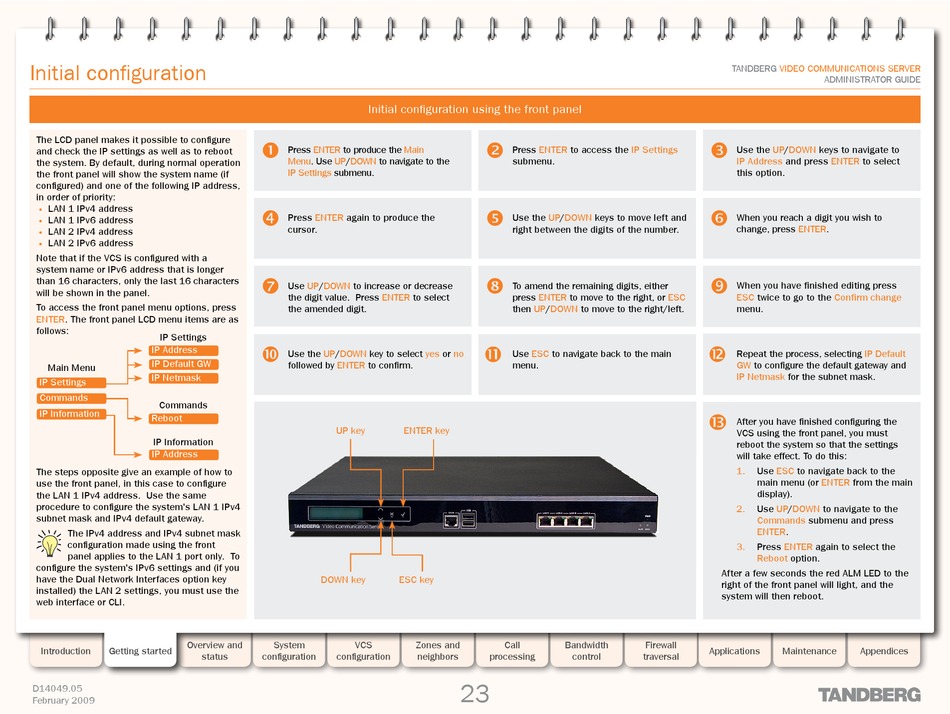

Initial configuration
The LCD panel makes it possible to configure
and check the IP settings as well as to reboot
the system. By default, during normal operation
the front panel will show the system name (if
configured) and one of the following IP address,
in order of priority:
•
LAN 1 IPv4 address
•
LAN 1 IPv6 address
•
LAN 2 IPv4 address
•
LAN 2 IPv6 address
Note that if the VCS is configured with a
system name or IPv6 address that is longer
than 16 characters, only the last 16 characters
will be shown in the panel.
To access the front panel menu options, press
ENTER. The front panel LCD menu items are as
follows:
IP Settings
IP Address
IP Default GW
Main Menu
IP Netmask
IP Settings
Commands
Commands
IP Information
Reboot
IP Information
IP Address
The steps opposite give an example of how to
use the front panel, in this case to configure
the LAN 1 IPv4 address. Use the same
procedure to configure the system's LAN 1 IPv4
subnet mask and IPv4 default gateway.
The IPv4 address and IPv4 subnet mask
configuration made using the front
panel applies to the LAN 1 port only. To
configure the system's IPv6 settings and (if you
have the Dual Network Interfaces option key
installed) the LAN 2 settings, you must use the
web interface or CLI.
Overview and
Introduction Getting started
status
D14049.05
February 2009
Initial configuration using the front panel
!
Press ENTER to produce the Main
Menu. Use UP/DOWN to navigate to the
IP Settings submenu.
$
Press ENTER again to produce the
cursor.
'
Use UP/DOWN to increase or decrease
the digit value. Press ENTER to select
the amended digit.
*
Use the UP/DOWN key to select yes
followed by ENTER to confirm.
UP key ENTER key
DOWN key ESC key
System VCS Zones and
configuration configuration neighbors
"
Press ENTER to access the
submenu.
%
Use the UP/DOWN keys to move left and
right between the digits of the number.
(
To amend the remaining digits, either
press ENTER to move to the right, or
then UP/DOWN to move to the right/left.
or no Use ESC to navigate back to the main
menu.
Call Bandwidth
processing control
23
TANDBERG VIDEO COMMUNICATIONS SERVER
#
IP Settings Use the UP/DOWN
IP Address and press
this option.
&
When you reach a digit you wish to
change, press ENTER.
)
When you have finished editing press
ESC ESC twice to go to the
menu.
Repeat the process, selecting
GW to configure the default gateway and
IP Netmask for the subnet mask.
After you have finished configuring the
VCS using the front panel, you must
reboot the system so that the settings
will take effect. To do this:
1. Use ESC to navigate back to the
main menu (or
display).
2. Use UP/DOWN
Commands submenu and press
ENTER.
3. Press ENTER
Reboot option.
After a few seconds the red ALM LED to the
right of the front panel will light, and the
system will then reboot.
Firewall
Applications Maintenance
traversal
ADMINISTRATOR GUIDE
keys to navigate to
ENTER to select
Confirm change
IP Default
ENTER from the main
to navigate to the
again to select the
