RMP Programming
1. Access the RMP using the procedures described in Section 3.3.

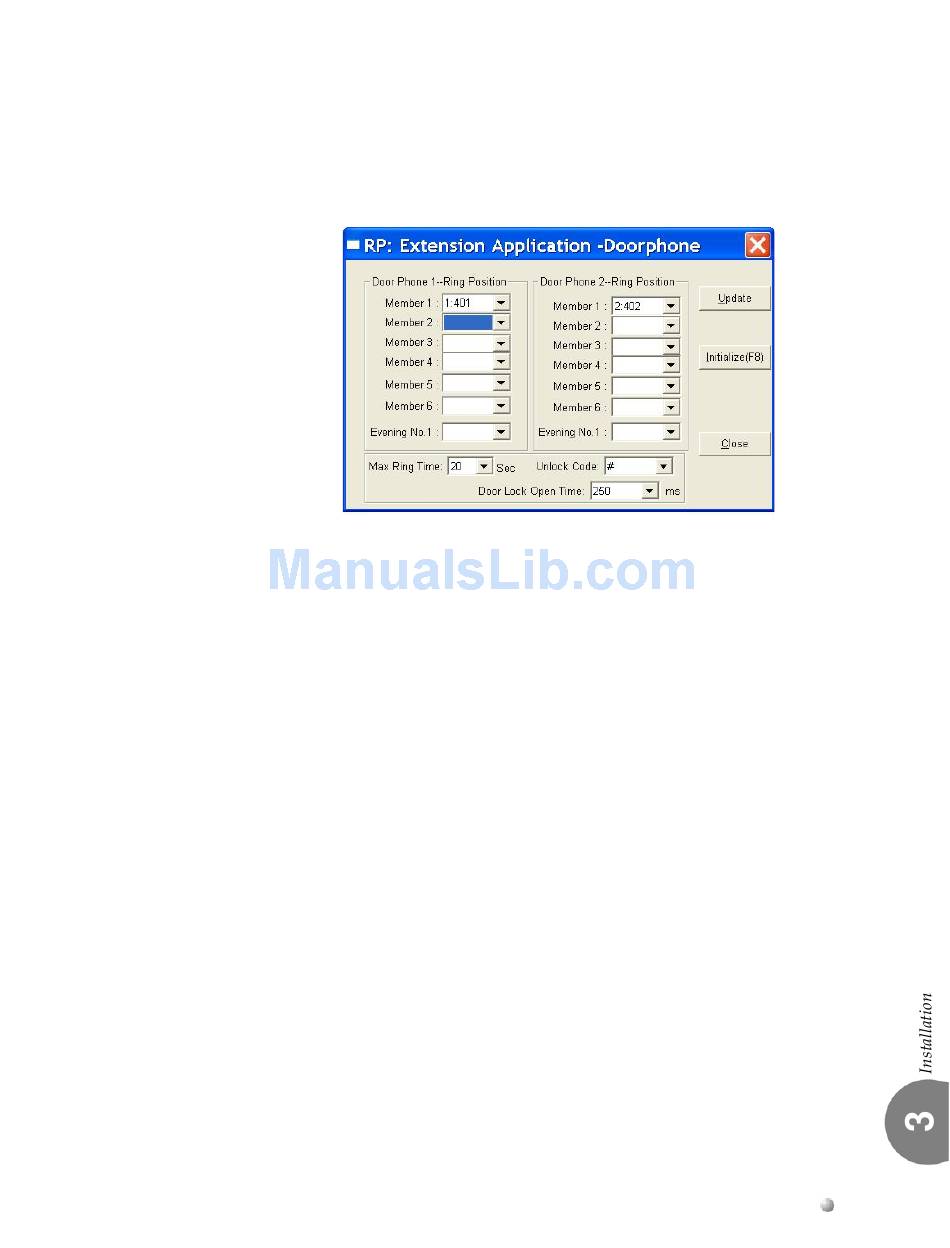

2. Select RP, Extension Application, Door Phone from the toolbar to display
the following window.
Door Phone 1 represents extension 411. Door Phone 2 represents extension 412.
Using the drop down lists, select extensions and and timers as follows:
Member (1‐6) ‐ When the Emerald ICE system is in the Day Service Mode, up
to 6 extensions/Hunt Groups (UCD) may be assigned to ring for the Door
Phone. (Range: 401‐472, 230‐253).
Evening No. ‐ When the Emerald ICE system is in the Night Service Mode, 1
extensions/Hunt Groups (UCD) may be assigned to ring for the Door Phone.
(Range: 401‐472, 230‐253).
Max Ring Time: ‐ Since the Door Phone Call button can be pressed and then
abandoned, a maximum ring time must be set. (Range: 10, 20, ...60; Default:
20).
Unlock Code: ‐ While connected to the Door Phone and dial pad digit can be
pressed to trigger the relay and operate the door opener. This code can be
changed here. (Range: 0‐9, *, #; Default: #)
Door Lock Open Time: ‐ This timer determines how long the relay operates
when the Unlock Code is dialed. (Range: 50~5000 milliseconds; Default: 250
milliseconds).
