Emerald ICE Installation & Hardware Reference Manual
Hardware Installation
Installing the hardware consists of removing the existing jumper connectors on the
610+2 board, installing the mounting bracket, wiring the Door Phone to the board
and connecting your door opener with the relays on the 610+2 board.

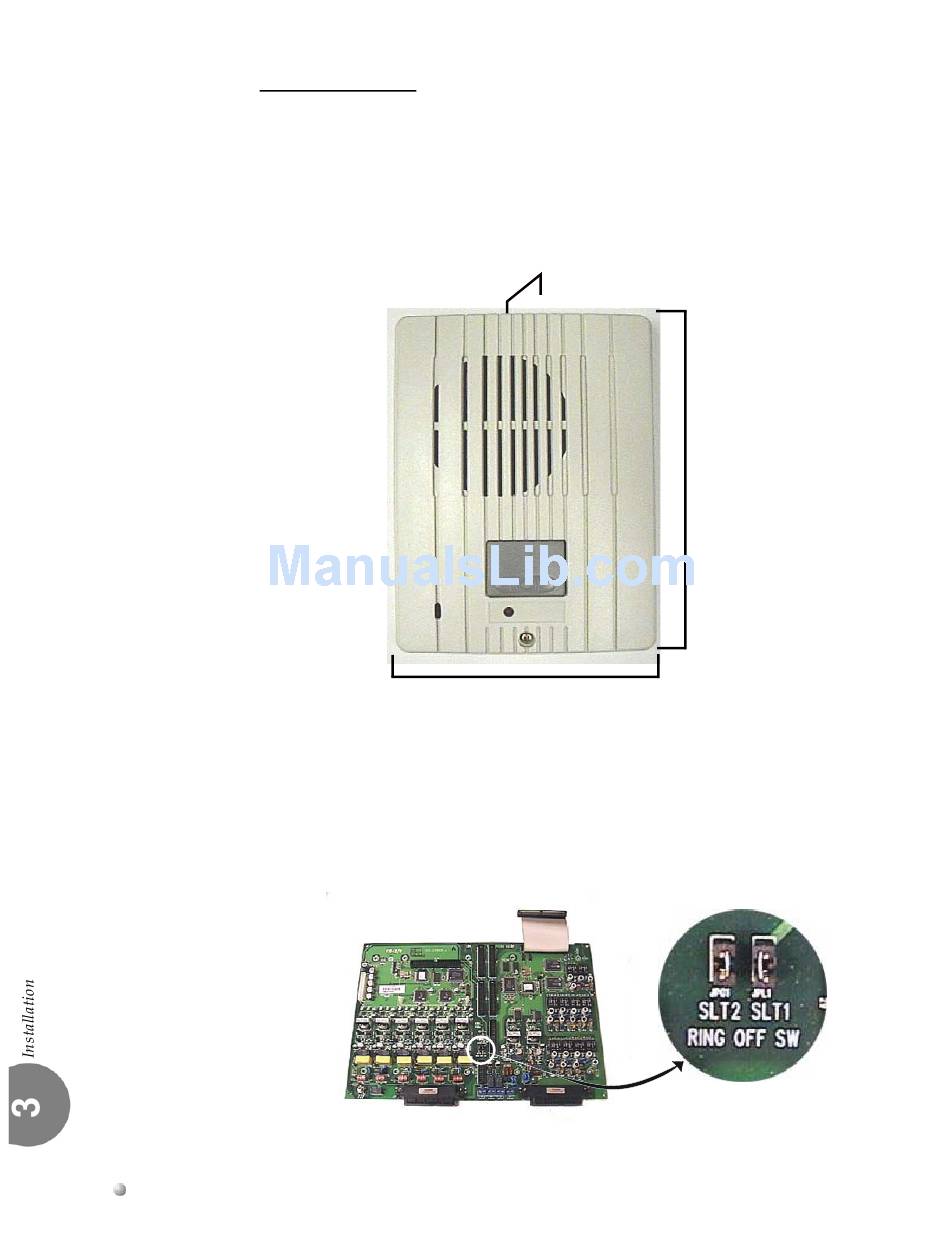

The dimensions fo the door phone are: W= 3.75 Inches: H= 5 inches: D=1.25 inches
1.25 inches
Procedures
1. Power down the KSU, if it is not powered down already.
2. Find jumpers SLT1 and SLT2 on the 610+2 board and remove the straps as
necessary. SLT1 is for extension 411 and SLT2 is for extension 412.
3.75 inches
5 inches
