3-18
Emerald ICE Installation & Hardware Reference Manual

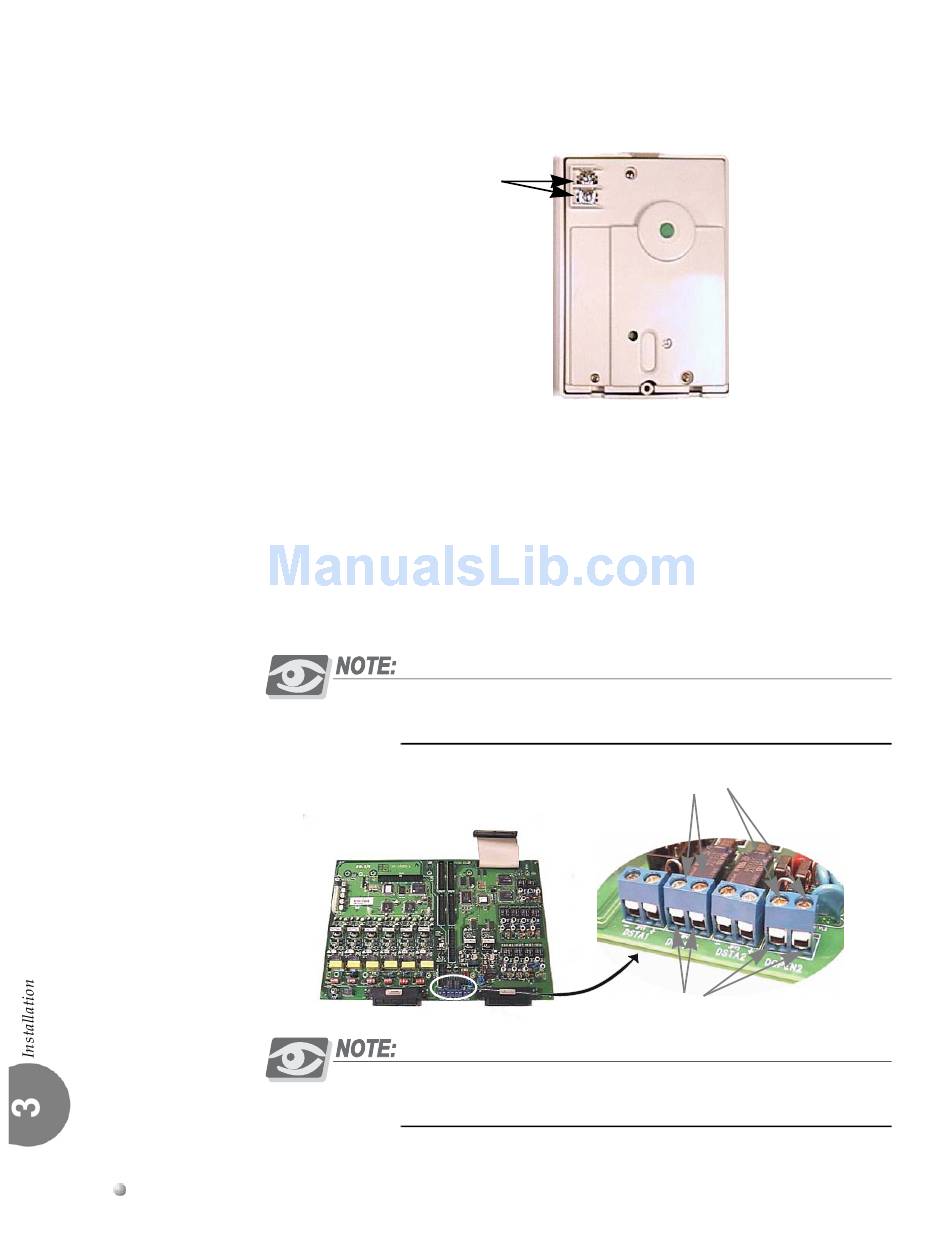

Connect the desired pairs to the Door Phone Terminals as shown below:
Terminals
6. Reattach the wired Door Phone to the Mounting Bracket using the Mating
Screw.
7. Connect your door opener with the desired relays on the 610+2 Board
using the tightening screws to secure wiring in the lower terminals of the
relays. The relays are 1 amp relays that close a loop circuit when a
programmed unlocking code is pressed on a telephone keypad. When the
circuit is closed, the on‐site door opening mechanism will activate to
unlock the door.
Contact your Site Adminstrator or Facilities Administrator for wiring and other
information on the door opening mechanism installed at your site.
Note that the DSTA1 and DSTA2 relays are reserved for future use and are
not for use at this time.
Tightening Screws
Lower Terminals
