3.3

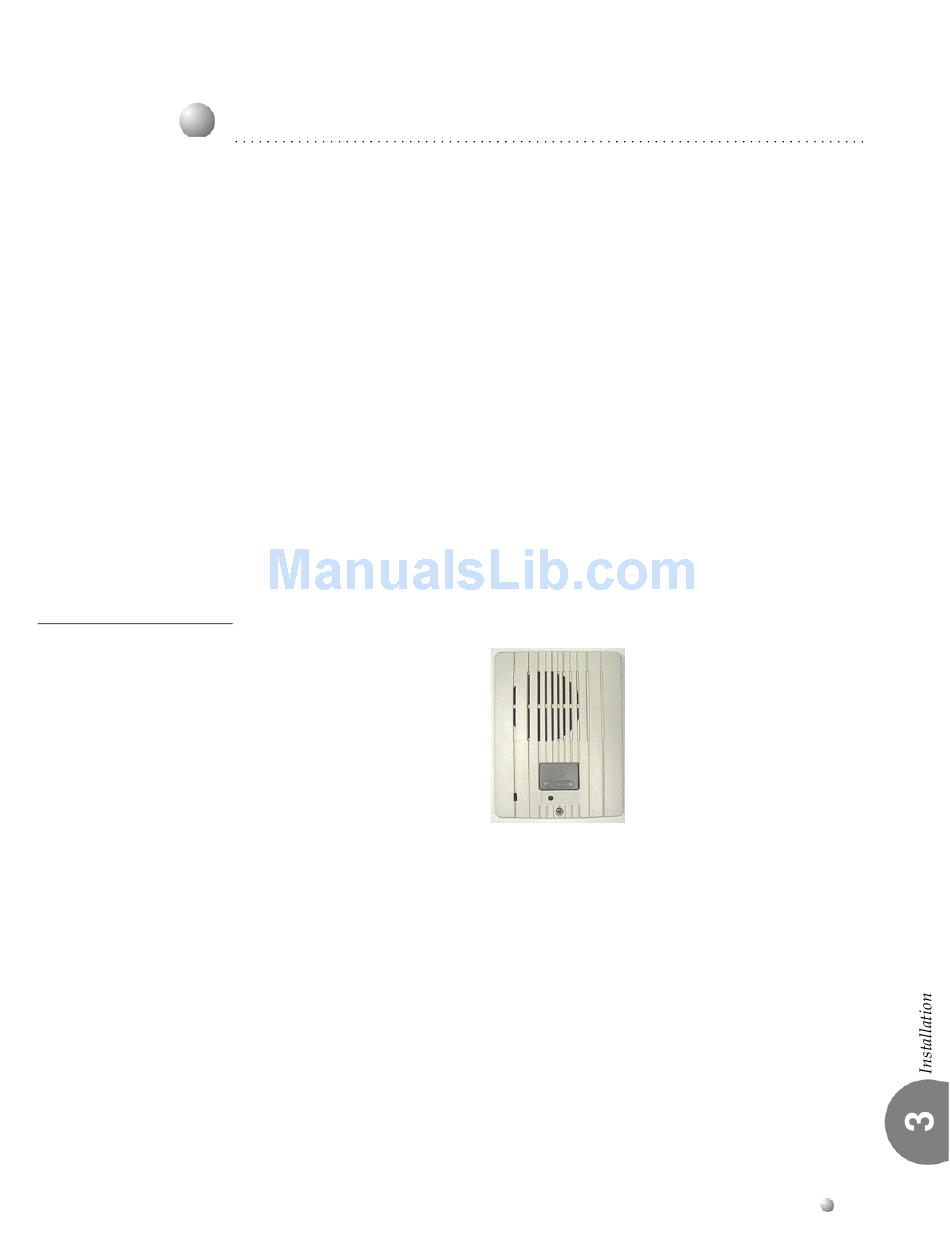

Figure 3-1 Emerald ICE
Door Phone

Door Phone Installation

The Emerald ICE system permits 2 Door Phone extensions to be connected with the
610+2 Board. The extensions are analog and are used to activate relays which are
connected with the on‐site door opening circuit or ancillary device.
Telephone keys can be programmed using either the Deluxe Telephone or the RMP
to open the door and set the unlocked time.
Up to 6 extensions per door phone can be programmed to ring when the door
phone is activated.
Instllation of the Emerald ICE Door Phone consists fo the following:
1. Connection with the 610+2 Board.
2. Connection of the door phone to the Emerald ICE KSU.
3. Installation of the Mounting Bracket and mounting of the Door Phone.
4. Connection of the door phone and relays.
4. Deluxe Telephone Programming or RMP Programming.
The door phone extensions are preprogrammed for extensions 411 and 412.
The default Door Unlocked time is defaulted to 250 milliseconds.
