5
BASIC OPERATION

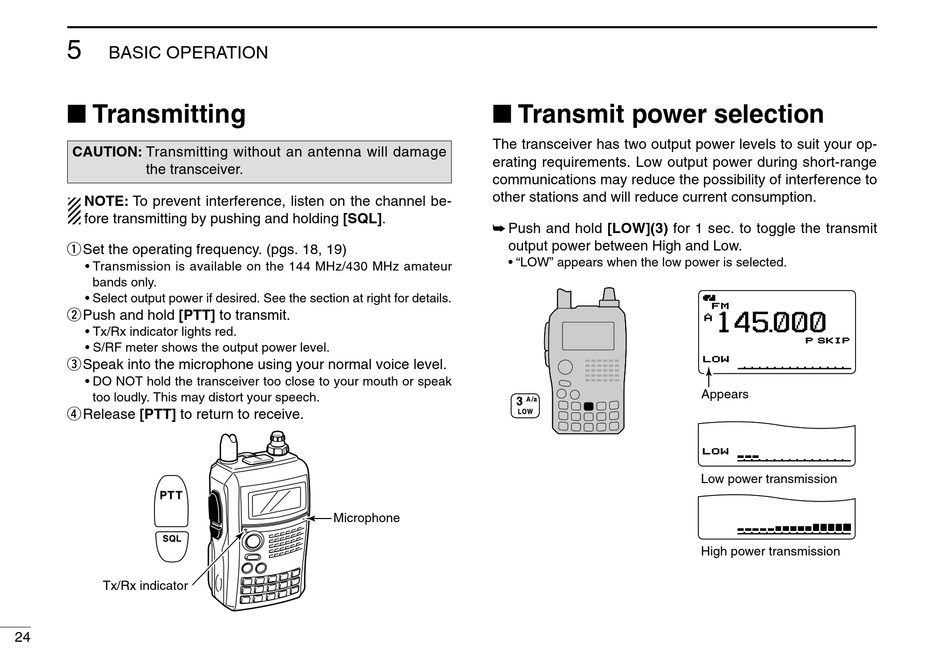

I Transmitting

CAUTION: Transmitting without an antenna will damage
the transceiver.
NOTE: To prevent interference, listen on the channel be-
fore transmitting by pushing and holding [SQL].
q Set the operating frequency. (pgs. 18, 19)
• Transmission is available on the 144 MHz/430 MHz amateur
bands only.
• Select output power if desired. See the section at right for details.
w Push and hold [PTT] to transmit.
• Tx/Rx indicator lights red.
• S/RF meter shows the output power level.
e Speak into the microphone using your normal voice level.
• DO NOT hold the transceiver too close to your mouth or speak
too loudly. This may distort your speech.
r Release [PTT] to return to receive.
Tx/Rx indicator
24

I Transmit power selection

The transceiver has two output power levels to suit your op-
erating requirements. Low output power during short-range
communications may reduce the possibility of interference to
other stations and will reduce current consumption.
➥ Push and hold [LOW](3) for 1 sec. to toggle the transmit
output power between High and Low.
• "LOW" appears when the low power is selected.
Microphone
+DUP +DUP DTCS DTCS
FM FM PRIO PRIO WX WX EMR EMR
145 000
25
A
MemoName
P SKIP
µ 000 000
LOW LOW
ATT ATT
Appears
LOW LOW
Low power transmission
LOW LOW
High power transmission
