3
RECEIVE AND TRANSMIT

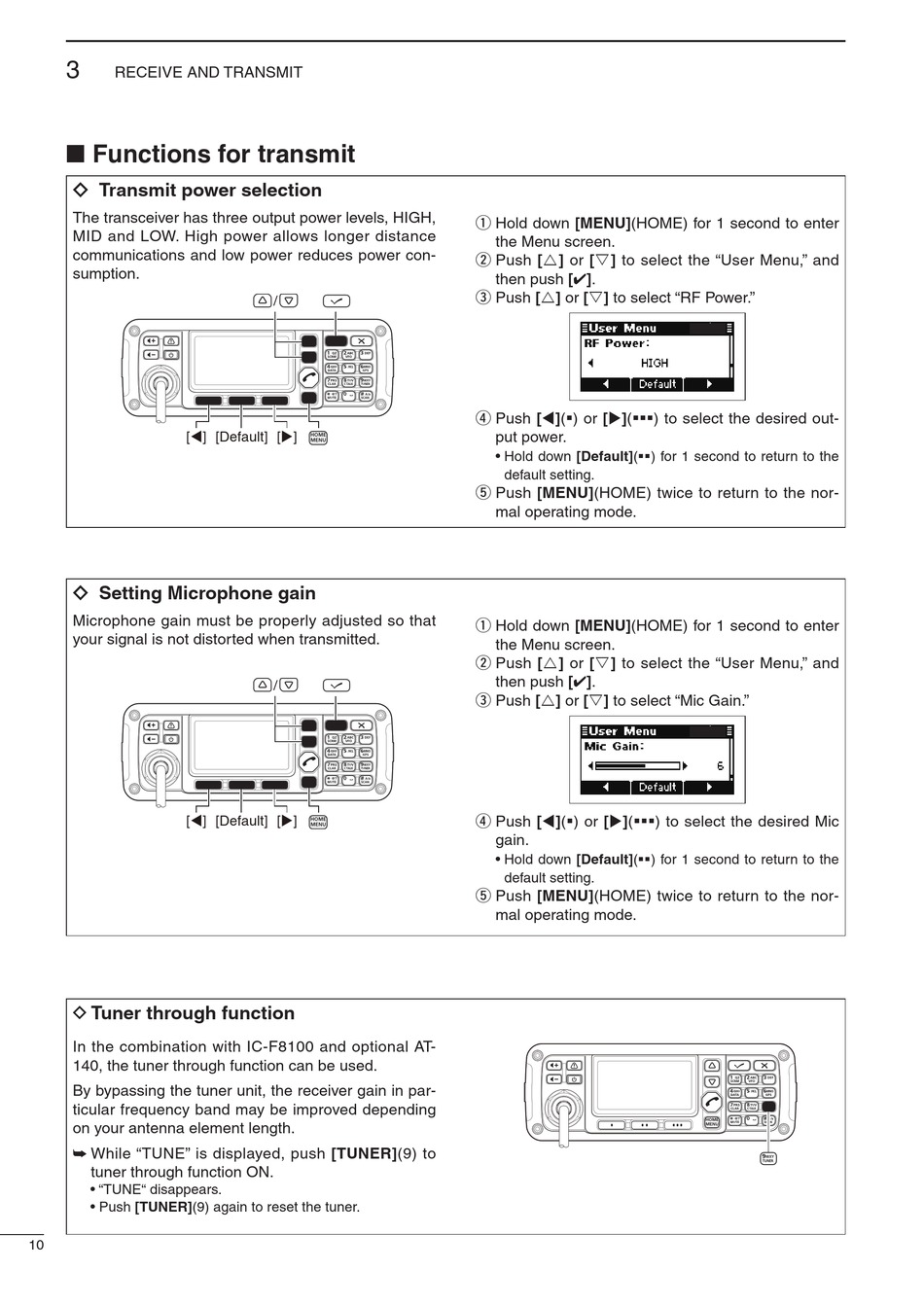

■ Functions for transmit

ï Transmit power selection
The transceiver has three output power levels, HIGH,
MID and LOW. High power allows longer distance
communications and low power reduces power con-
sumption.
[�]
ï Setting Microphone gain
Microphone gain must be properly adjusted so that
your signal is not distorted when transmitted.
[�]
D Tuner through function
In the combination with IC-F8100 and optional AT-
140, the tuner through function can be used.
By bypassing the tuner unit, the receiver gain in par-
ticular frequency band may be improved depending
on your antenna element length.
➥ While "TUNE" is displayed, push [TUNER](9) to
tuner through function ON.
• "TUNE" disappears.
• Push [TUNER](9) again to reset the tuner.
10
/
[Default] [�]
/
[Default] [�]
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the "User Menu," and
then push [4].
e Push [r] or [s] to select "RF Power."
r Push [t](§) or [u](§§§) to select the desired out-
put power.
• Hold down [Default](§§) for 1 second to return to the
default setting.
t Push [MENU](HOME) twice to return to the nor-
mal operating mode.
q Hold down [MENU](HOME) for 1 second to enter
the Menu screen.
w Push [r] or [s] to select the "User Menu," and
then push [4].
e Push [r] or [s] to select "Mic Gain."
r Push [t](§) or [u](§§§) to select the desired Mic
gain.
• Hold down [Default](§§) for 1 second to return to the
default setting.
t Push [MENU](HOME) twice to return to the nor-
mal operating mode.
