CDM-710G High-Speed Satellite Modem
Web Server Interface

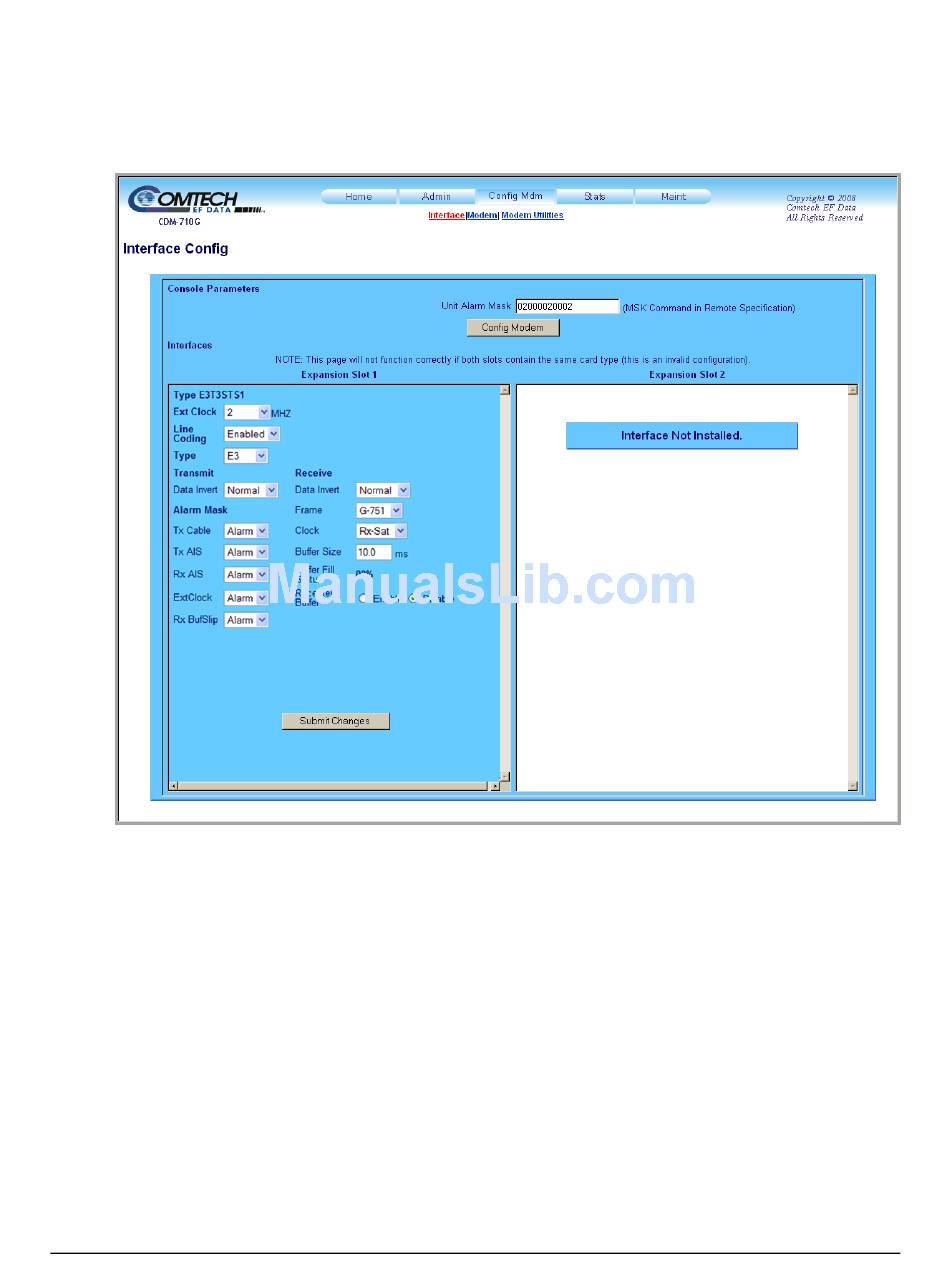

If there is no interface module present, as shown in Figure 7-7 the message "Interface Not
Installed." is displayed in place of an operable configuration window. In this example, a
CDI-10-1 Single G.703 E3/T3/STS1 Interface Module has been installed in Expansion Slot 1,
while Expansion Slot 2 is empty:

Figure 7-7. Config Mdm | Interface Page (with Empty Slot)

7–11
Revision 1
MN-CDM710G
