GRAPHTEC GL450 User Manual page 53

Settings and Measurement
Condition settings

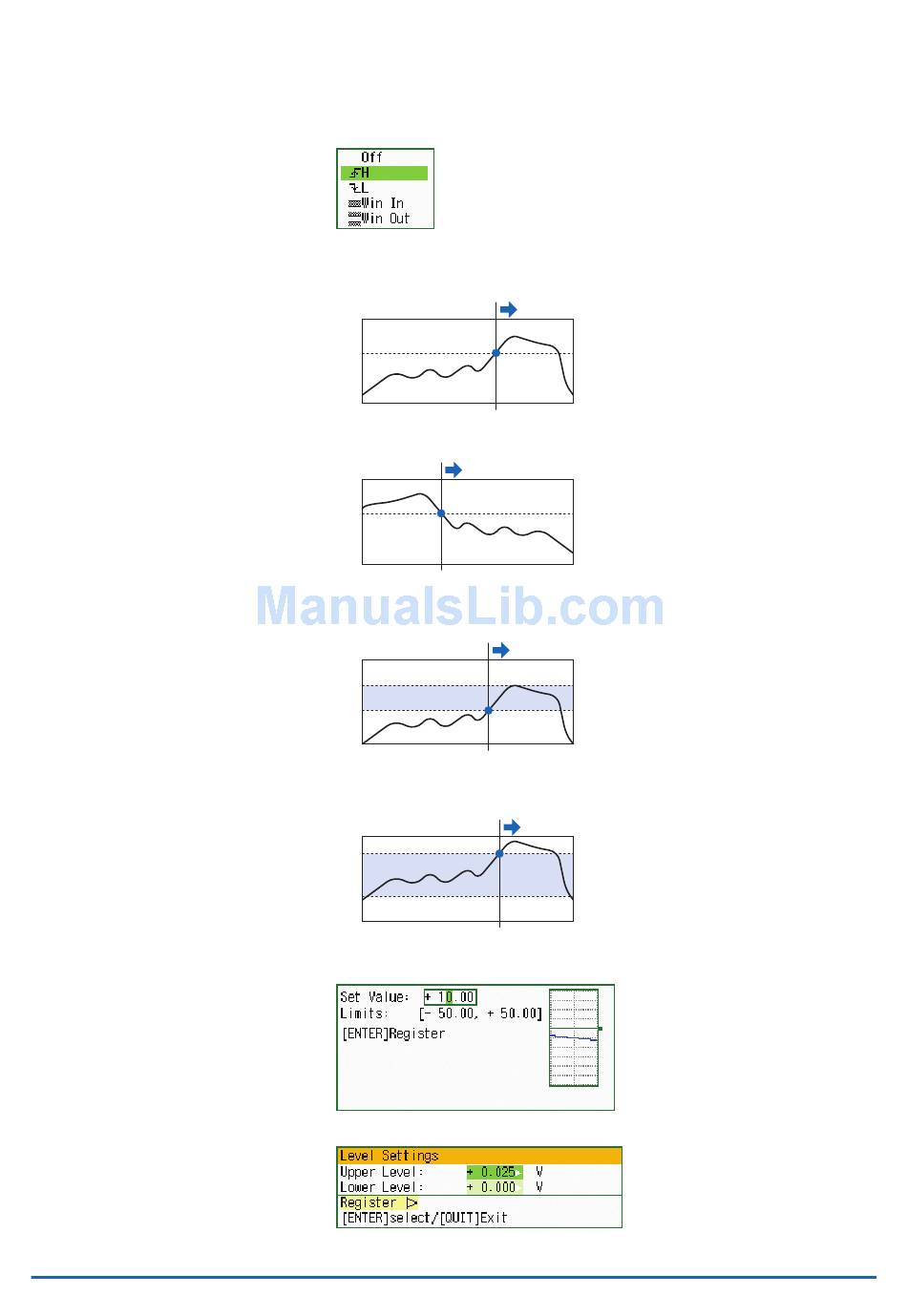

Mode ................................... Determines the alarm output condition
Lower - Level- Upper .......... Specifies the alarm level(s) for the conditions set in Mode.
Output ................................. Specifies the output channels for alarm generation (4 channels).
3-18
Off: The alarm function is disabled.
Rising: An alarm is generated when the signal input rises to (or
exceeds) the specified alarm level.
CH.1
Falling: An alarm is generated when the signal input falls to (or falls
below) the specified alarm level.
Alarm generated
CH.1
Win In: Specifies the upper and lower alarm limits for each channel.
When the signal level goes within (or is within) both limits, an
alarm is generated.
CH.1
Win Out: Specifies the upper and lower alarm limits for each channel.
When the signal level goes outside (or is outside) both limits,
an alarm is generated.
CH.1
Rising, Falling: Input a numeric value.
Win In, Win Out: Input numeric values for the upper and lower levels.
Alarm generated
Alarm generated
Alarm generated
