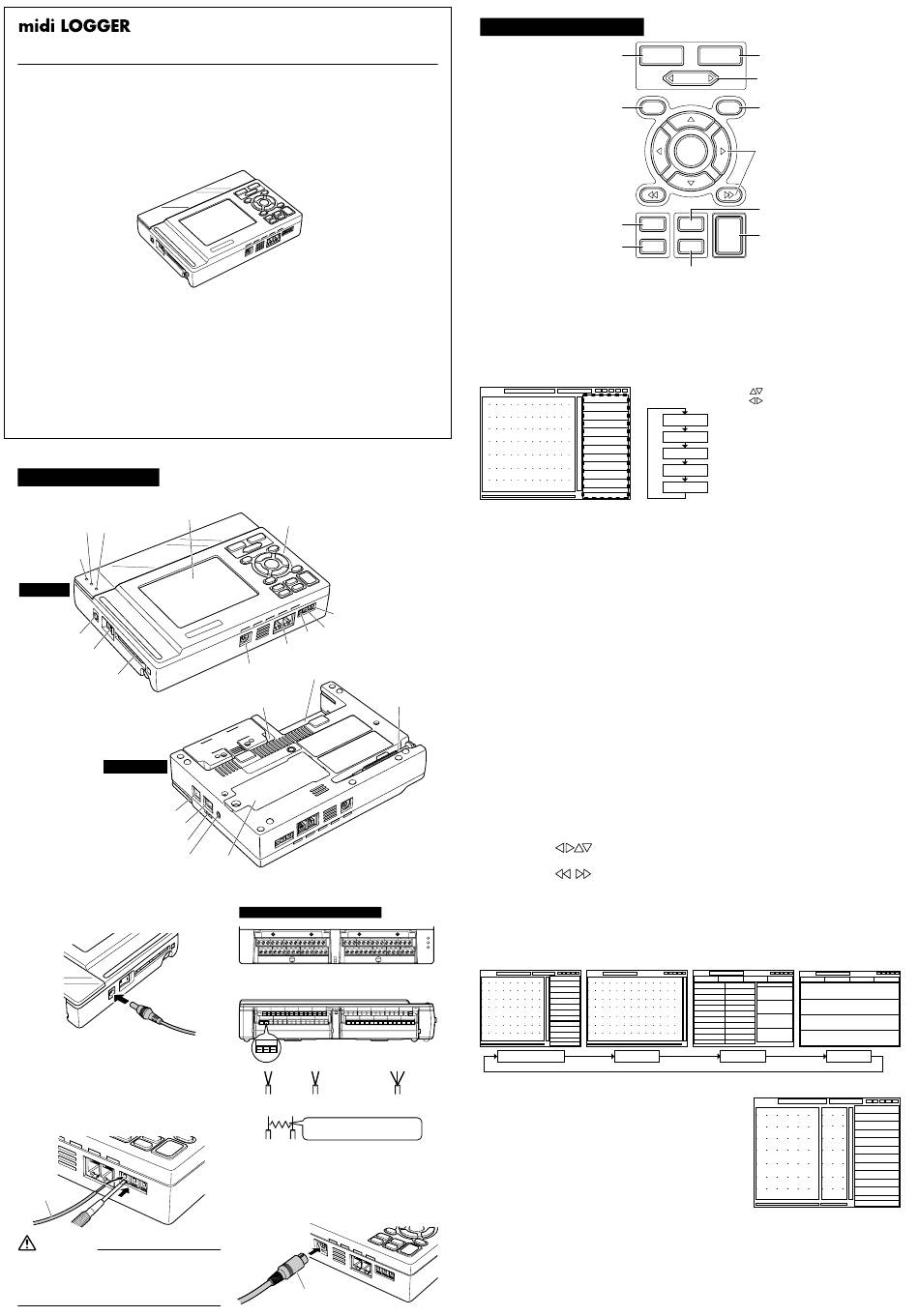

GL450 Quick Start Guide
This Quick Start Guide is an easy operation guide that provides explanations on
preparations prior to measurement, basic measurement procedures, and menu operations,
for people who want to start measurement operations right away. Please refer to the
User's Manual for more detailed explanations.
Checking the Outer Casing
After unpacking, check the GL450's outer casing before use to make sure that there are
no surface scratches or other flaws such as stains or dirt.
Checking the Accessories
• Quick Start Guide: 1
• LCD protector: 1
• Screwdriver for input terminal unit: 1
Checking the AC Line Frequency
Set the AC line frequency (50 Hz or 60 Hz) in the "OTHR" menu. Using the appropriate set-
ting is effective in eliminating line noise.
Connecting to a PC (the PC is not supplied by Graphtec)
• OS: Windows 2000/XP
• CPU: Pentium 4, 1.7 GHz or higher

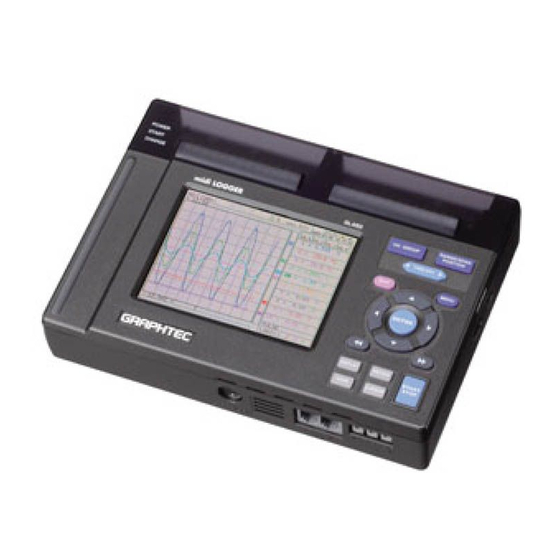

GL450 Main Unit
Part Names
Monitor
Data capture LED Battery charging LED
Power LED
Top panel
Power connector
Power switch
PCMCIA slot
Bottom panel
USB connector terminal
LAN connector terminal
Monitor control dial
Humidity sensor connector
Connecting to an AC Power Supply
Connect the output side of the AC adapter
to the connector on the GL450.
Connecting the Grounding Cable
Using the screwdriver provided as a
standard accessory, press against the
button underneath the ground terminal
while connecting the grounding cable to
the GL450. Connect the other end of the
cable to ground.
Grounding cable
CAUTION
Always connect the GND terminal and refer to
the safety precautions. The GL450 must be
grounded even when connected to other
devices and sharing a common ground level.
JUL 19, 2005 1st edition
GL450-UM-851
• CD-ROM: 1
• AC cable/AC adapter: 1 set
• 10-channel input terminal unit: 1
• Memory: At least 256 MB
Control panel keys
External trigger
Pulse input
GND
Synchronization connector terminal
Logic input/
Input terminal 2
Alarm output terminal
Screwdriver for mounting
the input terminal unit
Input terminal 1
Battery
Amp Input Terminal Layout
Terminal layout on the top part of the unit
Input terminal unit 1 Input terminal unit 2
CH6 CH7 CH8 CH9 CH10 CH6 CH7 CH8 CH9
CH1 CH2 CH3 CH4 CH5 CH1 CH2 CH3
Terminal configuration
+ -
b
+ - + - + -
Signal
source
Voltage Thermocouple Resistance temperature
detector (RTD)
+ -
For current in the 4 to 20 mA range,
apply a resistance of 250 ohms and
perform measurement in the 1 - 5 V range.
Current measurement
Connecting the Logic Alarm Cable
Connect the round connector of the logic
alarm cable (B-513, option) to the logic
input /alarm output terminal on the GL450.
Logic alarm cable (B-513)
Control Panel Keys
(1) CH GROUP key
(1) CH GROUP key
The [CH GROUP] key selects the channels in 10-channel groups. Press the key to move
to the next group of 10 channels. The number of channels varies according to the type of
input terminal unit installed.
(2) RANGE/SPAN/POSITION key
These settings can be made or changed for each channel individually, even while the
GL450 is in the 'free running' status (not capturing data) or performing measurement.
(3) TIME/DIV key
Press the [TIME/DIV] key to switch through the waveform display speeds.
(4) START/STOP key
Press the [START/STOP] key to select the START status (awaiting trigger). Press it once
again to select the STOP status (free running).
(5) QUIT (LOCAL) key
Press this key to return the display to its former settings. It is also used to display
operations within a setting menu. (If the GL450 is in Remote status, press this key to
cancel the key lock status.)
(6) MENU key
Press the [MENU] key to switch through the detailed setting menus.
AMP (Amplifier settings): This menu is used to make the Input, Range, Filter settings, etc.
ANNO (Annotation settings): This menu is used to set and display comments for each channel.
DATA (Data settings): This menu is used to make the sampling interval and calculation settings.
ALM (Alarm settings): This menu is used to make the alarm and trigger settings.
FILE (File settings): This menu is used for PCMCIA card operations.
I/F (Interface settings): This menu is used to make the USB and TCP-IP settings.
OTHR (Other settings): This menu is used to make other settings such as the date/time
and display language settings.
INFO (Information): Device information is displayed on this screen.
(7) Direction keys
Direction keys (
These keys move the cursor on the screen in the direction of the arrow.
Direction keys (
Press these keys to move the waveform displayed during a data replay operation. (If both
keys are held down simultaneously for three seconds or longer, the GL450 will enter key
lock status. To cancel the key lock status, hold down both keys for a further three seconds
or longer.)
(8) DISPLAY key
Press the [DISPLAY] key to switch through the measurement modes.
CH10
CH4 CH5
Waveform + Digital
b
(9) REVIEW key
If the [REVIEW] key is pressed during the Free Running
status (when data is not being captured), the captured
data is replayed.
If the [REVIEW] key is pressed during measurement,
past data is displayed together with the data currently
being measured in a dual-screen format.
(10) SAVE key
Press the [SAVE] key to save data, to make a copy of the screen, and to save the data
between cursors (only during a data replay operation).
(11) CURSOR key
When data is being replayed, press the [CURSOR] key to switch between Cursor A and
Cursor B.
RANGE SPAN
/
CH GROUP
POSITION
TIME DIV
/
(5) QUIT key
QUIT MENU
LOCAL
ENTER
(8) DISPLAY key
DISPLAY REVIEW
START
STOP
(10) SAVE key
SAVE CURSOR
(11) CURSOR key
• Use the [
• Use the [
MONITER Displays digital values
INPUT Changes the input type: voltage, temperature or humidity
RANGE Changes the voltage and temperature ranges
SPAN Changes the waveform display range
POSITION Changes the waveform display position
)
)
1 -0.08mV
2 -0.00mV
3 -0.12mV
4 -0.2V
5 -0.012V
6 -134C
7 -0.3C
8 +35.8C
9 +12.5C
10 -0.08mV
Waveform Calculation
(2) RANGE/SPAN/POSITION key
(3) TIME/DIV key
(6) MENU key
(7) Direction keys
(9) REVIEW key
(4) START/STOP key
] keys to select the channel.
] keys to change the setting.
CH1 -0.08mV
CH2 -0.00mV
CH7 +200.0C
CH10 +180.0C
Digital
Dual-screen replay display
