xiv. Click OK.
Figure 11-26. IAS, Import Certificate

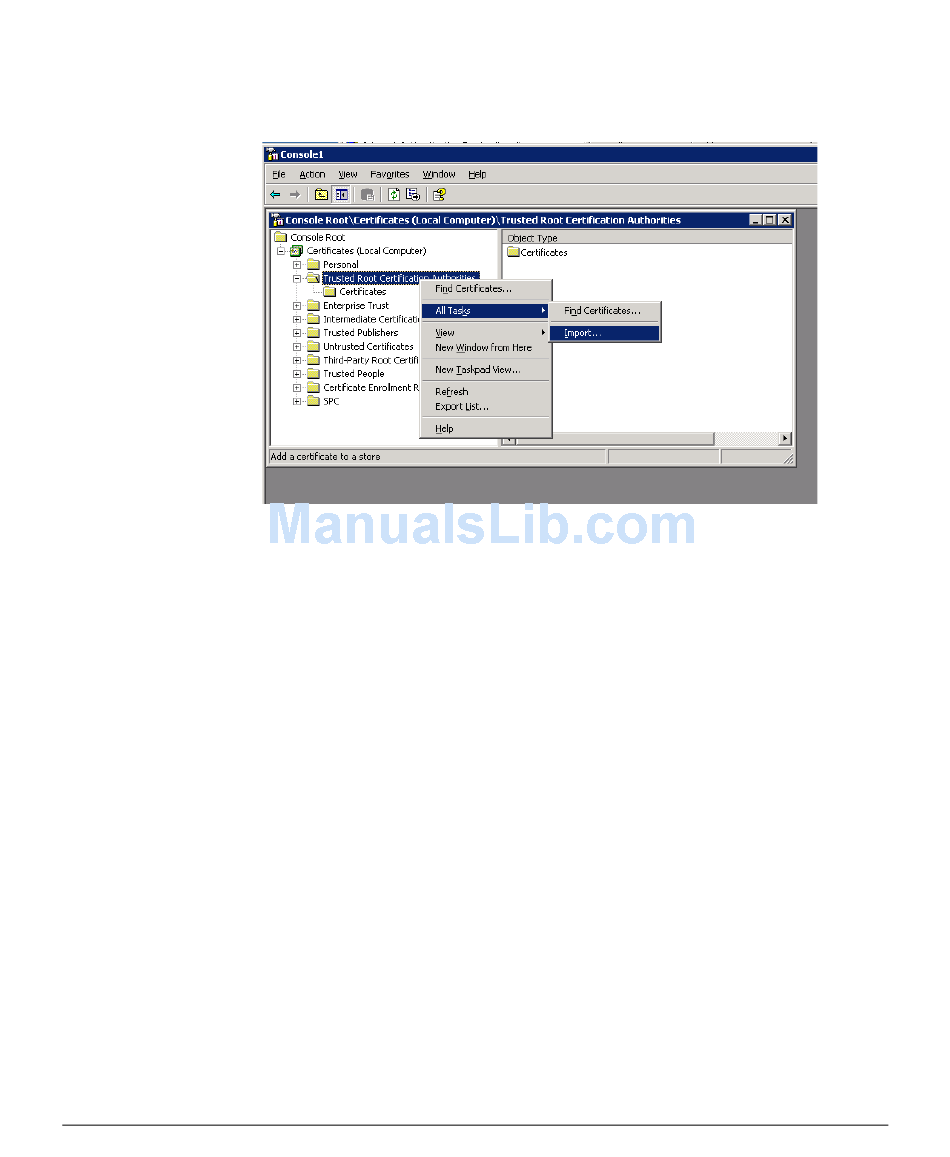

xv. Right-click on Console Root>>Certificates (Local
Computer)>>Trusted Root Certificate Authorities.
xvi. Select All tasks>>import.
xvii.Click Next.
xviii.Click Browse and choose the certificate. The NAC 800 server
certificate is located on http://www.procurve.com/nactools
xix. Click Next.
xx. Click Next.
xxi. Click Finish.
14. Configure the NAC 800-to-IAS connector –
a. Modify the INI file for your network environment.
NAC 800 returns one of postures for an endpoint attempting to
authenticate. For each posture received, a different RADIUS response
to the switch can be configured using RADIUS attributes. This
response determines into what VLAN the endpoint is placed.
Healthy – The endpoint passed all tests or no failed tests were
configured to quarantine.
Checkup – The endpoint failed a test and the action is configured to
grant temporary access.
