HP StorageWorks

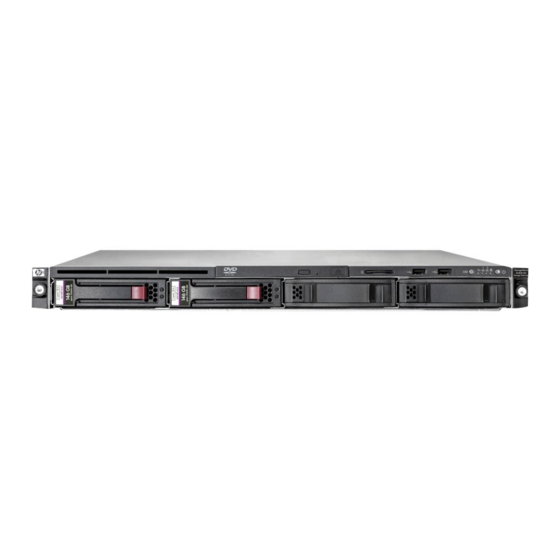

P4000 Unified NAS Gateway User Guide
Part number: AW588-10501
First edition: March 2010


Table of Contents

Summary of Contents for HP StorageWorks P4000

  • Page 1 HP StorageWorks P4000 Unified NAS Gateway User Guide Part number: AW588-10501 First edition: March 2010...
  • Page 2 U.S. Government under vendor's standard commercial license. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
  • Page 3: Table Of Contents

    Install the storage system hardware ..................... 16 Access the storage system ......................16 Power on the server and log on ....................17 Configure the storage system using the HP StorageWorks Rapid Startup Wizard ....... 18 Complete system configuration ....................19 Additional access methods ......................20 Using the remote browser method ..................
  • Page 4 Protocol planning ....................... 40 Cluster groups and resources, including file shares ................ 41 Cluster group overview ....................... 41 Node-based cluster groups ................... 41 Load balancing ......................42 File share resource planning issues ..................42 Resource planning ....................... 42 Permissions and access rights on share resources ............. 42 NFS cluster-specific issues .....................
  • Page 5 Other Windows disk and data management tools ................. 84 Additional information and references for file services ..............84 Backup ..........................84 HP StorageWorks Library and Tape Tools ................84 Antivirus ..........................85 7 Troubleshooting, servicing, and maintenance ........87 Troubleshooting the storage system ....................87 WEBES (Web Based Enterprise Services) ..................
  • Page 6 HP websites ........................89 Typographic conventions ......................90 Rack stability ..........................91 Customer self repair ........................91 HP product documentation survey ....................91 9 System recovery ................93 The System Recovery DVD ......................93 To restore a factory image ......................93 Managing disks after a restoration ....................
  • Page 7 Greek notice ........................104 Hungarian notice ......................104 Italian notice ........................104 Latvian notice ........................104 Lithuanian notice ......................105 Polish notice ........................105 Portuguese notice ......................105 Romanian notice ......................105 Slovak notice ........................106 Spanish notice ......................... 106 Swedish notice .........................
  • Page 8 P4000 Unified NAS Gateway rear panel components ..........12 P4000 Unified NAS Gateway rear panel LEDs ............13 HP StorageWorks Rapid Startup Wizard Welcome screen ..........19 P4000 Unified NAS Gateway network infrastructure ............ 23 P4000 Unified NAS Gateway connections ..............25 Private connection status ..................
  • Page 9 P4000 Unified NAS Gateway front panel LED descriptions ........... 12 P4000 Unified NAS Gateway rear panel LED descriptions ........... 13 HP Rapid Startup Wizard configuration options ............18 P4000 Unified NAS Gateway RAID configuration ............22 Sharing protocol cluster support ................40 Tasks and utilities needed for storage system configuration ...........
  • Page 11: Component Identification

    1 Component identification This chapter provides illustrations of the storage system hardware components. NOTE: The keyboard, mouse, and monitor are used only for the direct attached method of accessing the server. They are not provided with your storage system. P4000 Unified NAS Gateway hardware components The following figures show components and LEDs located on the front and rear panels of the P4000 Unified NAS Gateway.
  • Page 12: P4000 Unified Nas Gateway Front Panel Leds

    Figure 2 P4000 Unified NAS Gateway front panel LEDs Table 1 P4000 Unified NAS Gateway front panel LED descriptions Item / Description Status Green = System health is normal. Amber = System health is degraded. 1. Internal health LED Red = System health is critical. Off = System health is normal (when in standby mode).
  • Page 13: P4000 Unified Nas Gateway Rear Panel Leds

    Power cord connector Mouse connector 10/100/1000 NIC 1 connector/shared iLO 2 management port 10/100/1000 NIC 2 connector Serial connector Low profile PCIe slot (occupied by Smart Array P212 controller) Full-sized PCIe slot (occupied by NC364T 4-port NIC) Dedicated iLO 2 management port (this port is optional and must be purchased separately) Video connector USB connectors (2) Keyboard connector...
  • Page 14 Component identification...
  • Page 15: Installing And Configuring The Server

    2 Installing and configuring the server Setup overview The HP StorageWorks P4000 Unified NAS Gateway comes preinstalled with the Microsoft Windows® Storage Server™ 2008 Enterprise x64 Edition operating system with Microsoft iSCSI Software Target and a Microsoft Cluster Service (MSCS) license included.
  • Page 16: Locate And Record The Serial Number

    Inside the storage system shipping box Install the storage system hardware Install the rail kit by following the HP Rack Rail Kit installation instructions. If connecting to the storage system using the direct attach method, connect the following cables to the back panel of the storage system in the following sequence: keyboard, mouse, network cable, monitor cable, and power cable.
  • Page 17: Power On The Server And Log On

    Using the default user information provided on the iLO 2 Network Settings tag, log on to the storage system. For detailed instructions on using iLO 2, see the HP Integrated Lights Out 2 user guide. Power on the server and log on Power on the server after installing the hardware and connecting the cables.
  • Page 18: Configure The Storage System Using The Hp Storageworks Rapid Startup Wizard

    After establishing the new Administrator password, be sure to remember it and record it in a safe place if needed. HP has no way of accessing the system if the new password is lost. After logging in for the first time, the Welcome screen of the HP StorageWorks Rapid Startup Wizard opens.
  • Page 19: Complete System Configuration

    • Using Ethernet NIC teaming (optional)—Select models are equipped with an HP or Broadcom NIC Teaming utility. The utility allows administrators to configure and monitor Ethernet network interface controller (NIC) teams in a Windows-based operating system. These teams provide options for increasing fault tolerance and throughput.
  • Page 20: Additional Access Methods

    • Installing third-party software applications such as an antivirus application. • Registering the server — To register the server, refer to the HP Registration website (http://re- gister.hp.com). Additional access methods After the storage system installation process is complete and the system's IP address has been assigned, you can then additionally use the remote browser, Remote Desktop, and Telnet Server methods to access the storage system.
  • Page 21: Using The Remote Desktop Method

    Under System Settings Configuration, click Telnet. Select Enable Telnet access to this server and then click OK. Default storage settings HP StorageWorks P4000 Unified NAS Gateway is preconfigured with default storage settings. This section provides additional details about the preconfigured storage. Physical configuration The logical disks reside on physical drives as shown in the table below.
  • Page 22: Default Boot Sequence

    • Physical Drives 0–1 NOTE: In the HP Array Configuration Utility (ACU), logical disks are labeled 1 and 2. In Microsoft Disk Manager, logical disks are displayed as 0 and 1. For HP Smart Array configuration information, see http://h18004.www1.hp.com/products/servers/proliantstorage/arraycontrollers/. If the operating system has a failure that might result from corrupt system files, a corrupt registry, or the system hangs during boot, see “System recovery...
  • Page 23: Cluster Configuration

    P4000 SAN Solution. The P4000 SAN Solution provides iSCSI block services while the P4000 Unified NAS Gateway provides data services using CIFS/NFS protocols. The P4000 Unified NAS Gateway also supports optional data protection services with tools such as HP Data Protector, Data Protection Manager (DPM), VMWare, and VMware Consolidated Backup (VCB).
  • Page 24: Creating And Configuring The Cluster

    HA solution by purchasing and installing an additional 1–node P4000 Unified NAS Gateway. After installing the P4000 Unified NAS Gateway nodes as detailed in the HP StorageWorks P4000 Unified NAS Gateway Installation Instructions, the system components should be racked, cabled, powered on, and you should be logged in to the systems with Administrative privileges.
  • Page 25: P4000 Unified Nas Gateway Connections

    IP addresses; the public NIC adapters can be set with a static IP address, or may be automatically configured using DHCP. If a DHCP server is available on your network, HP recommends allowing DHCP to automatically configure the public-facing network connections; this is the default setting.
  • Page 26: Private Connection Status

    Identify the public and private connections: Right-click one of the connections and select Status. The connection status of the private connections will indicate Local in the IPv4 Connectivity field; the connection status of the public-facing connections will indicate Internet in this field. Figure 8 Private connection status Figure 9 Public connection status After identifying the private and public connections, click Close.
  • Page 27: Join Both Storage Servers To The Domain

    To assign static IP addresses to a private connection: Right-click the private connection and select Properties. Clear all items on the General tab except for HP Network Configuration Utility, Internet Protocol Version 4 (TCP/IPv4), and Internet Protocol Version 6 (TCP/IPv).
  • Page 28: Computer Name Tab Of System Properties

    On the Computer Name tab, click Change. Figure 10 Computer Name tab of System Properties On the Computer Name/Domain Changes dialog box, in the Computer name field, enter a unique name for the server. Select the Domain radio button and type the name of the domain on which the cluster will reside and then click OK.
  • Page 29: Initialize And Format The Storage Disks

    Initialize and format the storage disks The storage referenced in this section must be created and configured on the P4000 SAN. See the HP StorageWorks P4000 Configuration Guide for more information about connecting the SAN volumes to the Windows Storage Server instance.
  • Page 30: Validate The Configuration

    Complete the New Simple Volume Wizard with the following settings: • Accept the default assigned partition size • Assign drive letter Q • Formatted as NTFS • Label the volume Witness • Check Perform a quick format Repeat the preceding steps to initialize and format the remaining data disks, assigning properties such as volume size and labels as appropriate for the intended use of the storage.
  • Page 31: Select Servers To Be Validated For The Cluster

    Click Next. On the Select Servers or a Cluster page, enter and add the names of Server 1 and Server 2 and then click Next. Figure 15 Select servers to be validated for the cluster Select Run all tests and then click Next. P4000 Unified NAS Gateway User Guide...
  • Page 32: Create The Cluster

    Review the details of the Confirmation page and then click Next. Figure 16 Validating the cluster configuration After the validation tests have run, click View Report to review the validation test results. Use the information provided in the Failover Cluster Validation Report to troubleshoot issues that would prevent the successful creation of the cluster.
  • Page 33: Add Services Or Applications To The Cluster

    On the Access Point for Administering the Cluster page, type a unique name for the cluster and then click Next. Figure 17 Entering cluster name Review the information on the Confirmation page and then click Next. After the cluster is successfully created, the Summary page lists basic cluster information. Click View Report to view a detailed report.
  • Page 34: Select Service Or Application

    Select File Server from the list and then click Next. Figure 18 Select Service or Application Follow the instructions in the wizard to specify the following details: • A name for the clustered file server • The storage volume or volumes that the clustered file server should use NOTE: The clustered file server name is the name of the server that users should use to access their file content.
  • Page 35: Verify That The Cluster Is Operational

    Verify that the cluster is operational In order to test cluster functionality, move the clustered file server from one server to the other server. When services or applications are moved, they should fail over to the other node in the cluster. •...
  • Page 36 Cluster configuration...
  • Page 37: Cluster Administration

    4 Cluster administration One important feature of HP StorageWorks P4000 Unified NAS Gateways is that they can operate as a single node or as a cluster. This chapter discusses cluster installation and management issues. Cluster overview Up to eight server nodes can be connected to each other and deployed as a no single point of failure (NSPOF) cluster.
  • Page 38: Cluster Groups

    • FTP file share resources • iSCSI resources Cluster groups Cluster resources are placed together in cluster groups. Groups are the basic unit of failover between nodes. Resources do not fail over individually; they fail over with the group in which they are contained. Virtual servers A virtual server is a cluster group that consists of a static IP Address resource and a Network Name resource.
  • Page 39: Cluster Planning

    Cluster planning Successful cluster planning includes: • Storage planning • Network planning • Protocol planning Storage planning For clustering, a basic disk must be designated for the cluster and configured as the Quorum disk. Additional basic disks are presented to each cluster node for data storage as physical disk resources. The physical disk resources are required for the basic disks to successfully work in a cluster environment, protecting it from simultaneous access from each node.
  • Page 40: Protocol Planning

    The client must wait until the initial node is brought back online to access the share. HP recommends placing cluster aware and non cluster aware protocols on different file shares. Table 5 Sharing protocol cluster support...
  • Page 41: Cluster Groups And Resources, Including File Shares

    NOTE: AppleTalk is not supported on clustered disk resources. AppleTalk requires local memory for volume indexing. On failover events, the memory map is lost and data corruption can occur. Cluster groups and resources, including file shares The Failover Cluster Management tool (Start > Administrative Tools > Failover Cluster Management) provides complete online help for all cluster administration activities.
  • Page 42: Load Balancing

    Load balancing The creation of separate cluster groups for each virtual server provides more flexibility in balancing the processing load on the cluster between the two nodes. Each cluster group can be assigned to a cluster node using the preferred owner parameter. For example, if there are two cluster groups, the cluster could be set up to have the first cluster group owned by Node A and the second cluster group owned by Node B.
  • Page 43: Nfs Cluster-Specific Issues

    NFS cluster-specific issues • Back up user and group mappings. To avoid loss of complex advanced mappings in the case of a system failure, back up the mappings whenever the mappings have been edited or new mappings have been added. •...
  • Page 44: Creating Physical Disk Resources

    Shadow copies in a cluster HP recommends that the cache file be placed on a separate disk from the original data. In this case, a physical disk resource for the cache file disk should be created in the same cluster group as the intended Shadow Copy resource and the volume for which snapshots will be enabled.
  • Page 45: Extend A Lun In A Cluster

    For additional information associated with extending a LUN in a cluster, see the P4000 SAN documentation at http://www.hp.com/go/p4000. MSNFS administration on a server cluster The Microsoft Services for Network File System (NFS) online help provides server cluster information for the following topics: •...
  • Page 46: Creating A Cluster Printer Spooler

    Creating a cluster printer spooler Printer spoolers should be created in a separate group dedicated to this purpose for ease of management. For each printer spooler, a physical resource is required to instantiate the print spooler resource. In some cases, dedicated physical resources are not available and hence sharing of the physical resource among other members of the group is acceptable, remembering that all members of a group are managed as a unit.
  • Page 47: Restarting One Cluster Node

    excluded from the possible owners list to prevent a resource from coming online on a particular node. Lastly the preferred owners list can be ordered, to provide an ordered list of failover nodes. Using these tools, the failover of resources can be controlled with in a multinode cluster to provide a controlled balanced failover methodology that balances the increased work load.
  • Page 48: Powering Up The Cluster

    The power down process is divided into two main steps: Shutting down the cluster nodes Removing power from the cluster nodes The sequence of these steps is critical. The devices must be shut down before the storage subsystem. Improperly shutting down the nodes and the storage subsystem causes corruption and loss of data. CAUTION: Before powering down the cluster nodes, follow the proper shutdown procedure as previously illustrated.
  • Page 49: System Administration Tools

    5 System administration tools HP StorageWorks P4000 Unified NAS Gateways include several administration tools to simplify storage system management tasks. Microsoft Windows Storage Server 2008 administration tools Microsoft® Windows® Storage Server 2008 operating systems provide a user interface for initial server configuration, unified storage system management, simplified setup and management of storage and shared folders, and support for Microsoft iSCSI Software Target.
  • Page 50: Microsoft Services For Network File System

    Windows user mapping. The Services for Network File System feature now requires that users utilize an existing UNM server or utilize Active Directory to map UNIX users to Windows users. HP P4000 Unified NAS Gateway systems utilize the Active Directory Lightweight Directory Services (ADLDS) role to eliminate these requirements for standalone servers.
  • Page 51: Configuring Adlds

    Configuring ADLDS The following examples describe the format of a password and a group file. Password and group files can be created or copied from the NFS client system. Password file syntax Each line of a standard UNIX password file follows this format: user:password:UID:GID:comment:home directory:command shell All fields are required, but the only fields that are used are the user, UID, and GID fields.
  • Page 52: Single Instance Storage

    Verifying script execution After the script is successfully executed, the users in the password file are listed as users on the storage system and the groups are added. You can verify this with Server Manager: Click Start, right click Computer, and then select Manage. Expand the Configuration and Local Users and Groups nodes.
  • Page 53: Print Management

    If you need to access data that is stored on a SIS volume, which might be required for backup and recovery operations, you must either run or have installed Single Instance Storage Filter on your computer. Backup and recovery by using SIS has the following requirements: •...
  • Page 54 System administration tools...
  • Page 55: File Server Management

    File services management Information about the storage system in a SAN environment is provided in the HP StorageWorks SAN Manuals page located on the HP web site at www.hp.com/go/SDGManuals. P4000 Unified NAS Gateway User Guide...
  • Page 56: Configuring Data Storage

    Configuring data storage The HP StorageWorks P4000 Unified NAS Gateway is configured only for the operating system. The administrator must configure data storage for the storage system. Configuring additional data storage involves creating arrays, logical disks, and volumes. Table 6 shows the general task areas to be performed as well as the utilities needed to configure storage for an HP Smart Array-based storage system.
  • Page 57: Array Configuration Utility

    Select Start > Programs > HP Management Tools > Array Configuration Utility. If the Execution Mode for ACU is set to Remote Mode, log on to the HP System Management Homepage. The default user name is administrator and the default password is hpinvent.
  • Page 58: Disk Management Utility

    ERASE or local C: volume. These are reserved volumes and must be maintained as they exist. • HP does not recommend spanning array controllers with dynamic volumes. The use of software RAID-based dynamic volumes is not recommended. Use the array controller instead; it is more ef- ficient.
  • Page 59: Adding Storage

    NOTE: To limit the size of a folder or share, see “Quota management” on page 83 . Configure the volumes on the server to perform the following tasks: • Prevent further disk space use and log an event when a user exceeds a specified disk space limit. •...
  • Page 60: Expanding Storage

    For more information about RAID levels, see the Smart Array Controller User Guide, or the document titled Assessing RAID ADG vs. RAID 5 vs. RAID 1+0. Both are available at the Smart Array controller web page or at http://h18000.www1.hp.com/products/servers/proliantstorage/arraycontrollers/ documentation.html. Extend volumes using Disk Management The Disk Management snap-in provides management of hard disks, volumes or partitions.
  • Page 61: Volume Shadow Copies

    • You cannot extend striped volumes, mirrored volumes, or RAID 5 volumes. For more information, see the Disk Management online help. Volume shadow copies NOTE: Select storage systems can be deployed in a clustered as well as a non-clustered configuration. This chapter discusses using shadow copies in a non-clustered environment.
  • Page 62: Identifying The Volume

    Identifying the volume Shadow copies are taken for a complete volume, but not for a specific directory. Shadow copies work best when the server stores user files, such as documents, spreadsheets, presentations, graphics, or database files. NOTE: Shadow copies should not be used to provide access to previous versions of application or e-mail databases.
  • Page 63: Identifying The Storage Area

    The minimum amount of storage space that can be specified is 350 megabytes (MB). The default storage size is 10 percent of the source volume (the volume being copied). If the shadow copies are stored on a separate volume, change the default to reflect the space available on the storage volume instead of the source volume.
  • Page 64: Mounted Drives

    If defragmenting volumes on which shadow copies are enabled, use a cluster (or allocation unit) size of 16 KB or larger. Using this allocation unit size reduces the number of copy outs occurring on the snapshot. Otherwise, the number of changes caused by the defragmentation process can cause shadow copies to be deleted faster than expected.
  • Page 65: The Shadow Copy Cache File

    Figure 19 System administrator view of Shadow Copies for Shared Folders The shadow copy cache file The default shadow copy settings allocate 10 percent of the source volume being copied (with a minimum of 350 MB), and store the shadow copies on the same volume as the original volume. (See Figure 20).
  • Page 66: Enabling And Creating Shadow Copies

    Figure 21 Shadow copies stored on a separate volume The main advantage to storing shadow copies on a separate volume is ease of management and performance. Shadow copies on a source volume must be continually monitored and can consume space designated for file sharing. Setting the limit too high takes up valuable storage space. Setting the limit too low can cause shadow copies to be purged too soon, or not created at all.
  • Page 67: Viewing A List Of Shadow Copies

    NOTE: After the first shadow copy is created, it cannot be relocated. Relocate the cache file by altering the cache file location under Properties prior to enabling shadow copy. See “Viewing shadow copy properties” on page 67. Viewing a list of shadow copies To view a list of shadow copies on a volume: Access Disk Management.
  • Page 68: Redirecting Shadow Copies To An Alternate Volume

    CAUTION: Use caution when reducing the size limit for all shadow copies. When the size is set to less than the total size currently used for all shadow copies, enough shadow copies are deleted to reduce the total size to the new limit. A shadow copy cannot be recovered after it has been deleted. Redirecting shadow copies to an alternate volume IMPORTANT: Shadow copies must be initially disabled on the volume before redirecting to an alternate volume.
  • Page 69: Managing Shadow Copies From The Storage System Desktop

    Managing shadow copies from the storage system desktop To access shadow copies from the storage system desktop: The storage system desktop can be accessed by using Remote Desktop to manage shadow copies. On the storage system desktop, double-click My Computer. Right-click the volume name, and select Properties.
  • Page 70: Smb Shadow Copies

    NOTE: Shadow Copies for Shared Folders clients are not available for HTTP, FTP, AppleTalk, or NetWare shares. Consequently, users of these protocols cannot use Shadow Copies for Shared Folders to independently retrieve previous versions of their files. However, administrators can take advantage of Shadow Copies for Shared Folders to restore files for these users.
  • Page 71: Nfs Shadow Copies

    Figure 23 Client GUI When users view a network folder hosted on the storage system for which shadow copies are enabled, old versions (prior to the snapshot) of a file or directory are available. Viewing the properties of the file or folder presents users with the folder or file history—a list of read-only, point-in-time copies of the file or folder contents that users can then open and explore like any other file or folder.
  • Page 72: Recovery Of Files Or Folders

    .@GMT-2003.04.29-04:00:00 Access to NFS shadow copy pseudo-subdirectories is governed by normal access-control mechanisms using the permissions stored in the file system. Users can access only those shadow copies to which they have read access at the time the shadow copy is taken. To prevent users from modifying shadow copies, all pseudo-subdirectories are marked read-only, regardless of the user's ownership or access rights, or the permissions set on the original files.
  • Page 73: Recovering An Overwritten Or Corrupted File

    Figure 24 Recovering a deleted file or folder Recovering an overwritten or corrupted file Recovering an overwritten or corrupted file is easier than recovering a deleted file because the file itself can be right-clicked instead of the folder. To recover an overwritten or corrupted file: Right-click the overwritten or corrupted file, and then click Properties.
  • Page 74: Backup And Shadow Copies

    Backup and shadow copies Shadow copies are only available on the network via the client application, and only at a file or folder level as opposed to the entire volume. Hence, the standard backup associated with a volume backup will not work to back up the previous versions of the file system. To answer this particular issue, shadow copies are available for backup in two situations.
  • Page 75: Folder Management

    NOTE: Select servers can be deployed in a clustered or non-clustered configuration. This section discusses share setup for a non-clustered deployment. Folder management Volumes and folders on any system are used to organize data. Regardless of system size, systematic structuring and naming conventions of volumes and folders eases the administrative burden. Moving from volumes to folders to shares increases the level of granularity of the types of data stored in the unit and the level of security access allowed.
  • Page 76: Properties Dialog Box, Security Tab

    Click Properties, and then click the Security tab. Figure 25 Properties dialog box, Security tab Several options are available on the Security tab: • To add users and groups to the permissions list, click Add. Follow the dialog box instructions. •...
  • Page 77: Advanced Security Settings Dialog Box, Permissions Tab

    To modify ownership of files, or to modify individual file access level permissions, click Advanced. Figure 26 illustrates the properties available on the Advanced Security Settings dialog box. Figure 26 Advanced Security settings dialog box, Permissions tab Other functionality available in the Advanced Security Settings dialog box is illustrated in Figure and includes: •...
  • Page 78: User Or Group Permission Entry Dialog Box

    Enable or disable permissions by selecting the Allow box to enable permission or the Deny box to disable permission. If neither box is selected, permission is automatically disabled. Figure 27 illustrates the Edit screen and some of the permissions. Figure 27 User or group Permission Entry dialog box Another area of the Advanced Security Settings is the Auditing tab.
  • Page 79: Advanced Security Settings Dialog Box, Auditing Tab

    Figure 28 Advanced Security Settings dialog box, Auditing tab Click Add to display the Select User or Group dialog box. Figure 29 Select User or Group dialog box NOTE: Click Advanced to search for users or groups. Select the user or group. P4000 Unified NAS Gateway User Guide...
  • Page 80: Auditing Entry Dialog Box For Folder Name Ntfs Test

    Click OK. The Auditing Entry dialog box is displayed. Figure 30 Auditing Entry dialog box for folder name NTFS Test Select the desired Successful and Failed audits for the user or group. Click OK. NOTE: Auditing must be enabled to configure this information. Use the local Computer Policy Editor to configure the audit policy on the storage system.
  • Page 81: Share Management

    Figure 31 Advanced Security Settings dialog box, Owner tab The current owner of the file or folder is listed at the top of the screen. To take ownership: Click the appropriate user or group in the Change owner to list. If it is also necessary to take ownership of subfolders and files, enable the Replace owner on subcontainers and objects box.
  • Page 82: Defining Access Control Lists

    The content of shares should be carefully chosen to avoid two common pitfalls: either having too many shares of a very specific nature, or of having very few shares of a generic nature. For example, shares for general use are easier to set up in the beginning, but can cause problems later. Frequently, a better approach is to create separate shares with a specific purpose or group of users in mind.
  • Page 83: Managing Shares

    • Standard shares are shares that do not end in a $ character. Standard shares are listed whenever a CIFS client browses for available shares on a CIFS server. The storage system supports both administrative and standard CIFS shares. To create an administrative share, end the share name with the $ character when setting up the share.
  • Page 84: File Screening Management

    Additional information and references for file services Backup HP recommends that you back up the print server configuration whenever a new printer is added to the network and the print server configuration is modified. HP StorageWorks Library and Tape Tools HP StorageWorks Library and Tape Tools (L&TT) provides functionality for firmware downloads,...
  • Page 85: Antivirus

    For more information, and to download the utility, see the StorageWorks L&TT web site at http:// h18006.www1.hp.com/products/storageworks/ltt. Antivirus The server should be secured by installing the appropriate antivirus software.anything P4000 Unified NAS Gateway User Guide...
