HP StorageWorks X9300 Quick Start Manual

HP StorageWorks X9300
Network Storage Gateway
Quick Start Guide
© Copyright 2009 Hewlett-Packard Development Company, L.P.
First edition: November 2009
The information in this document is subject to change without notice.
Printed in Puerto Rico
www.hp.com
*AW539-96001*
System components
System components include:
Optional HP StorageWorks X9300 Network Storage System Base
Rack
Keyboard, video, and mouse (KVM)
HP ProCurve 2910-24G management switch
HP StorageWorks X9300 file serving node
HP StorageWorks X9300 Management Server management console
(one per cluster required)
Storage connectivity (one or more options chosen by the customer):
Dual port 10 GbE NIC (iSCSI)
Quad port 1 GbE NIC (iSCSI)
Dual port FC 8-GB HBA (Fibre Channel)
SAS HBA
Storage array support
iSCSI—HP LeftHand P4000, Dell EqualLogic
Fibre Channel—HP EVA, HP MSA2000, EMC CLARiion
SAS—HP MSA
Front-end connectivity (chosen by the customer)
10 GbE network
1 GbE network
Infiniband network
Pre-installed software
Red Hat 5.3 Linux operating system
HP StorageWorks X9000 File Serving Software
Integrated Lights-Out 2 (iLO 2) remote management software
HP StorageWorks X9300 file serving
node component identification

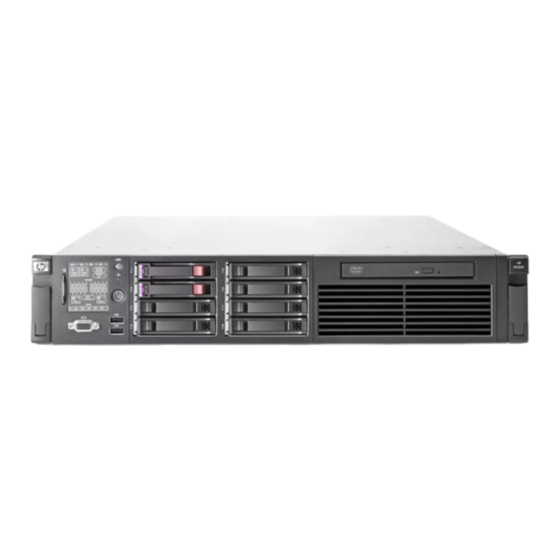

Front view
Item Description
1 Quick-release levers (2)
2 HP Systems Insight Manager display
3 Hard drive bays
Item Description
4 SATA optical drive bay
5 Video connector
6 USB connectors (2)
Rear view
Item Description
1 PCI slot 5
2 PCI slot 6
See the following table for
3 PCI slot 4
a description of PCI slot as-
4 PCI slot 2
signments.
5 PCI slot 3
6 PCI slot 1
7 Power supply 2 (PS2)
8 Power supply 1 (PS1)
9 USB connectors (2)
10 Video connector
11 NIC 1 connector
12 NIC 2 connector
13 Mouse connector
14 Keyboard connector
15 Serial connector
16 iLO 2 connector
17 NIC 3 connector
18 NIC 4 connector
Gateway
PCIe card
server
opt1: 82Q FC HBA
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
1Gb NC364T Quad 1Gb NIC
empty
empty
empty
empty
opt1: 82Q FC HBA
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
empty
10Gb
empty
NC522SFP dual 10Gb NIC
empty
empty
opt1: 82Q FC HBA
opt2: SAS HBA
opt3: NC364T Quad 1Gb NIC
opt4: NC522SFP dual 10Gb NIC
Infini-
empty
band
HP IB 4X QDR PCI-e G2 Dual Port HCA
empty
empty
empty
PCI slot
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
