Monitoring and Analyzing Switch Operation
Status and Counters Data

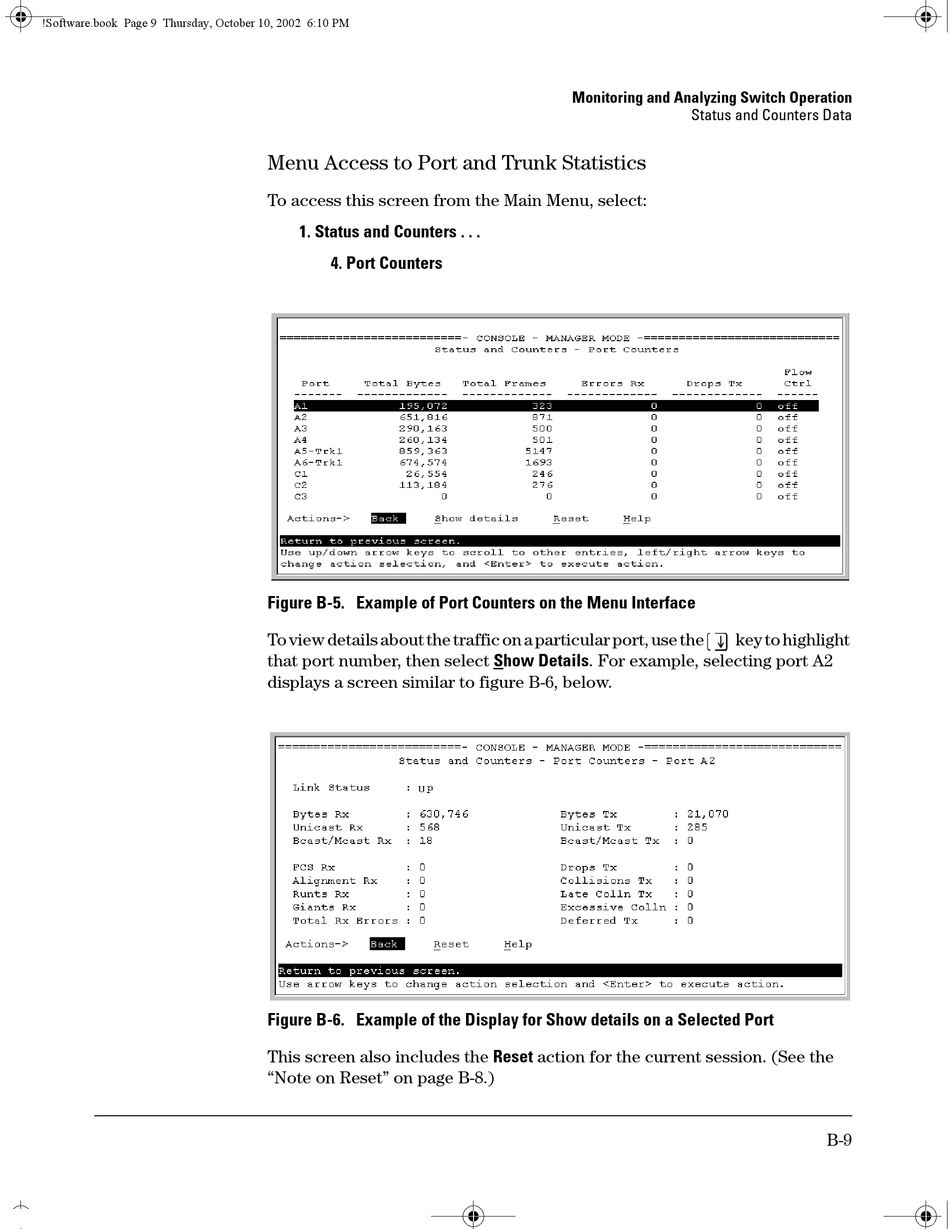

Menu Access to Port and Trunk Statistics

To access this screen from the Main Menu, select:
1. Status and Counters . . .
4. Port Counters
Figure B-5. Example of Port Counters on the Menu Interface
To view details about the traffic on a particular port, use the [ v] key to highlight
that port number, then select Show Details. For example, selecting port A2
displays a screen similar to figure B-6, below.
Figure B-6. Example of the Display for Show details on a Selected Port
This screen also includes the Reset action for the current session. (See the
"Note on Reset" on page B-8.)
B-9
