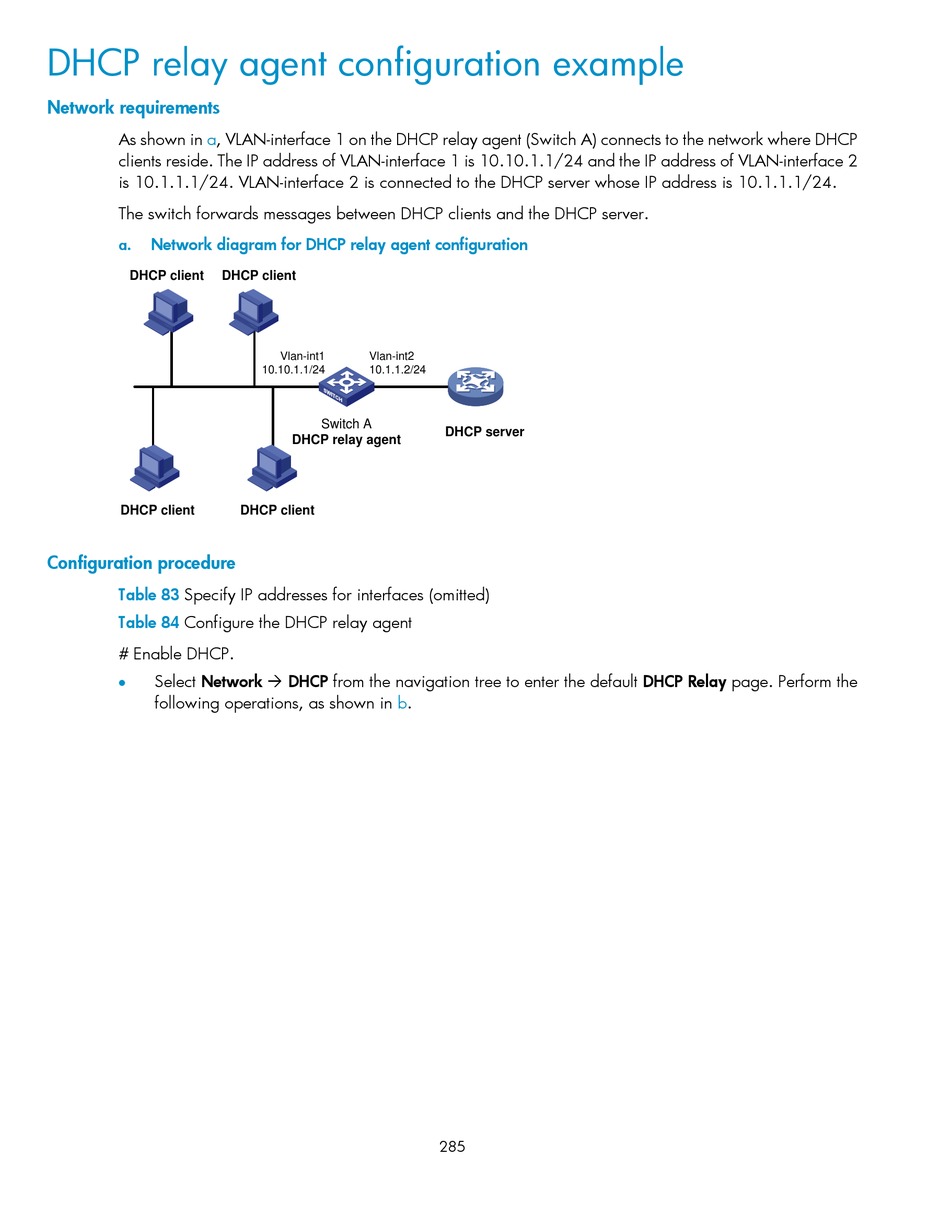

DHCP relay agent configuration example

Network requirements
As shown in a, VLAN-interface 1 on the DHCP relay agent (Switch A) connects to the network where DHCP
clients reside. The IP address of VLAN-interface 1 is 10.10.1.1/24 and the IP address of VLAN-interface 2
is 10.1.1.1/24. VLAN-interface 2 is connected to the DHCP server whose IP address is 10.1.1.1/24.
The switch forwards messages between DHCP clients and the DHCP server.
Network diagram for DHCP relay agent configuration
a.
DHCP client
DHCP client
Configuration procedure
Table 83 Specify IP addresses for interfaces (omitted)
Table 84 Configure the DHCP relay agent
# Enable DHCP.
Select Network  DHCP from the navigation tree to enter the default DHCP Relay page. Perform the

following operations, as shown in b.
DHCP client
Vlan-int1 Vlan-int2
10.10.1.1/24 10.1.1.2/24
Switch A
DHCP relay agent
DHCP client
DHCP server
