Removing And Installing The Processor - EUROCOM P150HM Series Service Manual

Disassembly

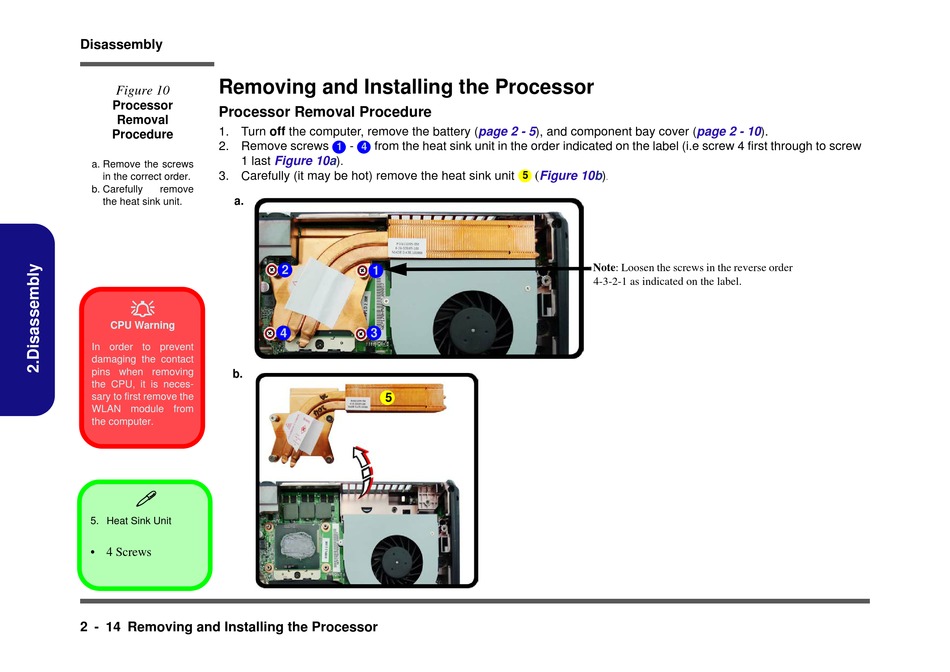

Removing and Installing the Processor

Figure 10
Processor
Processor Removal Procedure
Removal
1. Turn off the computer, remove the battery
Procedure
2. Remove screws
1 last
a. Remove the screws
3. Carefully (it may be hot) remove the heat sink unit
in the correct order.
b. Carefully remove
a.
the heat sink unit.

CPU Warning
In order to prevent
damaging the contact
pins when removing
b.
the CPU, it is neces-
sary to first remove the
WLAN module from
the computer.

5. Heat Sink Unit
• 4 Screws
2 - 14 Removing and Installing the Processor
- from the heat sink unit in the order indicated on the label (i.e screw 4 first through to screw
1 4
Figure 10a)
.
2
1
4 3
5
(page 2 - 5), and component bay cover
( Figure 10b)
5
.
Note: Loosen the screws in the reverse order
4-3-2-1 as indicated on the label.
(page 2 - 10).
