Basic Operation
VSG101043 and earlier software: Set values 0 to 3.
VSG101113 software: Set values 4 to 7.
Parameter F1-10 sets the PG speed deviation detection level as a percentage of the maximum output
frequency. Parameter F1-11 sets the length of time that the difference between the motor speed and
reference speed must exceed the PG speed deviation detection level in order to generate a PG speed
deviation fault (DEV).
Parameter Display name p y
number
F1-10 PG Deviate Level
F1-11 PG Deviate Time
Note A: Advanced
---: Not applicable.

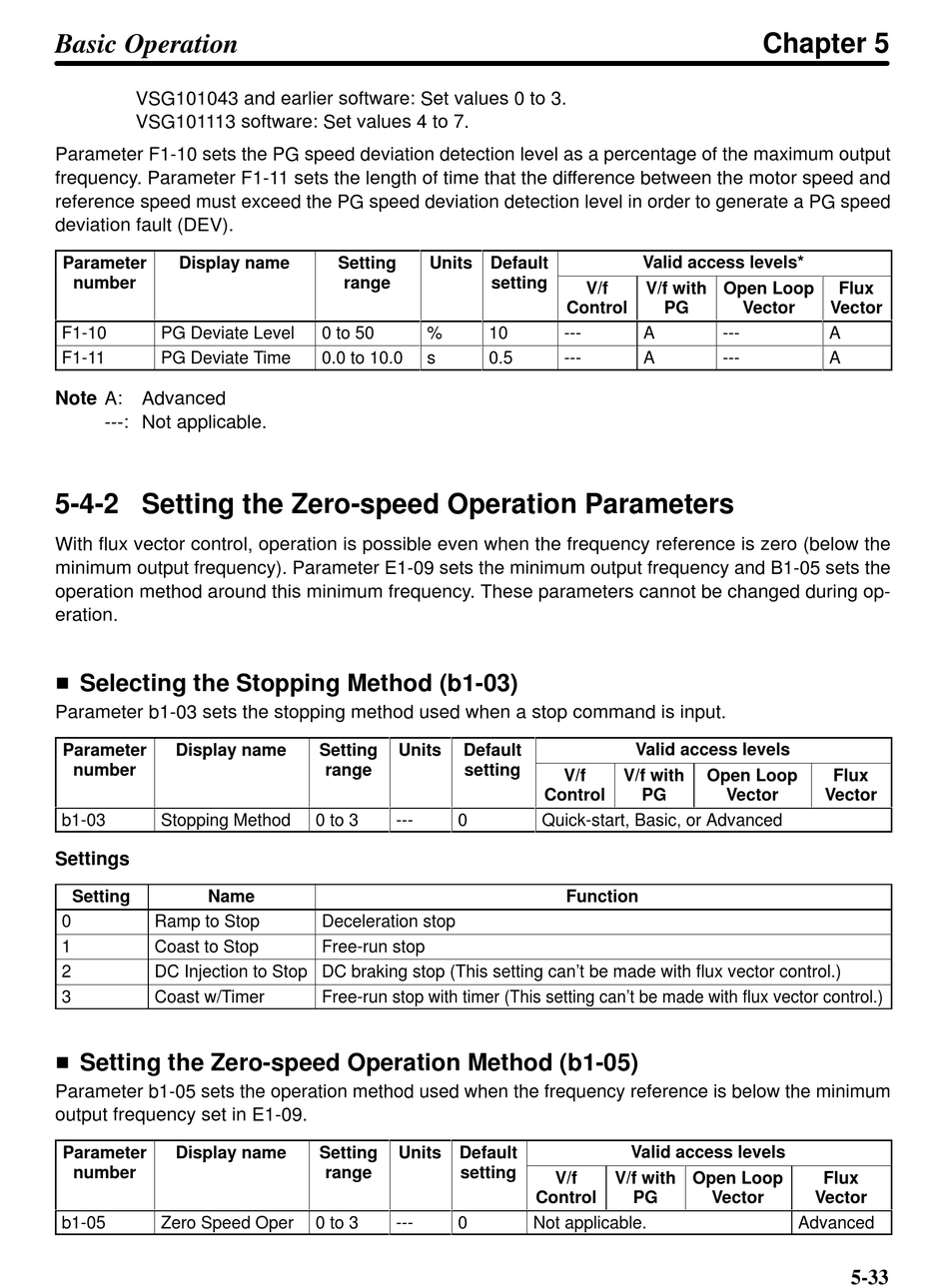

5-4-2 Setting the Zero-speed Operation Parameters

With flux vector control, operation is possible even when the frequency reference is zero (below the
minimum output frequency). Parameter E1-09 sets the minimum output frequency and B1-05 sets the
operation method around this minimum frequency. These parameters cannot be changed during op-
eration.
H Selecting the Stopping Method (b1-03)
Parameter b1-03 sets the stopping method used when a stop command is input.
Parameter Display name p y
number
b1-03 Stopping Method
Settings
Setting Name
0 Ramp to Stop
1 Coast to Stop
2 DC Injection to Stop DC braking stop (This setting can't be made with flux vector control.)
3 Coast w/Timer
H Setting the Zero-speed Operation Method (b1-05)
Parameter b1-05 sets the operation method used when the frequency reference is below the minimum
output frequency set in E1-09.
Parameter Display name p y
number
b1-05 Zero Speed Oper
Setting g Units Default
range setting
0 to 50 % 10
0.0 to 10.0 s 0.5
Setting g Units Default
range setting
0 to 3 --- 0
Deceleration stop
Free-run stop
Free-run stop with timer (This setting can't be made with flux vector control.)
Setting g Units Default
range setting
0 to 3 --- 0
Valid access levels*
V/f V/f with
Control PG
--- A
--- A
Valid access levels
V/f V/f with Open Loop
Control PG
Quick-start, Basic, or Advanced
Function
Valid access levels
V/f V/f with Open Loop
Control PG Vector
Not applicable.
Chapter 5
Open Loop Flux
Vector Vector
--- A
--- A
Flux
Vector Vector
Flux
Vector
Advanced
5-33
