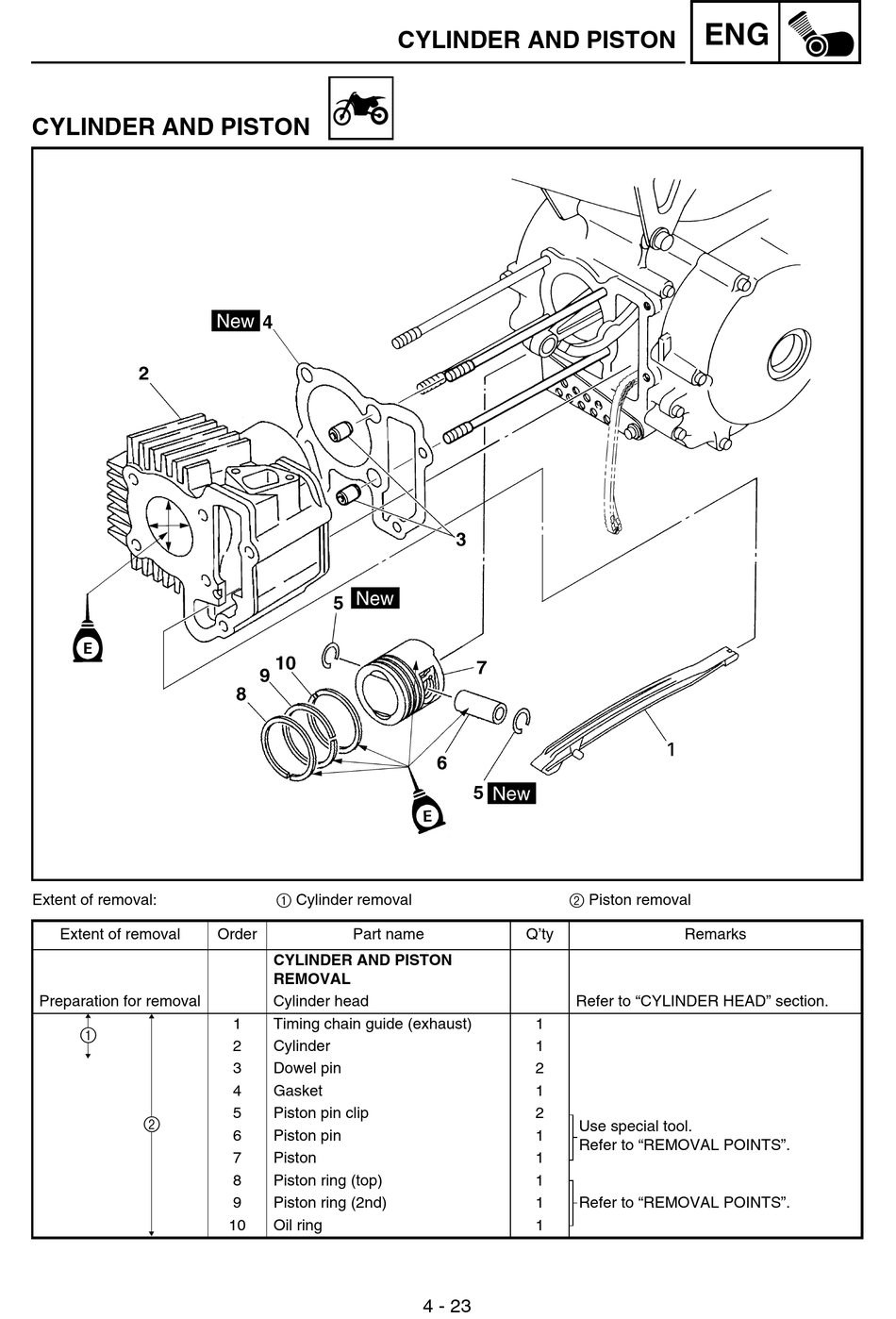

CYLINDER AND PISTON

Extent of removal:
Extent of removal
Preparation for removal
1
2
1 Cylinder removal
Order Part name
CYLINDER AND PISTON
REMOVAL
Cylinder head
1 Timing chain guide (exhaust)
2 Cylinder
3 Dowel pin
4 Gasket
5 Piston pin clip
6 Piston pin
7 Piston
8 Piston ring (top)
9 Piston ring (2nd)
10 Oil ring
CYLINDER AND PISTON
Q'ty
1
1
2
1
2
1
1
1
1
1
4 - 23
ENG
2 Piston removal
Remarks
Refer to "CYLINDER HEAD" section.
Use special tool.
Refer to "REMOVAL POINTS".
Refer to "REMOVAL POINTS".
