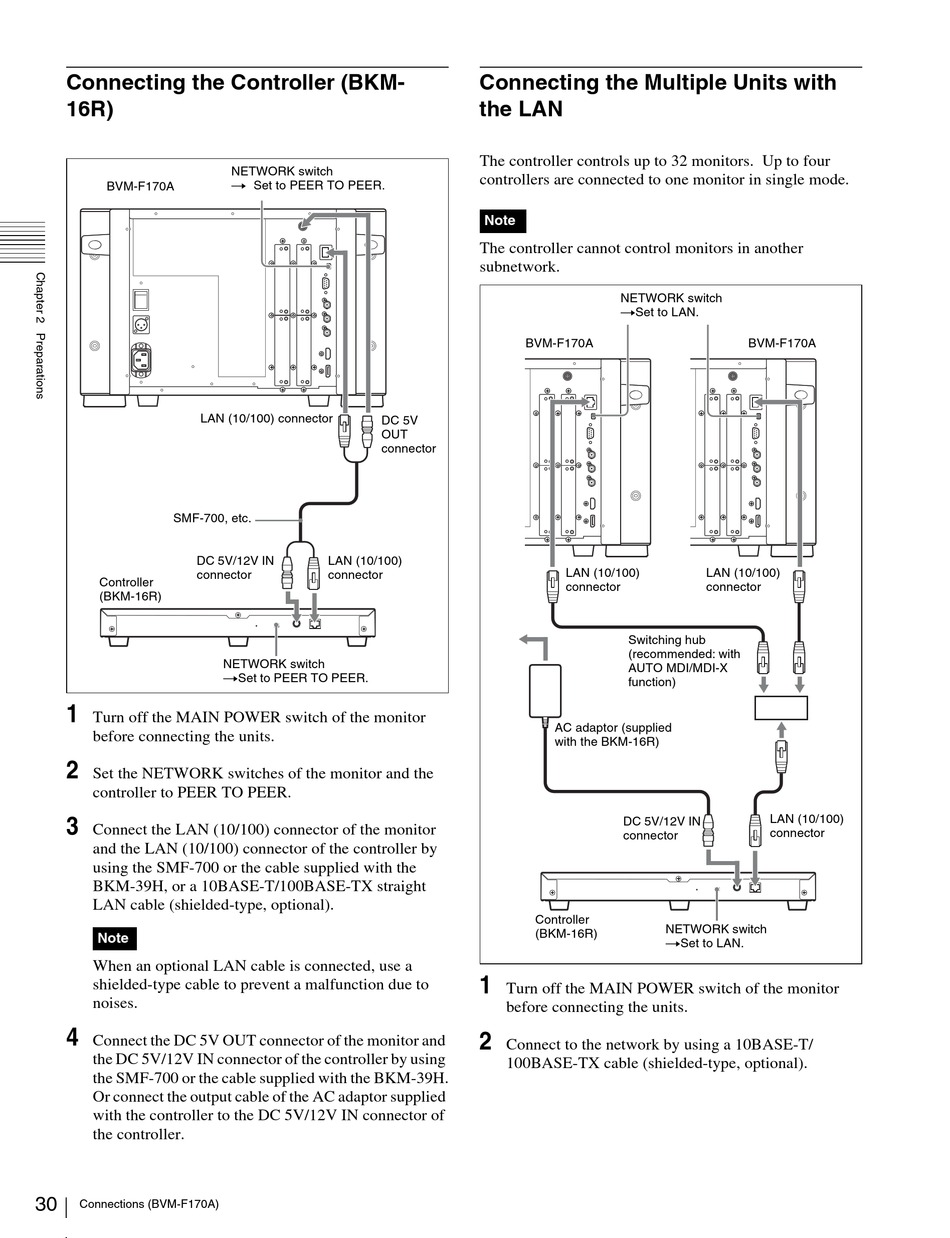

Connecting the Controller (BKM-
16R)
BVM-F170A
LAN (10/100) connector
SMF-700, etc.
DC 5V/12V IN
connector
Controller
(BKM-16R)
1
Turn off the MAIN POWER switch of the monitor
before connecting the units.
2
Set the NETWORK switches of the monitor and the
controller to PEER TO PEER.
3
Connect the LAN (10/100) connector of the monitor
and the LAN (10/100) connector of the controller by
using the SMF-700 or the cable supplied with the
BKM-39H, or a 10BASE-T/100BASE-TX straight
LAN cable (shielded-type, optional).
Note
When an optional LAN cable is connected, use a
shielded-type cable to prevent a malfunction due to
noises.
4
Connect the DC 5V OUT connector of the monitor and
the DC 5V/12V IN connector of the controller by using
the SMF-700 or the cable supplied with the BKM-39H.
Or connect the output cable of the AC adaptor supplied
with the controller to the DC 5V/12V IN connector of
the controller.
30
Connections (BVM-F170A)
NETWORK switch
t Set to PEER TO PEER.
DC 5V
OUT
connector
LAN (10/100)
connector
NETWORK switch
tSet to PEER TO PEER.
Connecting the Multiple Units with
the LAN
The controller controls up to 32 monitors. Up to four
controllers are connected to one monitor in single mode.
Note
The controller cannot control monitors in another
subnetwork.
NETWORK switch
tSet to LAN.
BVM-F170A
LAN (10/100)
connector
Switching hub
(recommended: with
AUTO MDI/MDI-X
function)
AC adaptor (supplied
with the BKM-16R)
DC 5V/12V IN
connector
Controller
(BKM-16R)
1
Turn off the MAIN POWER switch of the monitor
before connecting the units.
2
Connect to the network by using a 10BASE-T/
100BASE-TX cable (shielded-type, optional).
BVM-F170A
LAN (10/100)
connector
LAN (10/100)
connector
NETWORK switch
tSet to LAN.
