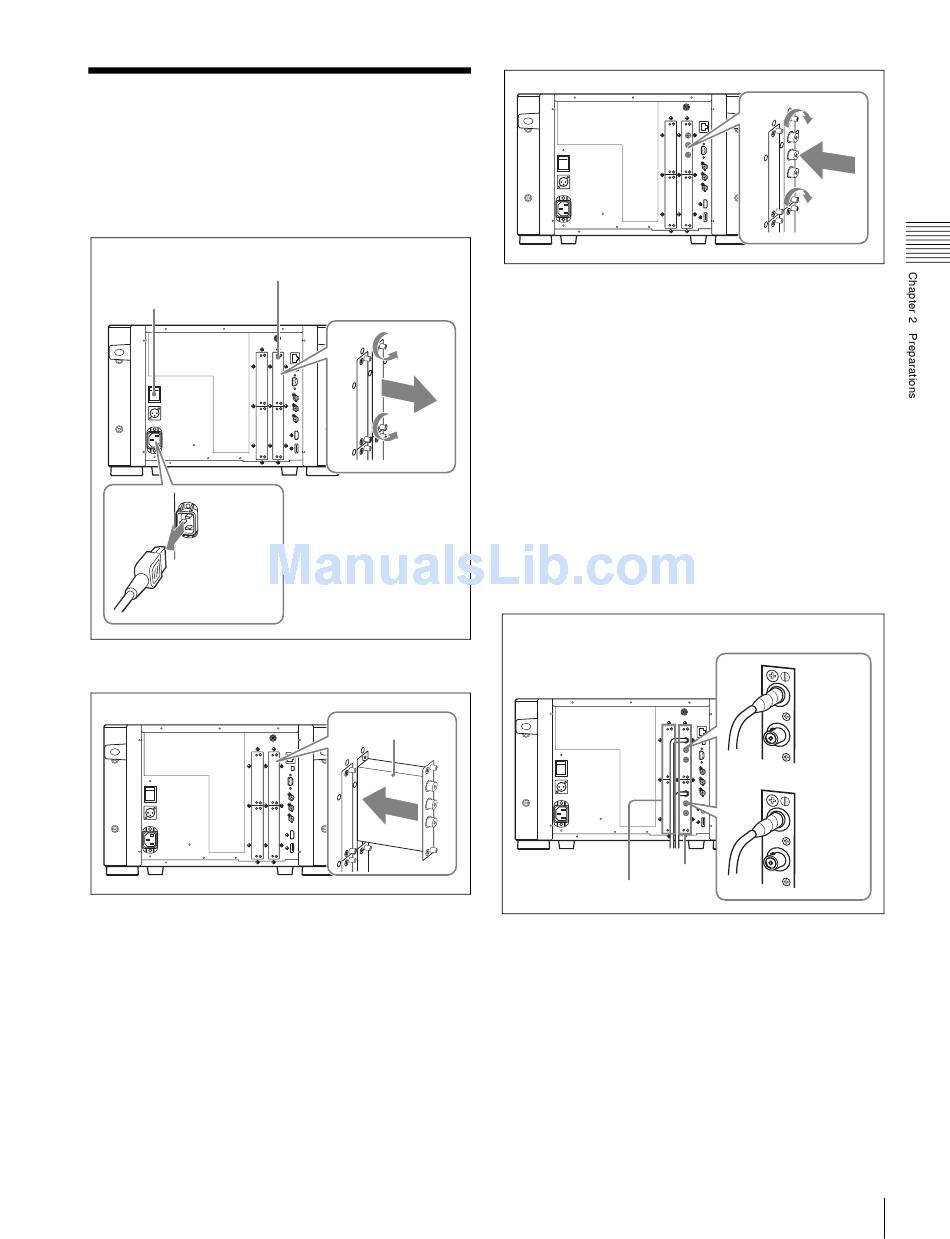

Installing an Input
Adaptor (BVM-F170A)
1
Loosen two screws and remove the cover of an input
option port on the rear panel of the monitor.
Make sure the MAIN
POWER switch is turned
off, and disconnect the AC
power cord.
2
Insert the adaptor facing the board as shown below.
3
Push the adaptor in until it is firmly fit into the
connector inside the monitor, then tighten the two
screws to secure the adaptor.
Cover of an input
option port
Board
For connecting Dual-link HD-SDI signals
Two BKM-243HS or BKM-244CC input adaptors or one
BKM-250TG input adaptor is required. When the BKM-
243HS or BKM-244CC adaptors are used, install the input
adaptors in OPTION 1 and 2 option ports, or OPTION 3
and 4 option ports. The BKM-243HS or BKM-244CC
cannot be used with the BKM-250TG for Dual-link
operation.
To connect the cable
When the BKM-243HS or BKM-244CC adaptors are
used, install the Link A signal to OPTION 1 or 3, and the
Link B signal to OPTION 2 or 4.
Connect the cable to the same input number (both INPUT 1
or both INPUT 2) of the input adaptors installed in
OPTION 1 and 2 option ports, or OPTION 3 and 4 option
ports.
Example of Dual-link cable connection
OPTION 1
and 2
OPTION 3 and 4
When the BKM-250TG is used, install the Link A signal
to INPUT 1, and the Link B signal to INPUT 2.

Installing an Input Adaptor (BVM-F170A)

INPUT 1
INPUT 2
INPUT 1
INPUT 2
25
