Menu

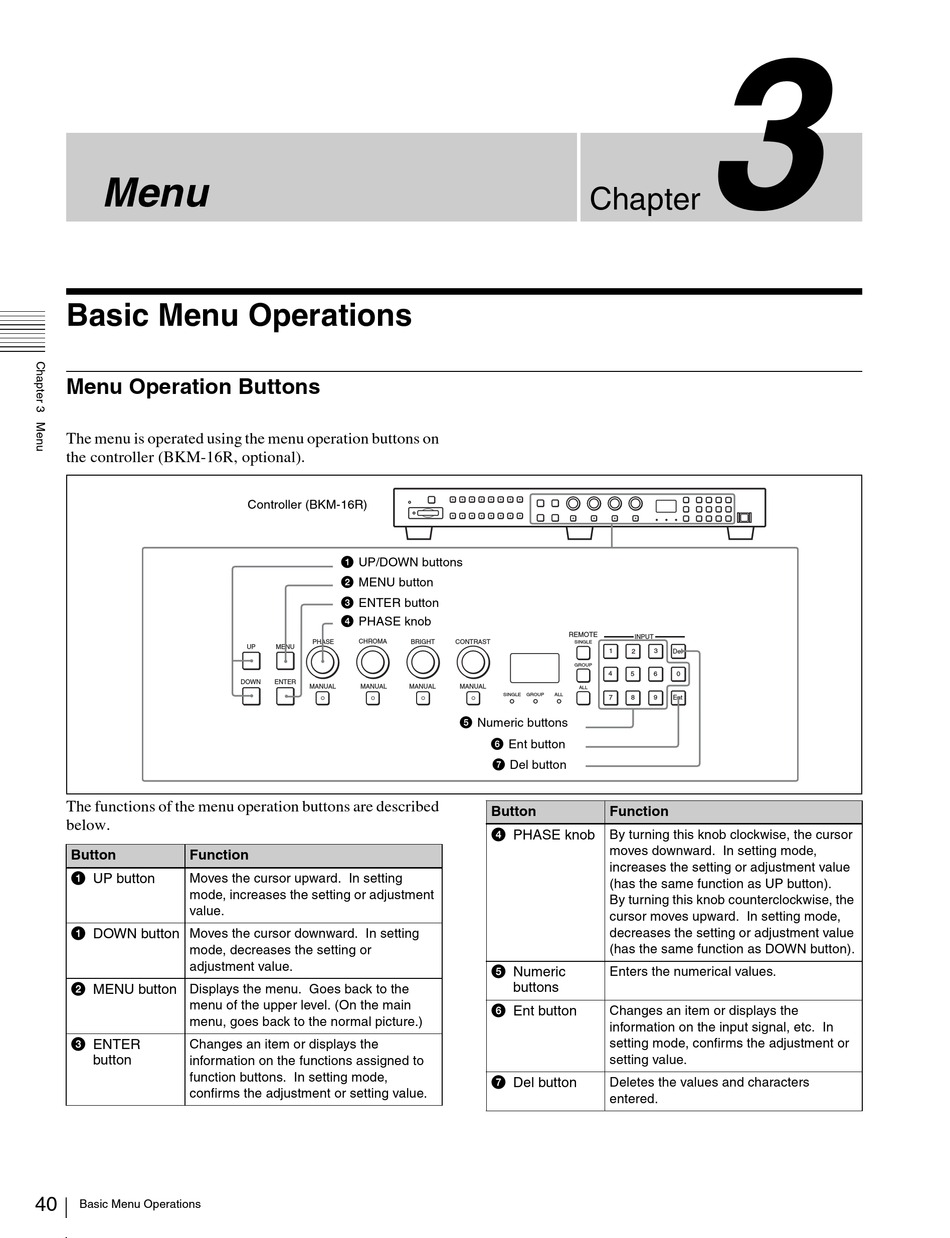

Basic Menu Operations

Menu Operation Buttons

The menu is operated using the menu operation buttons on
the controller (BKM-16R, optional).
The functions of the menu operation buttons are described
below.
Button
Function
1 UP button
Moves the cursor upward. In setting
mode, increases the setting or adjustment
value.
1 DOWN button
Moves the cursor downward. In setting
mode, decreases the setting or
adjustment value.
2 MENU button
Displays the menu. Goes back to the
menu of the upper level. (On the main
menu, goes back to the normal picture.)
3 ENTER
Changes an item or displays the
button
information on the functions assigned to
function buttons. In setting mode,
confirms the adjustment or setting value.
40
Basic Menu Operations
Controller (BKM-16R)
1 UP/DOWN buttons
2 MENU button
3 ENTER button
4 PHASE knob
CHROMA
PHASE
BRIGHT
UP
MENU
DOWN
ENTER
MANUAL
MANUAL
MANUAL
Chapter
REMOTE
INPUT
CONTRAST
SINGLE
1
2
GROUP
4
5
MANUAL
ALL
SINGLE
GROUP
ALL
7
8
5 Numeric buttons
6 Ent button
7 Del button
Button
Function
4 PHASE knob
By turning this knob clockwise, the cursor
moves downward. In setting mode,
increases the setting or adjustment value
(has the same function as UP button).
By turning this knob counterclockwise, the
cursor moves upward. In setting mode,
decreases the setting or adjustment value
(has the same function as DOWN button).
5 Numeric
Enters the numerical values.
buttons
6 Ent button
Changes an item or displays the
information on the input signal, etc. In
setting mode, confirms the adjustment or
setting value.
7 Del button
Deletes the values and characters
entered.
3
3
Del
6
0
9
Ent
