Viewing Drive Information

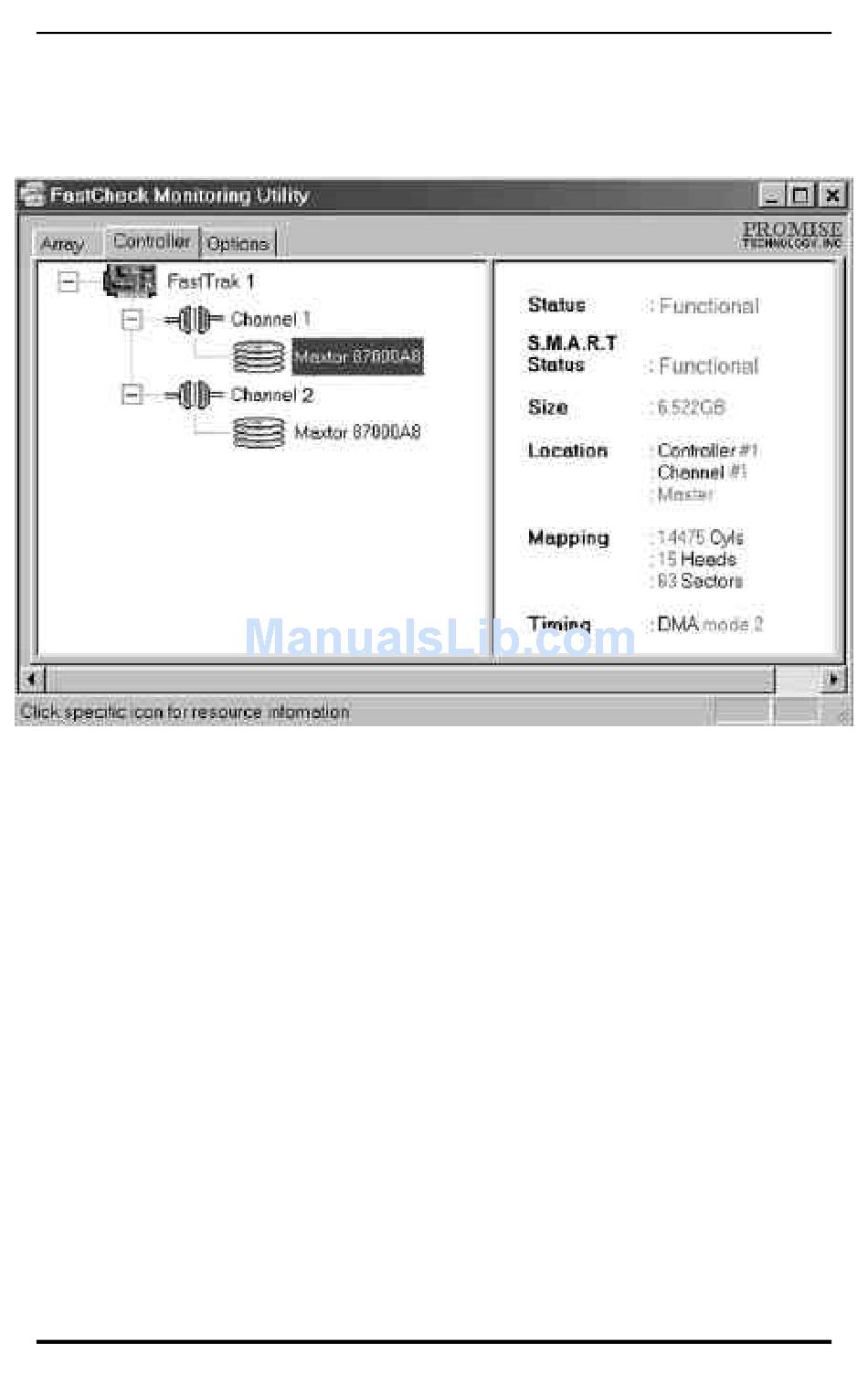

Left-clicking on a given Drive icon or ID in the left pane, will show similar information
categories as the Array Window Drive Information in the right pane.
Status: (also shown under the Array Window) can be Functional, Critical, or
Offline. The meanings are shown below.
Functional: Means the drive is working normally .
Critical: A problem has been detected in the drive and the drive taken offline
as part of a mirroring array. Mirrored arrays will continue to function
without the drive. Fix/replace the drive that has failed, then restore data
from a backup source.
Offline: Drives that are NOT identified as "bad" may b e taken offline if part of
a Striping or Spanning array containing a "bad" drive. These drives do
NOT need to be replaced, however.
S.M.A.R.T. Status: Indicates whether attached hard drive implements Self-
Monitoring Analysis & Reporting Technology to predict drive failure
Size: Indicates capacity of individual drive.
Location: Shows physical location of drive. Indicates on which IDE channel (1
or 2), and whether drive is Master or Slave on cable. This allows user to
identify drives for removal/replacement.
Mapping: Indicates physical parameters of drive (cylinders, heads, sectors).
