Using The FastCheck™ Monitoring Utility
You can monitor the operating status of all arrays and drives configured on the
FastTrak100 TX/LP series controllers using the supplied FastCheck monitoring utility
for Windows-based operating systems. FastCheck generates visual and audible
messages alerting you of possible problems with the disk array or controller.
FastCheck visually identifies the physical location of attached drives on the
FastTrak100 by IDE channel and setting (Master/Slave). It also displays which drives
are included as part of individual arrays. Administrators can customize FastCheck to
maintain operating logs and event notification, set Password access to the utility, and
schedule maintenance on Mirrored (RAID 1) or a Striped/Mirrored (RAID 0/1) arrays.

Installing FastCheck

1. From the Start Button on the Windows Taskbar, choose Run.
2. Insert Promise FastCheck Utility Diskette.

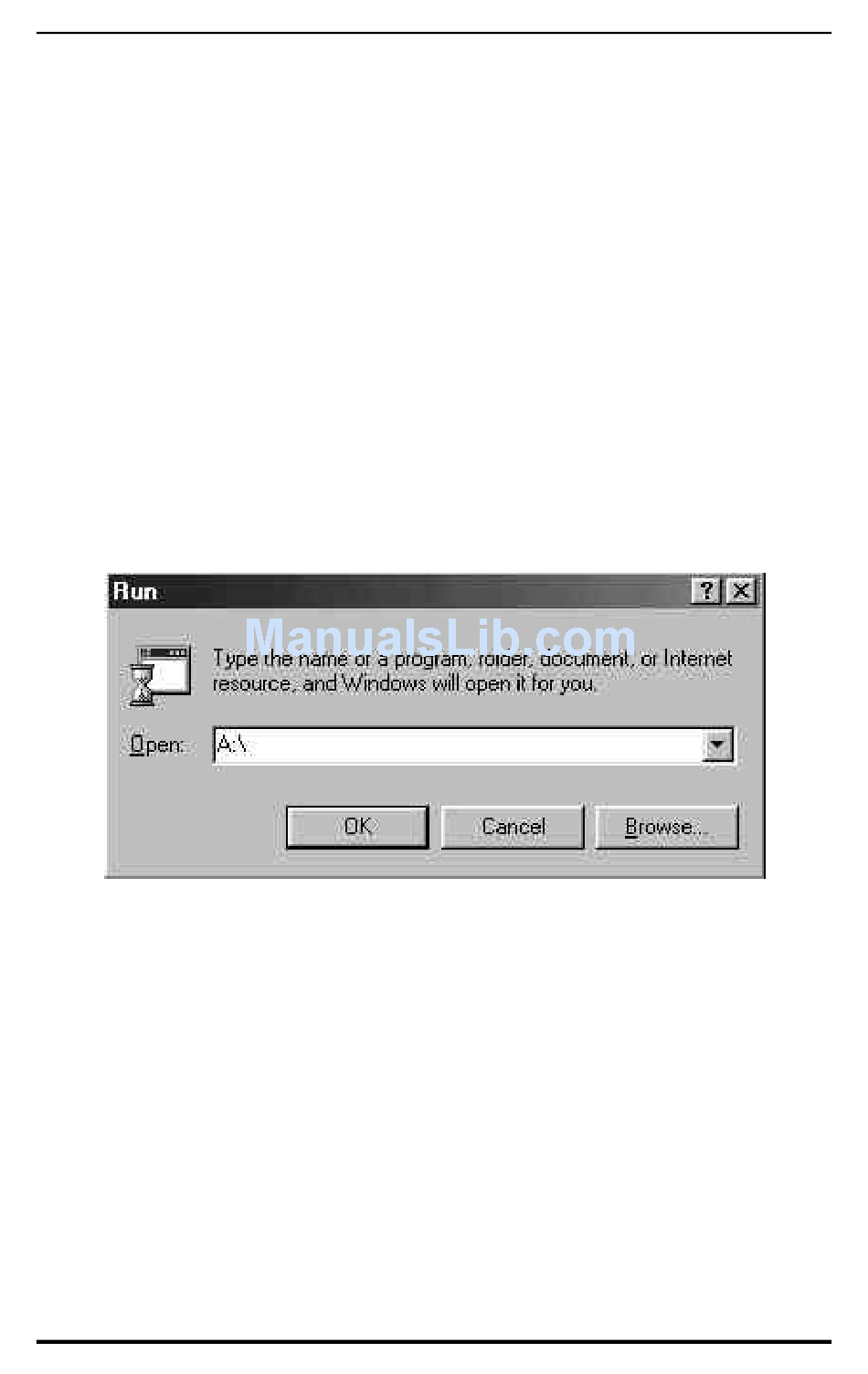

In the Run dialog box, type in "A:\" and click OK.
3.
4. Follow the directions from the setup program.
5. During installation, click YES when prompted to run the utility on every startup. If
NO is selected, FastCheck will not initialize during startup. You may manually
execute the utility via the Start button.
NOTE: Promise recommends having FastCheck load during Startup. This
insures you that it will be ready to post alerts on errors.
FastTrak100 TX/LP™ Series User Manual
54
