Installing The Card

Installing the FastTrak100 TX/LP Series controller card in a system is a simple process.
The card fits into any available 32-bit PCI slot (must be PCI 2.1 or 2.2 compliant), or the
32-bit portion of a 64-bit PCI slot, on the system's motherboard (see fi gure below).
1. Remove the cover of your system.
2. Remove the inside slot cover of an available 32-bit PCI slot on the
motherboard.
3. Install the FastTrak100 controller card into the open slot (see Figure 1
below).
4. Attach your system case's 2 - or 4-pin LED cable to the LED connector on
the FastTrak100 controller card (see figure next page). Make sure that pin 1
on the connector is aligned with pin 1 of the cable.
5. Fasten the controller card bracket to the system case (see below).
FastTrak100 TX/LP™ Series User Manual

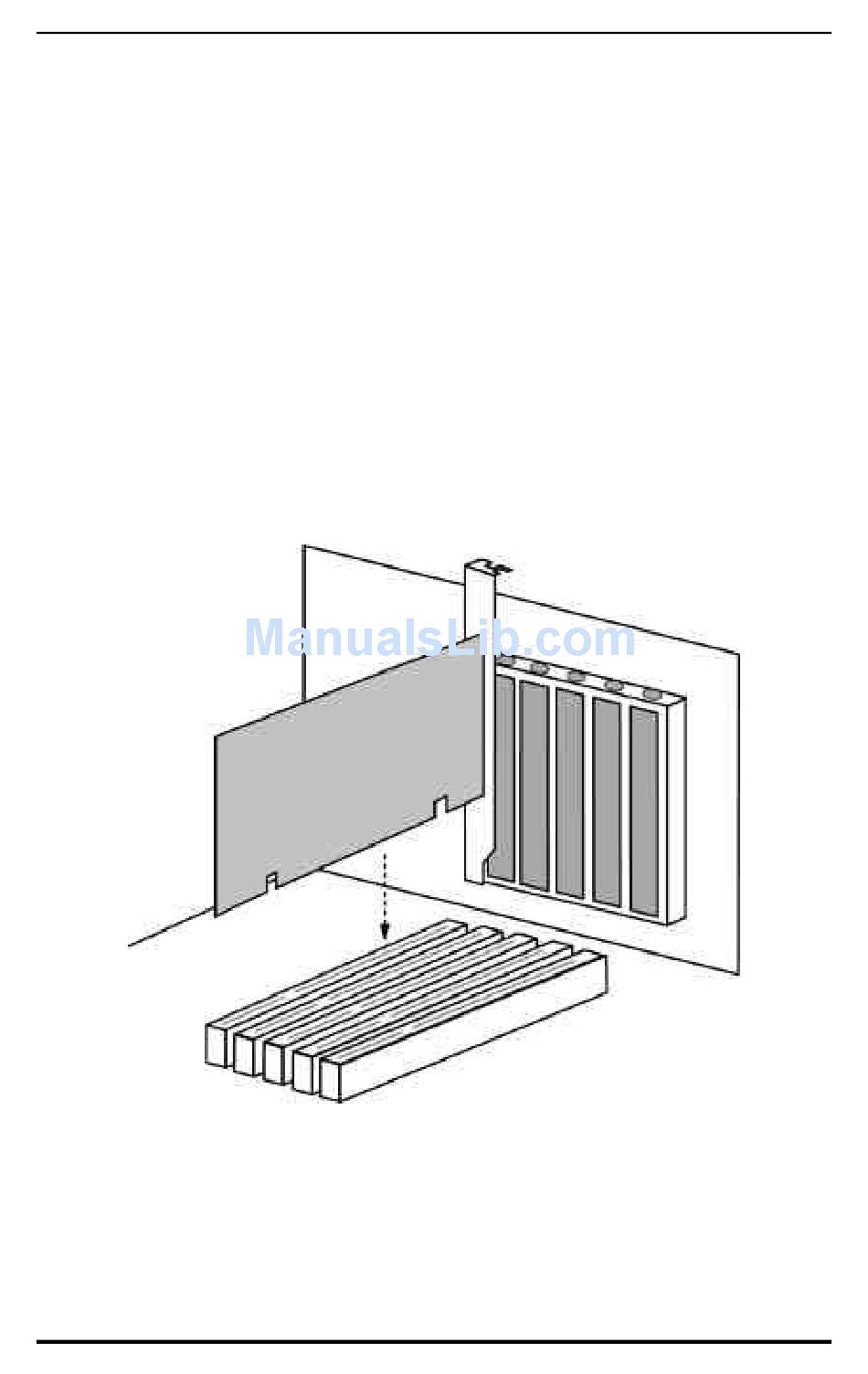

Figure 1
6
