FastTrak100 TX/LP™ Series User Manual
WARNING: Use of removable hard drive enclosures other than
Promise SuperSwap is not supported and may result in
performance loss or other undesired results.

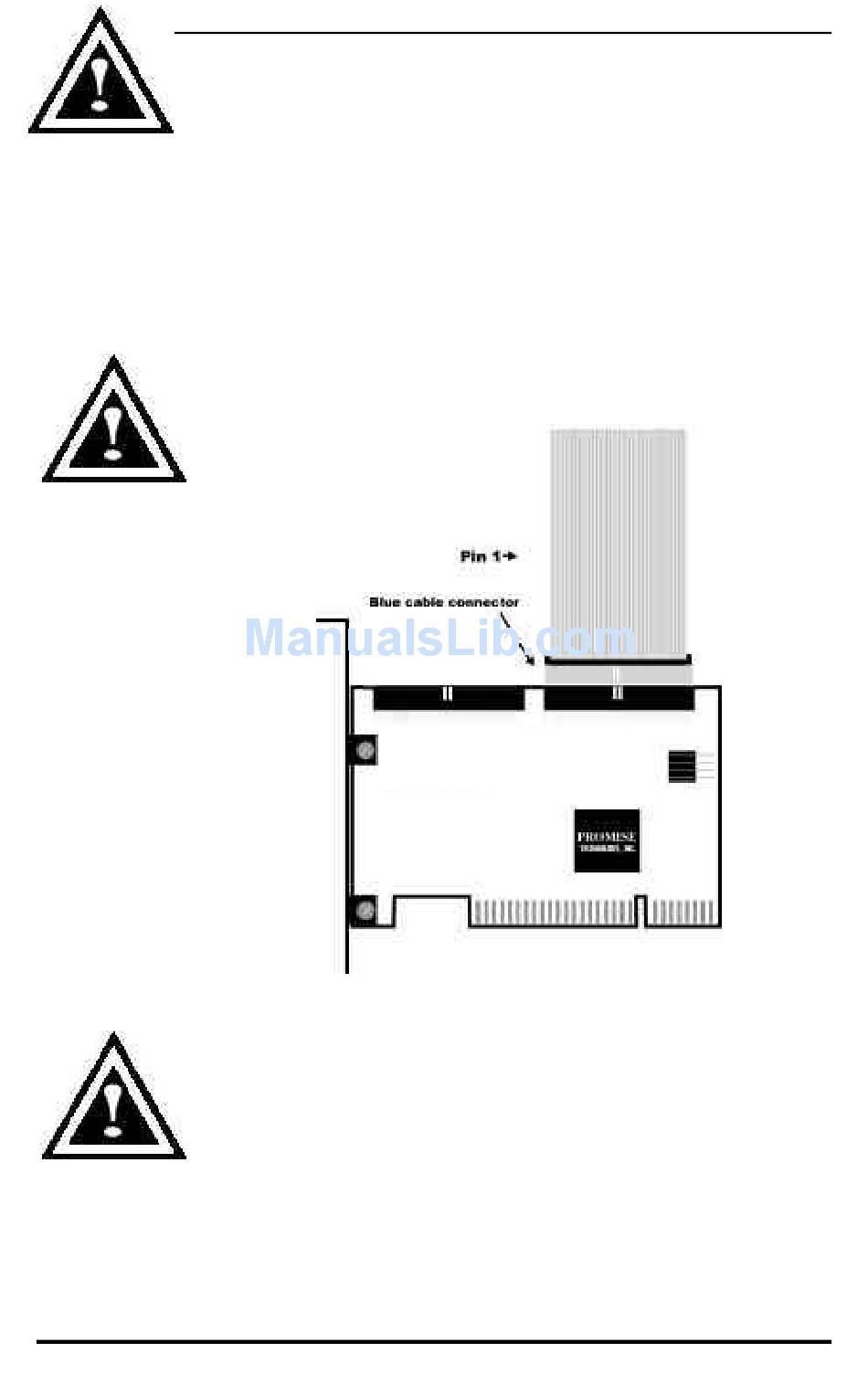

3. Attach one Ultra ATA cable to each hard drive. Then attach one cable to
each of the IDE connectors on the FastTrak100 controller card. The colored
edge of the cable(s) indicates pin 1 (see below), and the blue cable
connector must be attached to the FastTrak100 connector.
NOTE: The TX4 model houses four data channel connectors.
Attach only one drive per connector.
NOTE: You must use an 80-wire, 40-pin cable when connecting
an Ultra ATA/100 hard drive to the FastTrak100 controller card.
The FastTrak100 TX2 and LP package contains two 80-wire, 40-
pin cables. FastTrak100 TX4 contains four of these cables.
IDE 2 IDE 1
8
