Using Controller Window

Clicking on the Controller tab will reveal the Controller Window. This displays physical
information about the location of FastTrak100, data channels on the card, and the
attached drives.
Viewing Controller Card Information

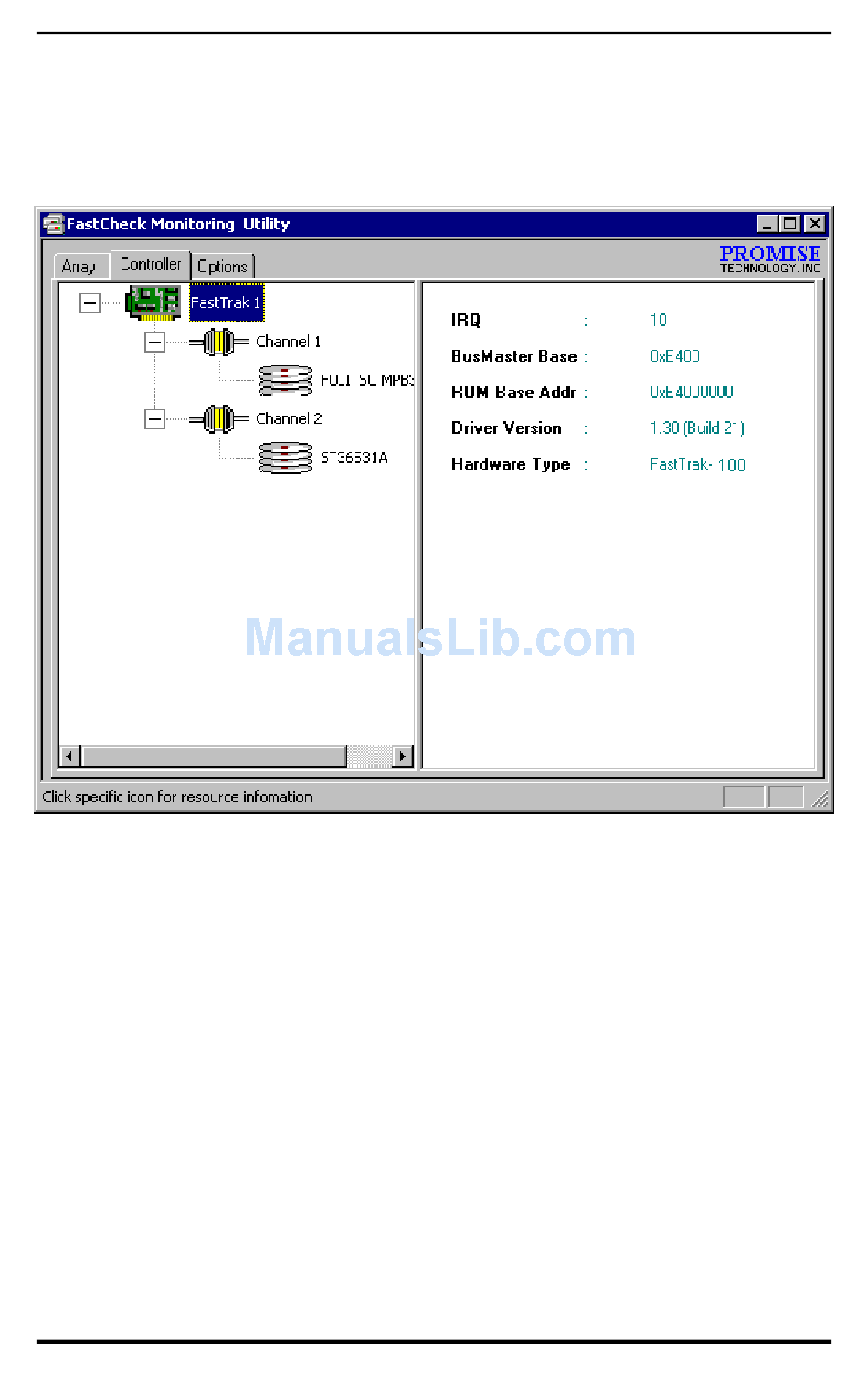

By left-clicking on the FastTrak controller icon, the right pane shows the following
information categories for that array:
IRQ: Identifies interrupt request assigned to PCI slot.
Bus Master Base: Shows base address in hex numbering for board's bus
master Input/Output function.
ROM Base Address: Shows base address in hex numbering for FastTrak's
Flash ROM chip.
Driver Version: Identifies which version of the Promise FastTrak100 driver
you have installed.
Hardware Type: Identifies which FastTrak product is installed.
FastTrak100 TX/LP™ Series User Manual
66
