Euphonix Modular I/O Configuration Guide
AD924 4ch Microphone Input
Technical Specifications
dynamic range
max. input level
THD+N
equiv. input noise
@ 200 Ohm
digital output
resolution
sample rate
gain
low cut filter
frequency response
crosstalk
CMR
input impedance
connector
backplane connector
power supply
consumption
dimensions
weight:

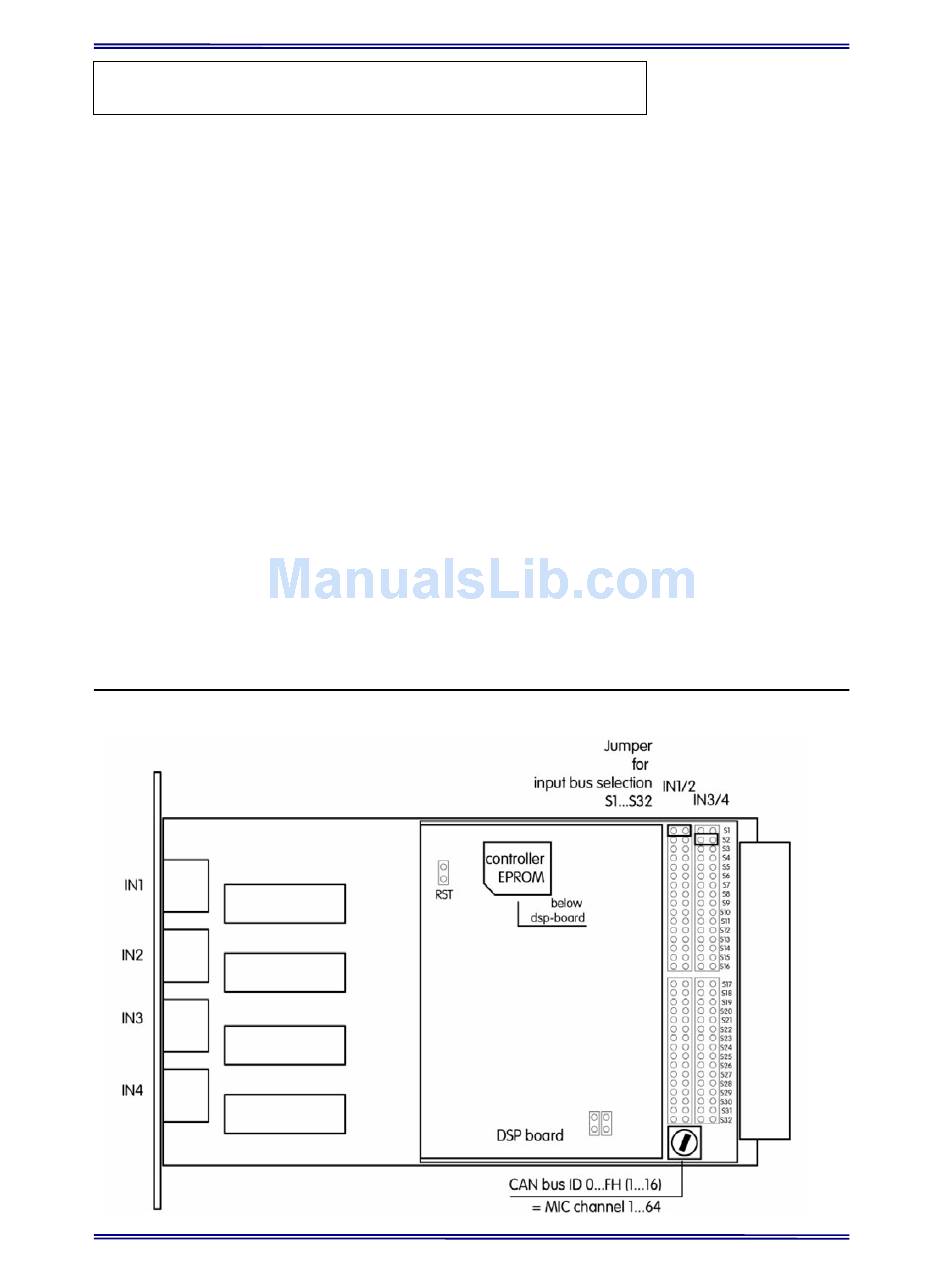

Installation
142dB (RMS)
+18dBu @ 0dBFS
<0.002% @ max. input level
127dB(RMS)
129dB (A)
115dBqp (CCIR)
24 bit
32..96kHz
0...+70dB, in 1dB steps
18dB/oct
5, 40, 60, 80, 100, 120, 150 Hz
5Hz...20kHz (FS=48kHz)
(+/-0.5dB)
5Hz...40kHz (FS=96kHz)
>95dB (20kHz)
>80dB (20kHz)
6,5kOhm, floating balanced
XLR, 1-screen, 2-live, 3-return
ref. to DIN41612, 64pin, a+b, male
+5V DC
appr. 1100 mA
3RU, 8HP, 175mm depth
~300g
