Euphonix Modular I/O Configuration Guide

Chapter 2: Configuration

In this chapter, starting-point and sample configurations are illustrated. Several
reference spreadsheets are also provided.
2.1 Starting Point Configurations

2.1.1 IO93 Modular Frame w/ Linked Audio Busses

• 64 total source signals
• I/O modules may be placed in either plane
• Single SY983 module shown as sync source
FC972 Remote shown. If required, fit in any slot.
•
power outlet x2
AC
MM934 MADI
MADI I/O
SY983 Sync
Sync
FC972 Remote
LAN
Audio
I/O

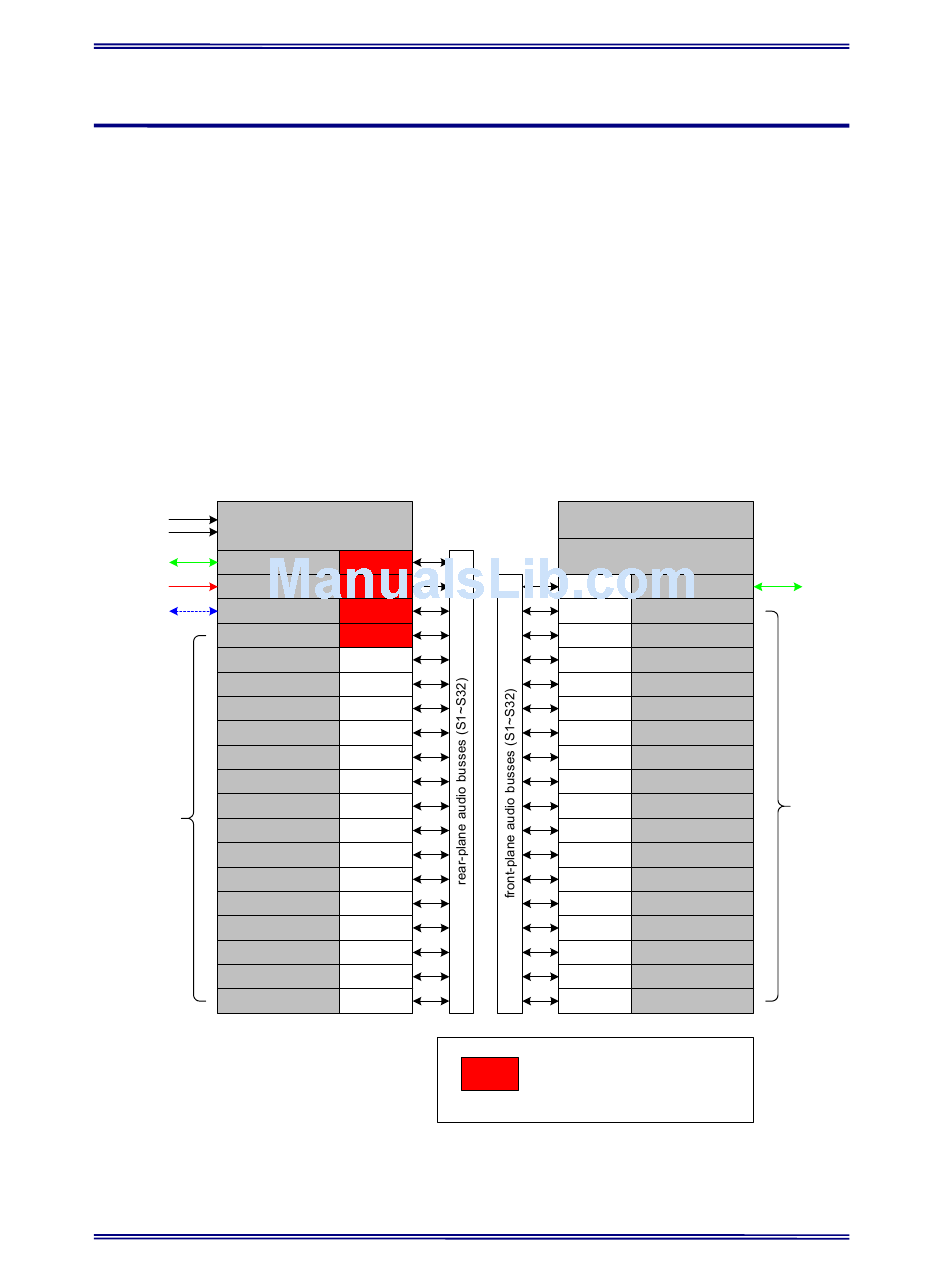

Figure 2-1: IO93 Modular Frame w/ Linked Audio Busses
rear-plane
audio buss linking
(discrete)
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
Slot 10
Slot 11
Slot 12
Slot 13
Slot 14
Slot 15
Slot 16
Slot 17
Slot 18
Slot 19
front-plane
PSU #1
PSU #2
Slot 18 MM934 MADI
Slot 17
Slot 16
Slot 15
Slot 14
Slot 13
Slot 12
Slot 11
Slot 10
Slot 9
Slot 8
Slot 7
Slot 6
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Reserved slots. Master sync
source module(s) must appear in
one of these. Can be used for
other modules as well.
23
Configuration
MADI
I/O
Audio
I/O
