Euphonix Modular I/O Configuration Guide
HD943 8ch HD/SD De/Embedder

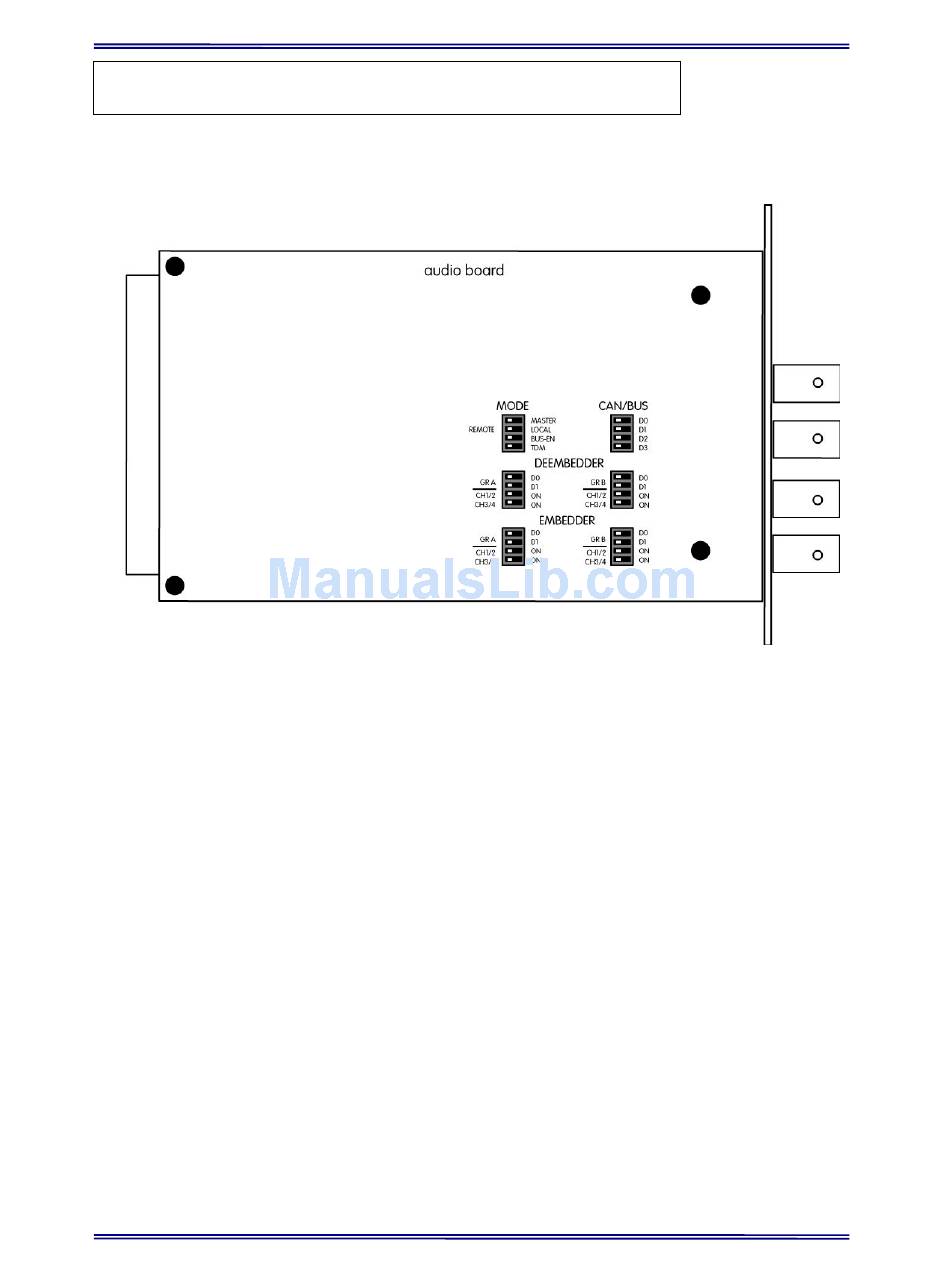

Installation
MASTER MODE
-When ON, the HD943 is clock master for the frame (this master module
REMOTE / LOCAL
-In LOCAL mode, the DIP switch settings are valid on power up. Any previously
must be inserted in to one of the reserved slots in the rear-plane
SD-mode: 48 kHz audio clock is locked to 270 Mbit video carrier
Pattern Generator-mode: 48 kHz is locked to the video carrier
stored settings in the module are overwritten. Buss assignments are
automatically derived from the CAN address switch settings as follows:
For audio signals from any input module :
Sx+1 = IN1/2
Sx+2 = IN3/4
Sx+3 = IN5/6
Sx+4 = IN7/8
For audio signals to any output module :
Sx+5 = OUT1/2
Sx+6 = OUT3/4
Sx+7 = OUT5/6
Sx+8 = OUT7/8
Note: This is typically not a practical working configuration, however
LOCAL mode is useful in module testing.
