Euphonix Modular I/O Configuration Guide
IO94 Stagebox Frame
Features
19" modular chassis, 3RU, RF shielded
• incl. 2 built-in, power supplies in redundant
mode
• incl. 1 double appliance socket with mains
filter and switch
• single plane-card installation from both sides
• external dimensions in accordance with DIN
41494, 320mm depth
• aluminum side panels chromated, aluminum
cross extrusions, RF protection by 0.8mm
steel covers, zinc passivated
• Designed specifically for stagebox
application. Configurations with 48 remote
preamps/16 analog outs available.

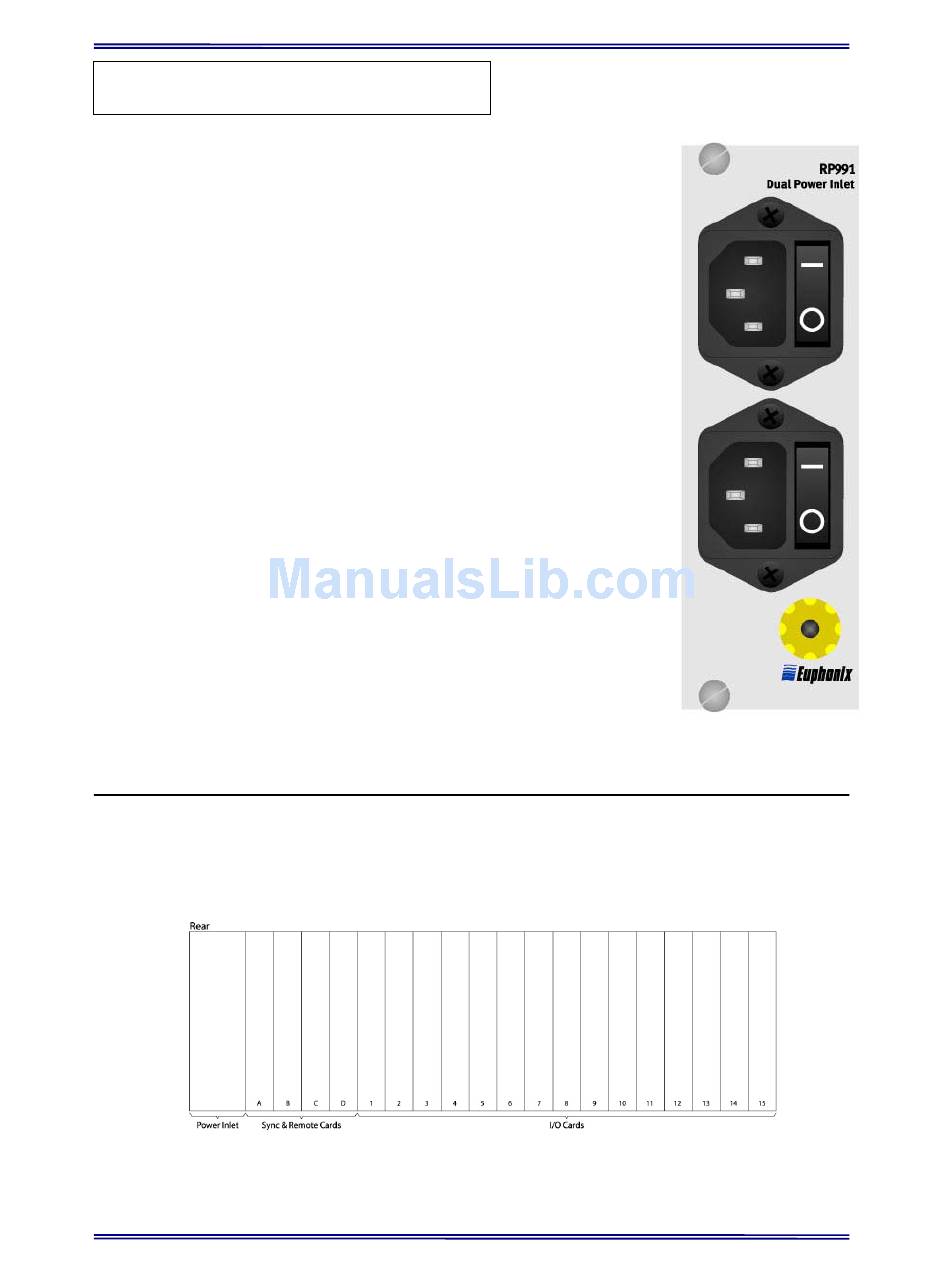

Frame Layout
39
Product Data Sheets
1/3
