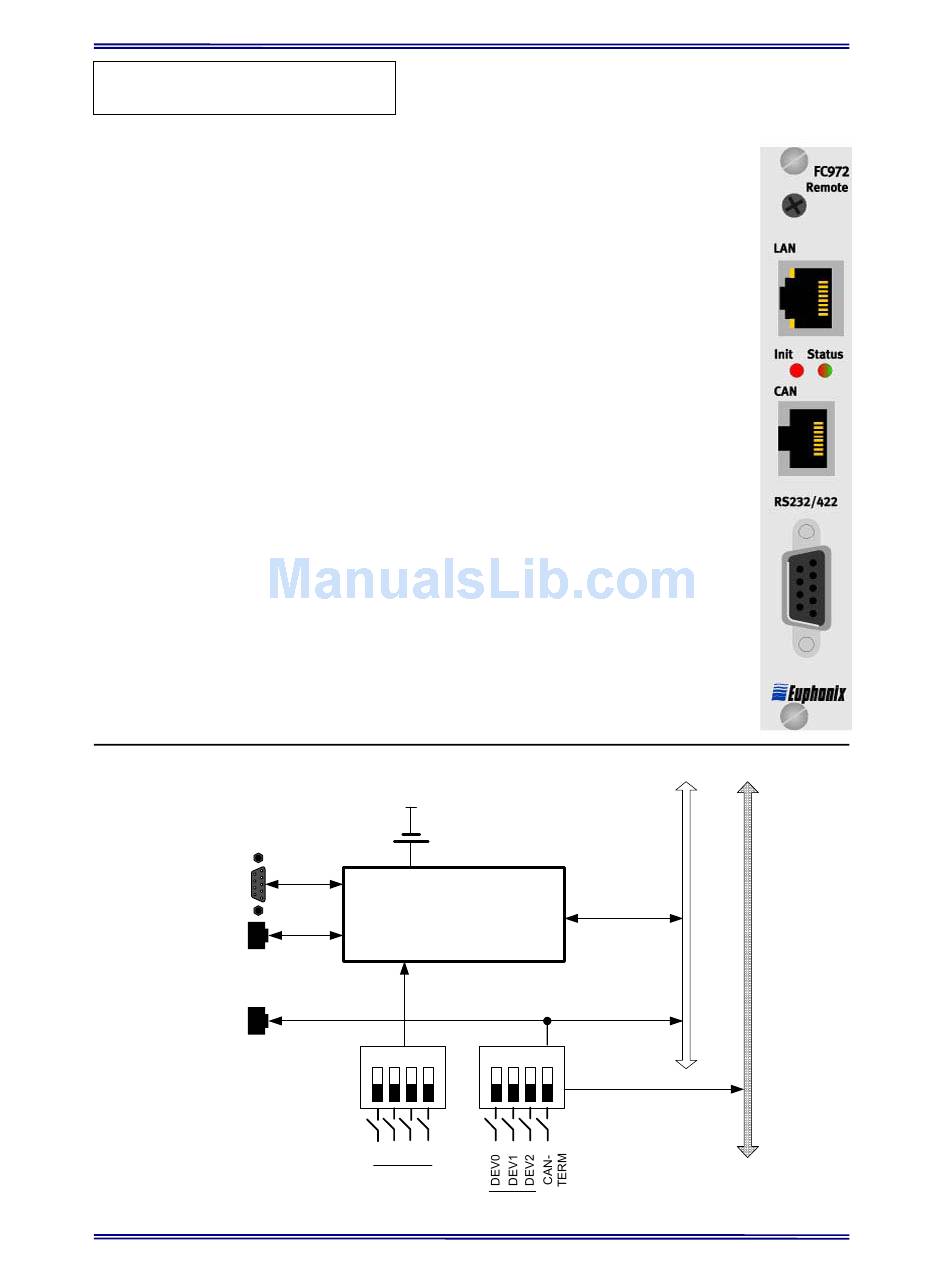

Euphonix Modular I/O Configuration Guide
FC972 Remote
Features
• TCP/IP over Ethernet interface
• Transparent CAN "tunnel" for remote control software
• EuCon / Web interface for set up of system
• Front side RJ45 Ethernet connector
• Front side RJ45 CAN connector
• Front side 9-pin serial connector
• Front side init button and status LED
• On board CAN bus frame address setting
• On board CAN bus termination
• On board mode switch
Block Diagram
RS232
LAN
CAN
clock battery
+
Coldfire - embedded
controller
SW1
ON
DIP
ON
A B C D
mode switch
frame
address
62
Product Data Sheets
CAN bus
SW2
DIP
Frame address
lines
1/7
