Euphonix Modular I/O Configuration Guide
IO95 Modular I/O Frame
Local-side Redundant MADI-over-Fiber Interface
The IO95 frame provides four "positions" for local-side interface to
redundant MADI-over-Fiber stageboxes. Audio busses in these positions
are isolated from the rest of the frame. Sync and control busses are
shared. Each position is fitted with an MM936 MADI I/O (redundant fiber)
for connection to the stagebox and an MM934 MADI I/O (coax) for
connection to the console.
An FC972 Remote is required to configure the MM936 modules. An
SY983 is fitted to accept external sync. Stageboxes set to "sync-to-MADI"
are therefore not reliant upon console MADI output for sync.
All other slots can be used for Local I/O.

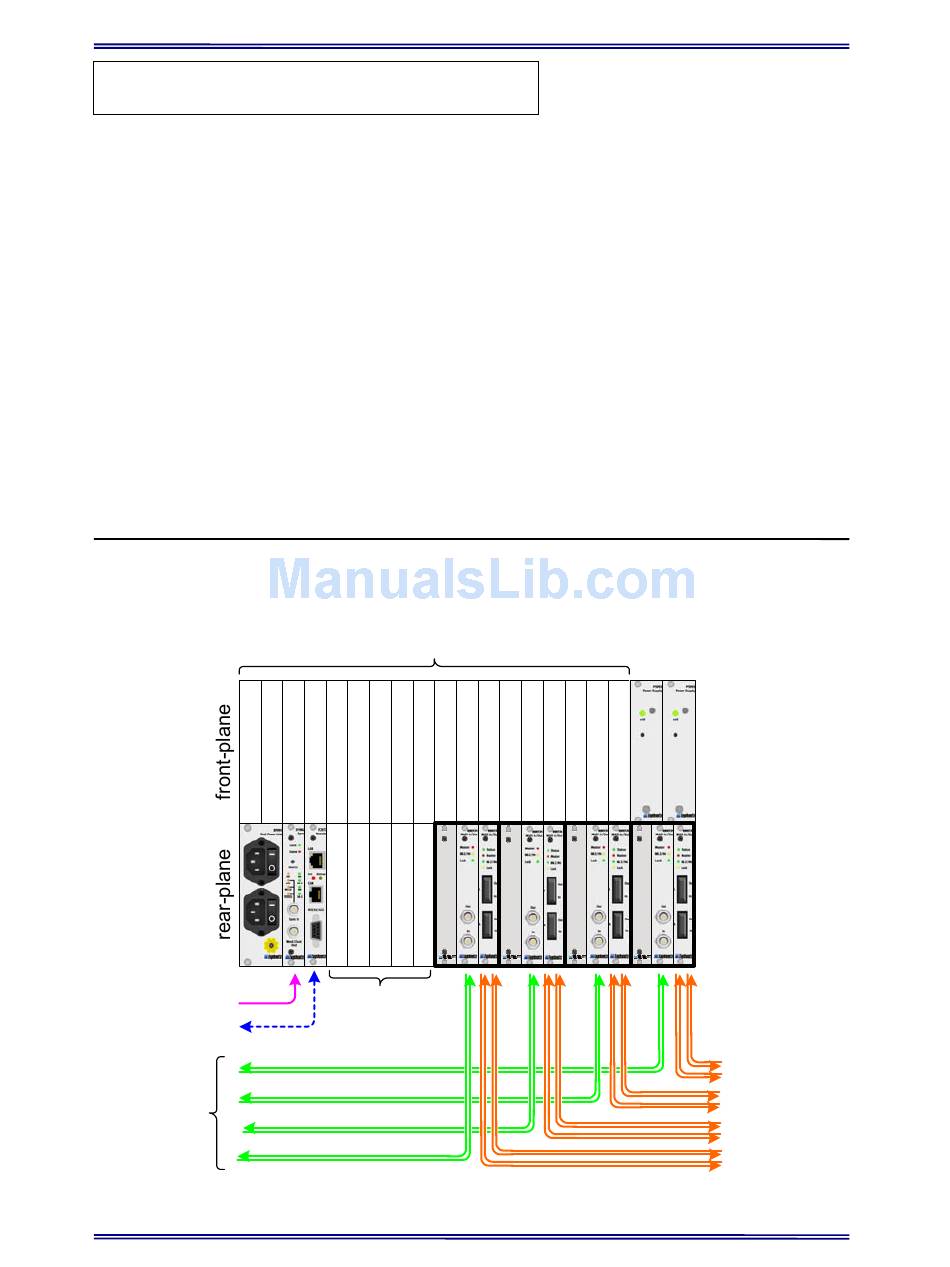

Sample Configuration
Sync
LAN
1
2
Console
MADI I/O
3
4
Local I/O slots
Local I/O
slots
45
Product Data Sheets
4/4
Stagebox #1
Stagebox #2
Stagebox #3
Stagebox #4
