Euphonix Modular I/O Configuration Guide
2.1.4 IO95 Modular Frame as Local-Side MADI-over-Fiber Interface
• Four positions for local-side redundant MADI-over-Fiber
interface modules
• Remaining slots may used for local I/O with front and rear
planes linked or discrete.
• Single SY983 module shown as sync source
• FC972 Remote may be fit in either backplane
power outlet x2
AC
MM934 MADI
MADI I/O
SY982 Sync
Sync
FC972 Remote
LAN
Audio
I/O
Stagebox
#4
interface
Stagebox
#3
interface
Stegebox
#2
interface
Stagebox
#1
interface

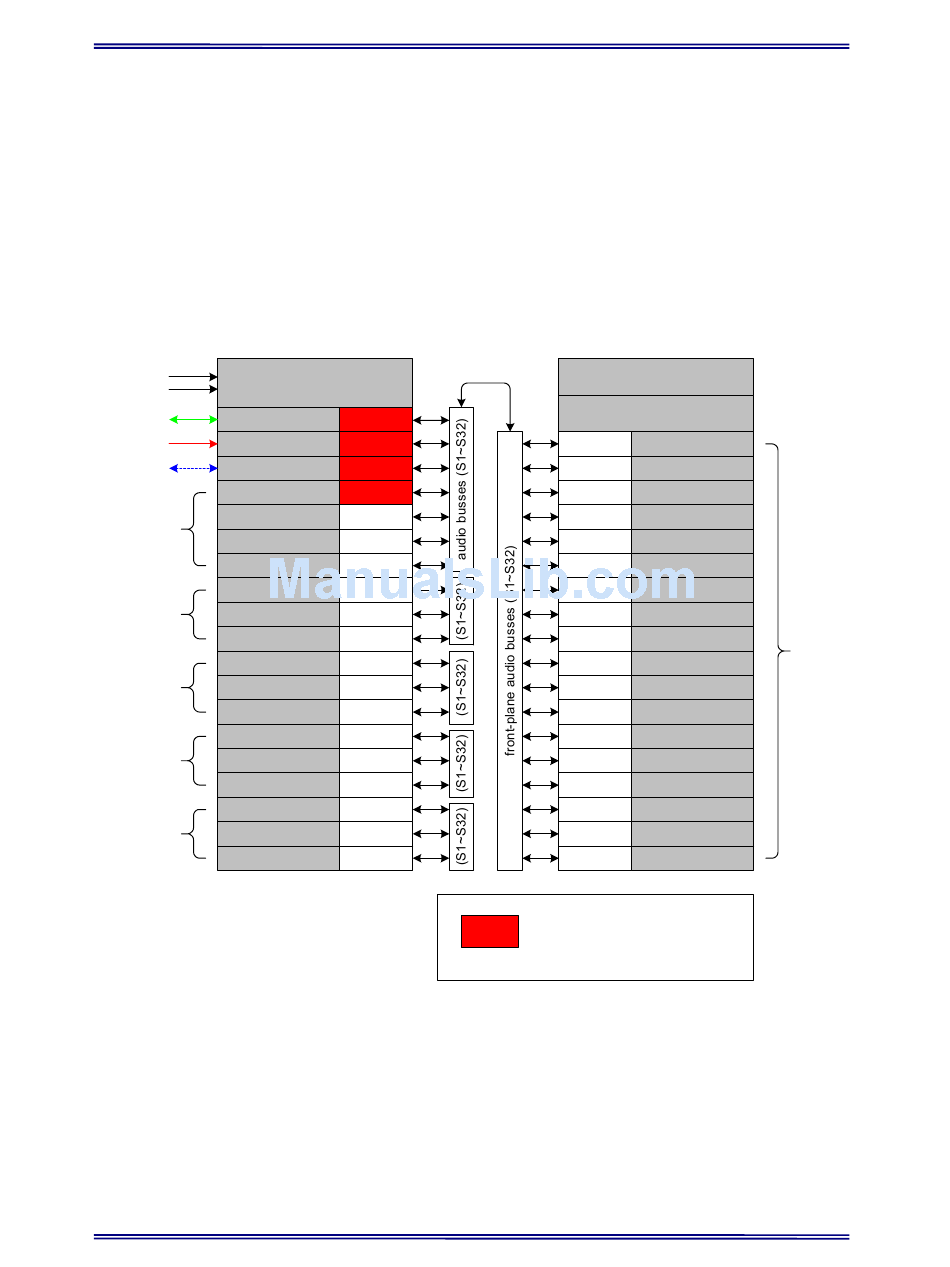

Figure 2-4: IO95 Modular Frame as Local-Side MADI-over-Fiber Interface
rear-plane
audio buss linking
(linked)
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
Slot 10
Slot 11
Slot 12
Slot 13
Slot 14
Slot 15
Slot 16
Slot 17
Slot 18
Slot 19
front-plane
PSU #1
PSU #2
Slot 18
Slot 17
Slot 16
Slot 15
Slot 14
Slot 13
Slot 12
Slot 11
Slot 10
Slot 9
Slot 8
Slot 7
Slot 6
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Reserved slots. Master sync
source module(s) must appear in
one of these. Can be used for
other modules as well.
26
Configuration
Audio
I/O
