SY983 Sync
Technical Specifications
sync interface
internal sync:
external sync:
VIDEO connector:
level:
input format:
rates:
WCLK connector:
level:
AES connector:
Level:
general
backplane connector:
power supply:
consumption:
dimensions:
weight:
Installation

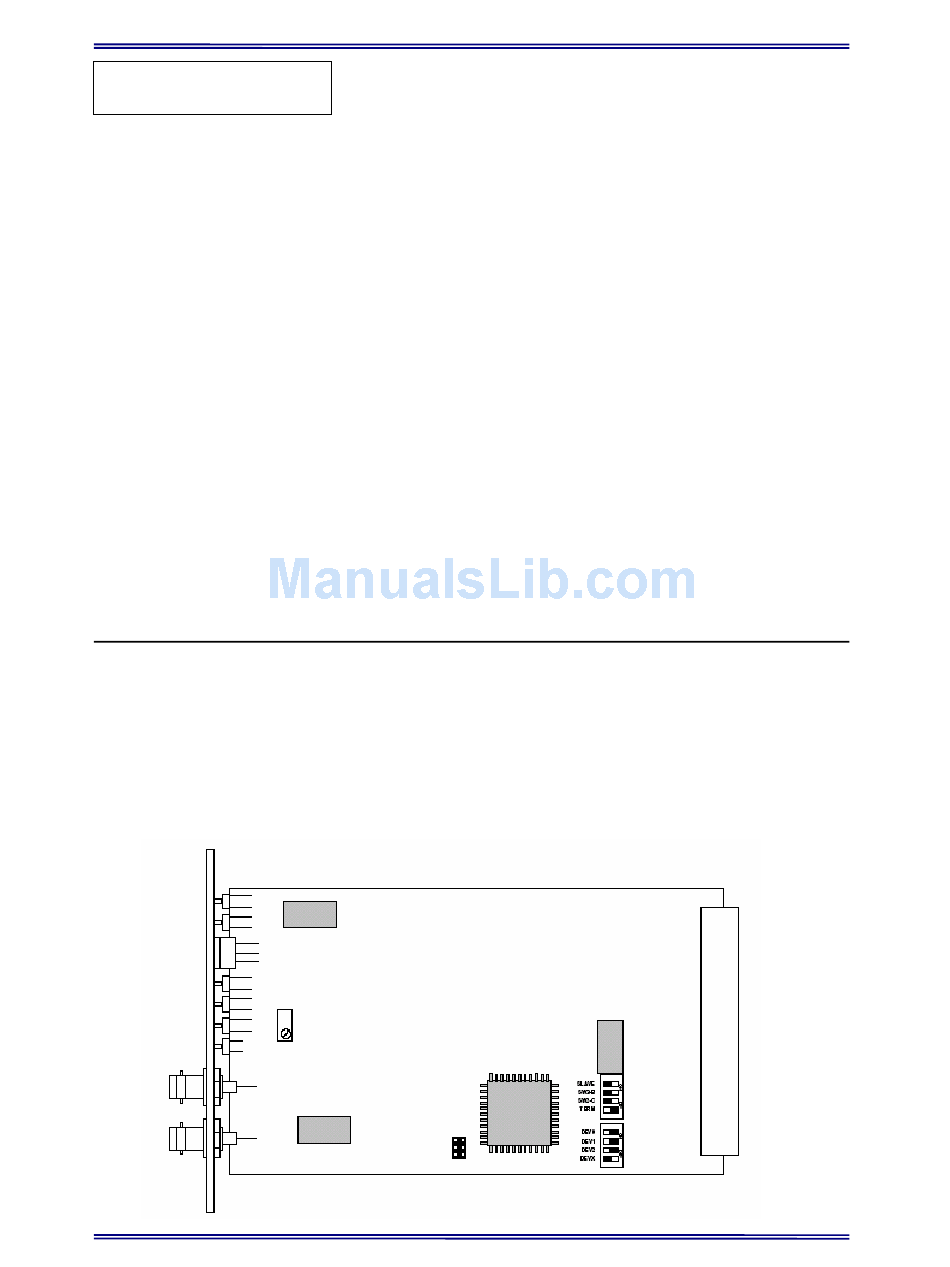

Module exchange
When swapping out the SY982, the frame must be powered off if there is no
redundant sync module fitted. Without stable clock some interface modules can
switchable 44.1, 48, 96kHz,
BNC, 75 Ohm, coaxial
0,5 ... 1 Vpp (BB/CS)
+/-0,3V (Tri-Level)
PAL / NTSC / HDTV
1080i/50/59.94/60
720p/50/59.94/60
1080p/23.98/24/25/29.97/30/50/59.94/60
BNC, 75 Ohm, coaxial
TTL-level
BNC, 75 Ohm, coaxial
0,5 ... 5 Vpp
ref. to DIN41612, 64pin, a+b, male
+5V DC
approx. 300 mA
3RU, 4HP, 175mm depth
~200g
fall into irregular condition which can damage parts of the circuits
