Sample Configuration 3 - Euphonix Modular I/O Configuration Manual

Euphonix Modular I/O Configuration Guide
2.2.3 Sample Configuration 3: IO94 Stagebox Frame
• MM936 MADI I/O set to "sync-to-MADI"
• MADI config set using flexible crosspoint matrix via web-
browser interface
• 56 mic inputs
• 8 analog line outputs
• Single MADI I/O entry/exit
• FC972 Remote not required for remote preamp control and
MM936 MADI configuration.
MADI I/O
Line Out
1-8
Mic In
rear-plane
power outlet x2
AC
MM936 MADI
LAN FC972 Remote
DA923 4ch Line
DA923 4ch Line
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
1-56
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
AD914 4ch Mic In
Reserved slots. Master sync
source module(s) must appear in
one of these. Can be used for
other modules as well.

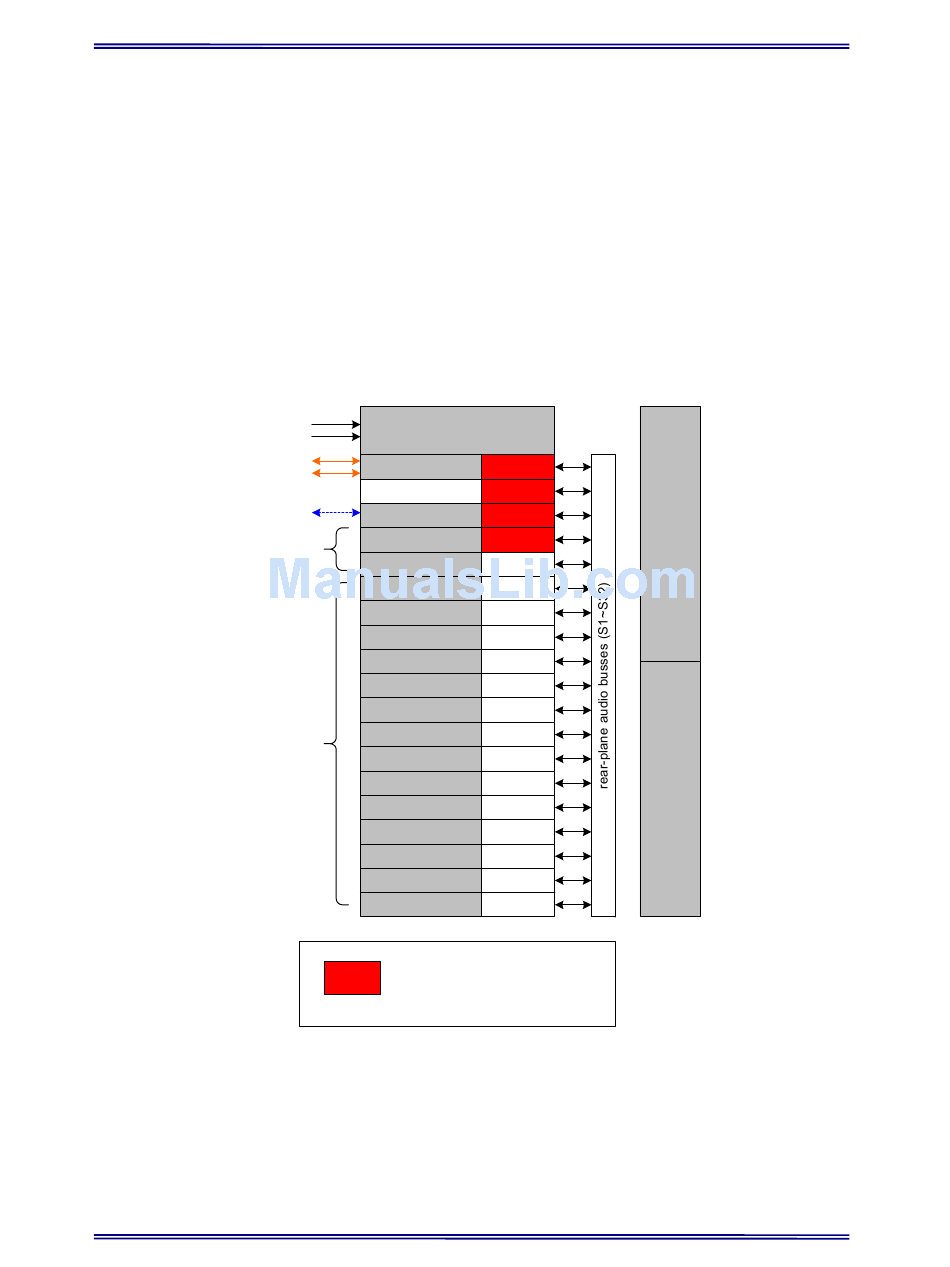

Figure 2-7: Sample Configuration 3
PSU #1
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
PSU #2
Slot 10
Slot 11
Slot 12
Slot 13
Slot 14
Slot 15
Slot 16
Slot 17
Slot 18
Slot 19
29
Configuration
