Euphonix Modular I/O Configuration Guide

2.2 Sample Configurations

2.2.1 Sample Configuration 1: IO93 Modular Frame w/Linked Audio
Busses
• Single SY983 Sync module as sync source
• MADI working mode: <32 in, 32 out> = 32 audio outputs, 32
audio inputs
• 32 analog line inputs
• 16 analog line outputs
• 8 AES outputs (pairs)
• 4 wordclock outputs derived from the sync source
• Single MADI I/O entry/exit
power outlet x2
AC
MM934 MADI
MADI I/O
SY983 Sync
Sync
AD920 4ch Line In
AD920 4ch Line In
AD920 4ch Line In
AD920 4ch Line In
Line In
1-32
AD920 4ch Line In
AD920 4ch Line In
AD920 4ch Line In
AD920 4ch Line In
rear-plane
audio buss linking
(linked)
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
Slot 10
Slot 11
Slot 12
Slot 13
Slot 14
Slot 15
Slot 16
Slot 17
Slot 18
Slot 19

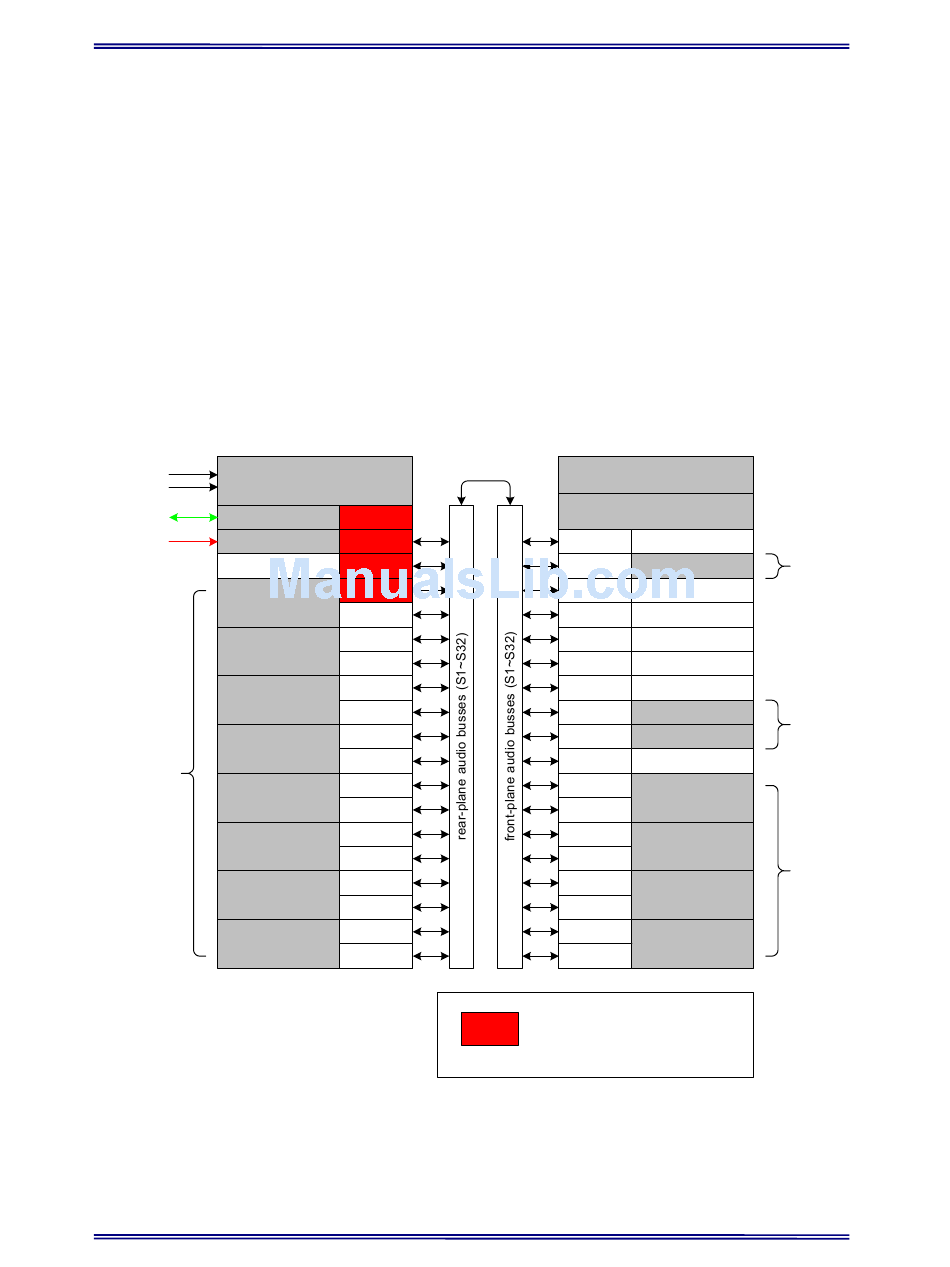

Figure 2-5: Sample Configuration 1
front-plane
PSU #1
PSU #2
Slot 18
Slot 17 WC984 4ch WCLK
Slot 16
Slot 15
Slot 14
Slot 13
Slot 12
Slot 11 DD913 8ch AES
Slot 10 DD913 8ch AES
Slot 9
Slot 8 DA921 4ch Analog
Out
Slot 7
Slot 6 DA921 4ch Analog
Out
Slot 5
Slot 4 DA921 4ch Analog
Out
Slot 3
Slot 2 DA921 4ch Analog
Out
Slot 1
Reserved slots. Master sync
source module(s) must appear in
one of these. Can be used for
other modules as well.
27
Configuration
Word
Clock
Out x4
AES
Out
1-8
(pairs)
Analog
Out
1-16
