Summary of Contents for Euphonix DF66
-

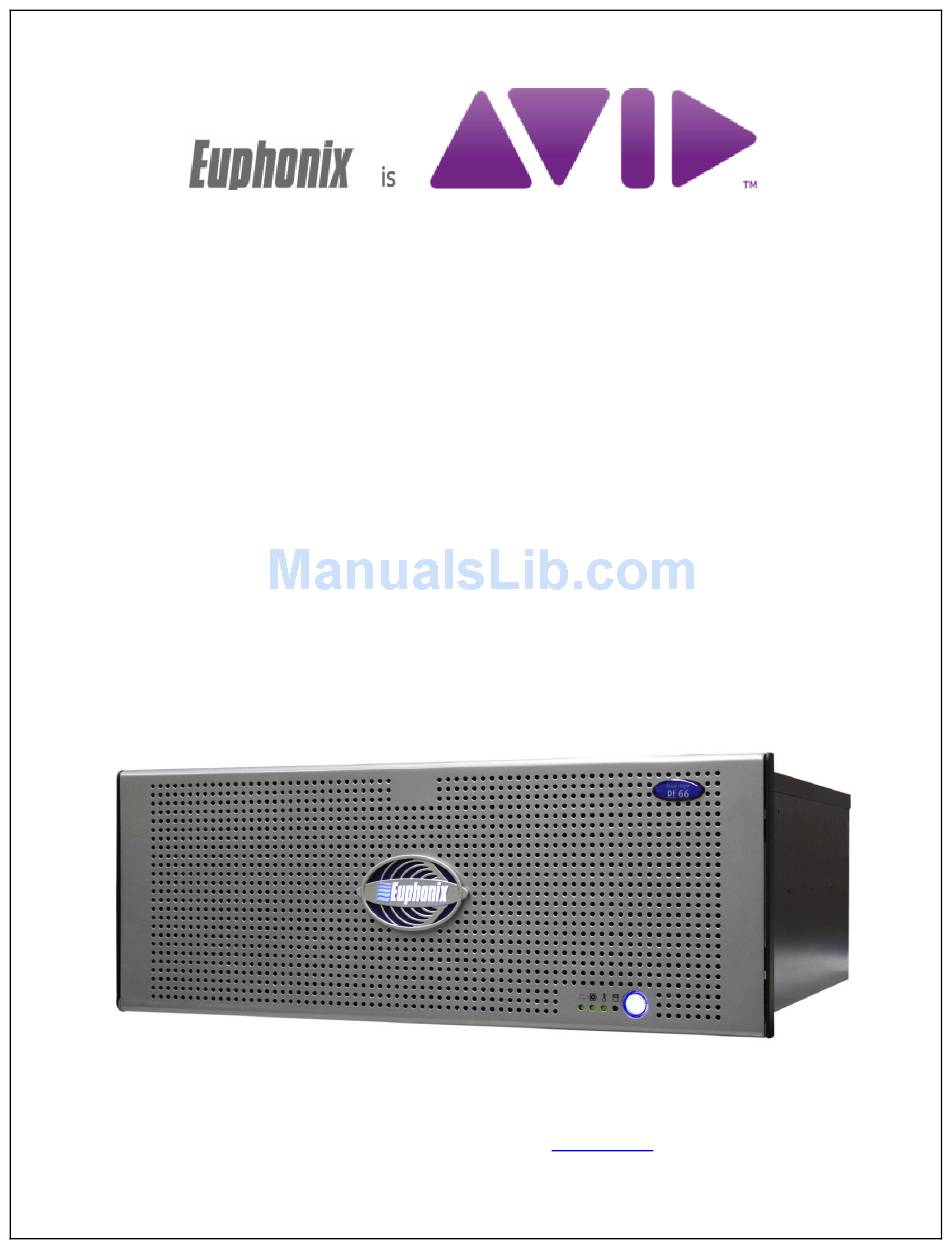

Page 1: Installation Manual
DF66 Super Core Installation Manual Document Revision: A Part Number: 840-11252-01 Release Date: May 2010 Euphonix is Avid. Learn more at www.avid.com... -
Page 2: Regulatory And Safety Notices
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense. Euphonix is Avid. Learn more at www.avid.com... -
Page 3: Canadian Ices-003
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecté toutes les exigences du Règlement sur le matériel brouilleur du Canada. Euphonix is Avid. Learn more at www.avid.com... -
Page 4: European Union Declaration Of Conformity
Verantwortung,daß dieses Produkt, déclarons sous notre seule responsabilité que le produit, declaramos, bajo nuestra sola responsabilidad, que el producto, verklaren onder onze verantwoordelijkheid, dat het product, dichiariamo sotto nostra unica responsabilità, che il prodotto, Euphonix is Avid. Learn more at www.avid.com... - Page 5 è conforme alla/e seguente/i norma/o documento/i normativo/i. The requirements of the European Council: Safety: Directive 2006/95/EC EN 60065:2002 /A1:2006 EMC: Directive 2004/108/EC EN 55103-1:1996 EN 55103-2:1996 Euphonix is Avid. Learn more at www.avid.com...
-
Page 6: Led Safety Notices
Optical connections are located on the rear panel and are typically labeled “Optical” or “SPDIF/ADAT.” The exact location of optical connections is identified more clearly elsewhere in the documentation for the Avid hardware device. Euphonix is Avid. Learn more at www.avid.com... -
Page 7: European Union
• Reliable earthing — Reliable earthing of rack-mounted equipment should be maintained. Particular attention should be given to supply connections other than direct connections to the branch circuit (for example, use of power strips). Euphonix is Avid. Learn more at www.avid.com... -
Page 8: Lithium Battery Replacement
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Euphonix is Avid. Learn more at www.avid.com... - Page 9 Overview The DF66 is an audio DSP core for the S5 and MaxAir families It is available with between 1 and 6 x 120Mhz DSP cards Up to 334 channels at 48 KHz and 176 channels at 96 KHz Models with bus processing available (including limiter)(lower channel counts) Up to 24 MADI ins and outs fully routable 4U, chassis inc.
- Page 10 Status Module Power Switch: Turns the unit on or off. System Reset Switch: Forces a manual reset of the DF66. Alarm Cancel Switch: Cancels the audible hardware fault alarm. LED Status Indicators: Indicates the status of the power supply, cooling fans, temperature, and file system activity.
- Page 11 AES Sync. Connect this port to a digital sync reference. Word In (BNC): The DF66 clocks to the signal at this port when the sync source is set to Word Clock. Connect this port to a digital sync reference.
- Page 12 Sync: Connect a digital reference signal from a master clock source to one of the sync inputs. Be sure to select this as the sync source when configuring the DF66 (see General Settings on page 11). MADI: MADI ports and DSP cards are numbered from left to right (from the rear).
-
Page 13: Specifications
Specifications DF66 Technical Specification Power Requirements 100-250 VAC; 50 or 60 Hz (Auto-ranging) Power Consumption 300W Tempreture of Operation 5-35 º Dimensions H 177mm W 482mm L 482mm Weight 20kg Heat Dissipation 1025BTU/hr Euphonix is Avid. Learn more at www.avid.com...
