Euphonix Modular I/O Configuration Guide
SD942 8ch SD De/Embedder
Features
• interface for embedded audio in SDI signals (270MB/s)
• 8ch embedder/deembedder
• 2 SDI outputs
• bypass relay for SDI IN >>> SDI OUT1
• bit transparent for coded data streams (e.g. Dolby E)
• de-embedder :
-de-embedding of all 4 groups simultaneously
-user selectable routing of up to 8 mono channels to audio busses
• embedder :
-user selectable embedding of up to 4 groups
-routing of up to 8 audio channels from audio busses
• MASTER mode: system can lock to SD input
• sample rate converter (optional) for non-synchronized SDI signals
• audio delay: 8 x 240 ms in increments of 1 ms
delay available either in de-embedder or embedder
• video test pattern generator for SD:
-auto mode: generates test pattern if the input signal is lost
-fixed mode: generates pre selected video format
• remote control of all functions via web interface with FC972 Remoter;
local setting of dedicated functions

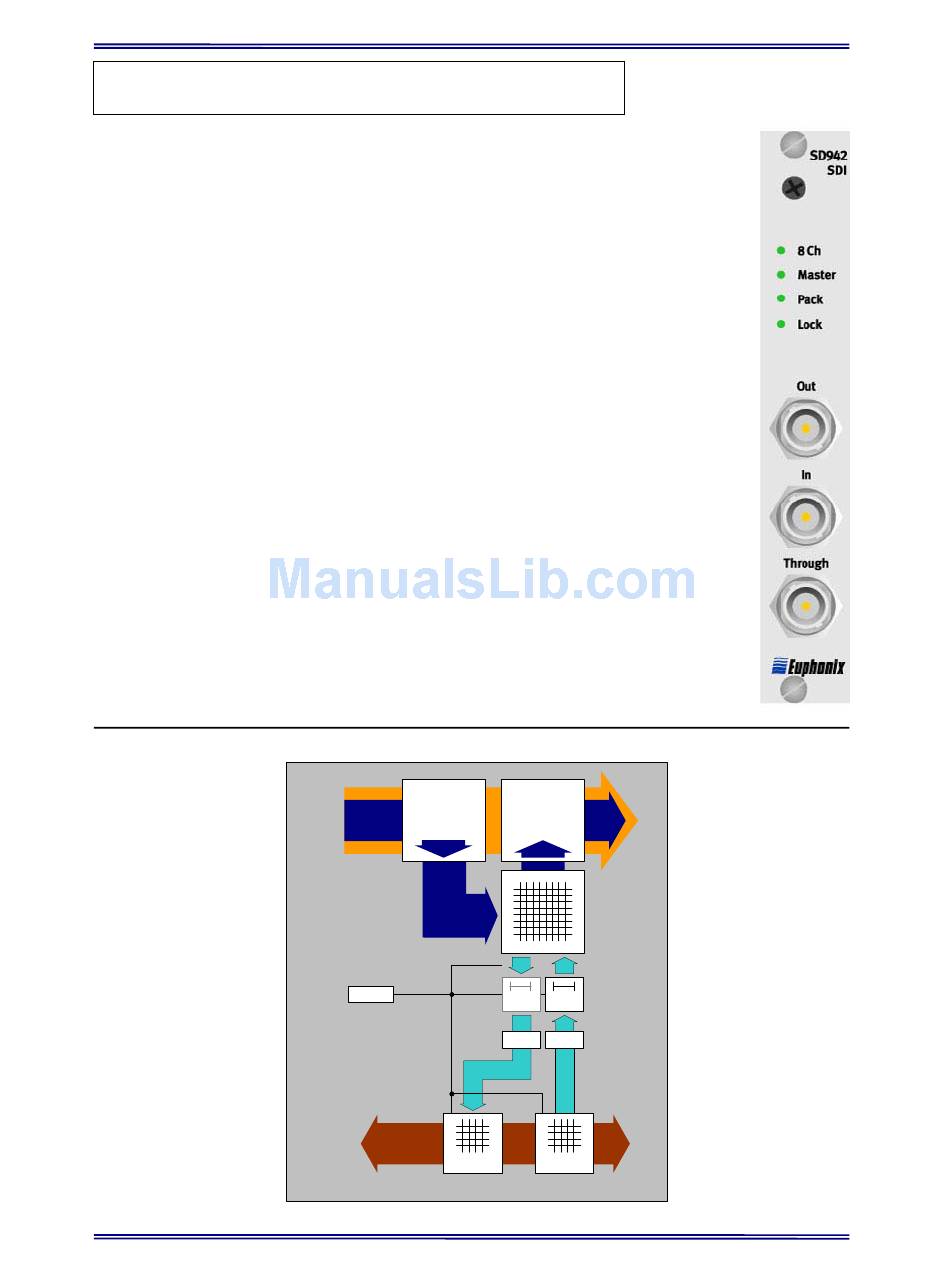

Block Diagram

16ch
de-embedder,
SD
4 groups
control
audio
busses
8ch in
routing to audio busses
105
16ch
embedder,
4 groups
internal
routing
matrix
delay, either
for audio in
delay delay
or audio out
optional
SRC SRC
SRC
8ch out
