Euphonix Modular I/O Configuration Guide
2.1.2 IO93 Modular Frame w/ Discrete Audio Busses
• 64 total signals per backplane
• I/O modules must be fitted on the same plane as their
associated MADI module
• Two MADI I/O entry/exit
• Single SY983 module shown as sync source
• FC972 Remote shown. Fit if required on either backplane.
power outlet x2
AC
MM934 MADI
MADI I/O
SY982 Sync
Sync
FC972 Remote
LAN
Audio
I/O

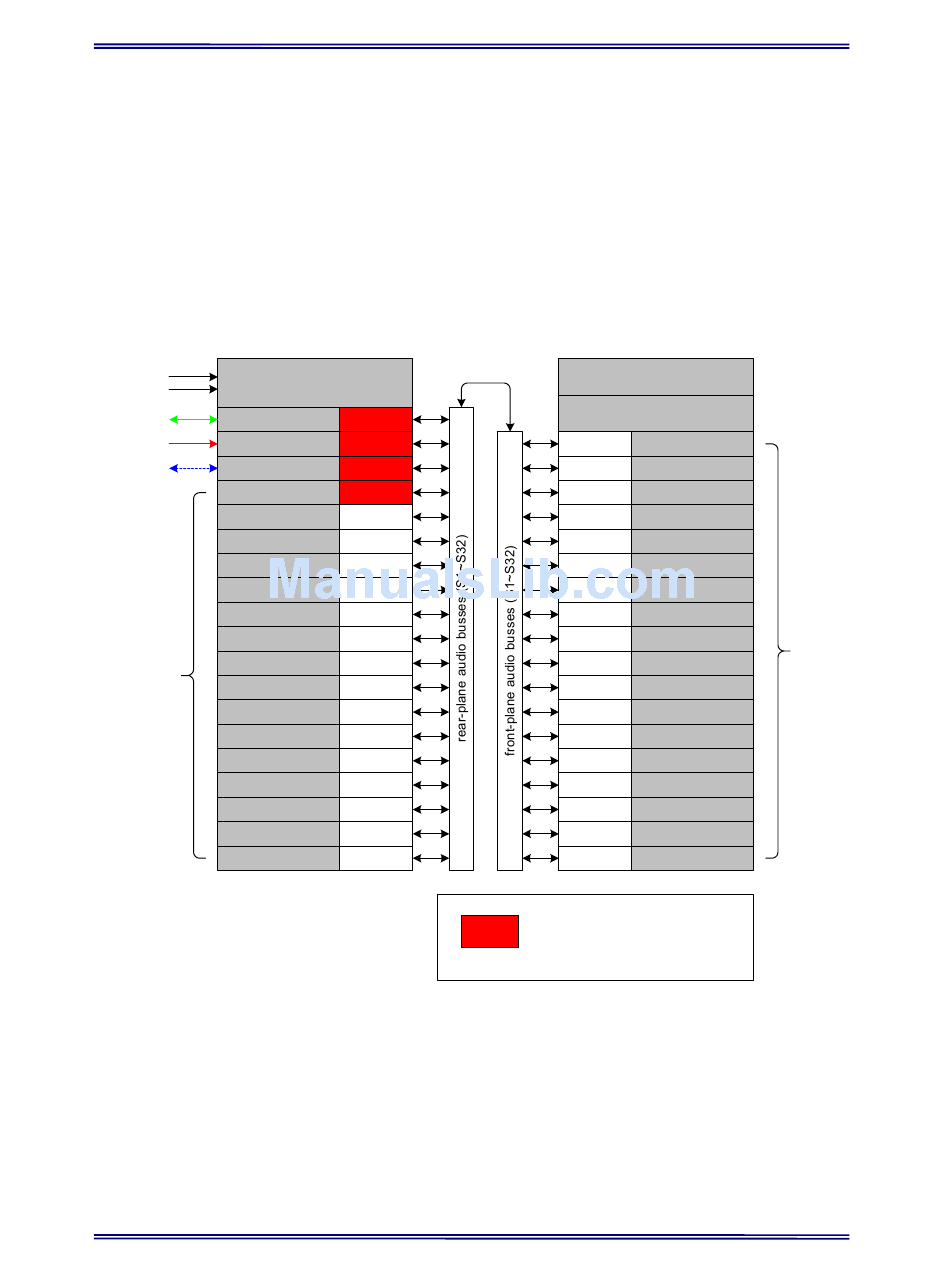

Figure 2-1: IO93 Modular Frame w/ Discrete Audio Busses
rear-plane
audio buss linking
(linked)
Slot 1
Slot 2
Slot 3
Slot 4
Slot 5
Slot 6
Slot 7
Slot 8
Slot 9
Slot 10
Slot 11
Slot 12
Slot 13
Slot 14
Slot 15
Slot 16
Slot 17
Slot 18
Slot 19
24
front-plane
PSU #1
PSU #2
Slot 18
Slot 17
Slot 16
Slot 15
Slot 14
Slot 13
Slot 12
Slot 11
Slot 10
Slot 9
Slot 8
Slot 7
Slot 6
Slot 5
Slot 4
Slot 3
Slot 2
Slot 1
Reserved slots. Master sync
source module(s) must appear in
one of these. Can be used for
other modules as well.
Configuration
Audio
I/O
