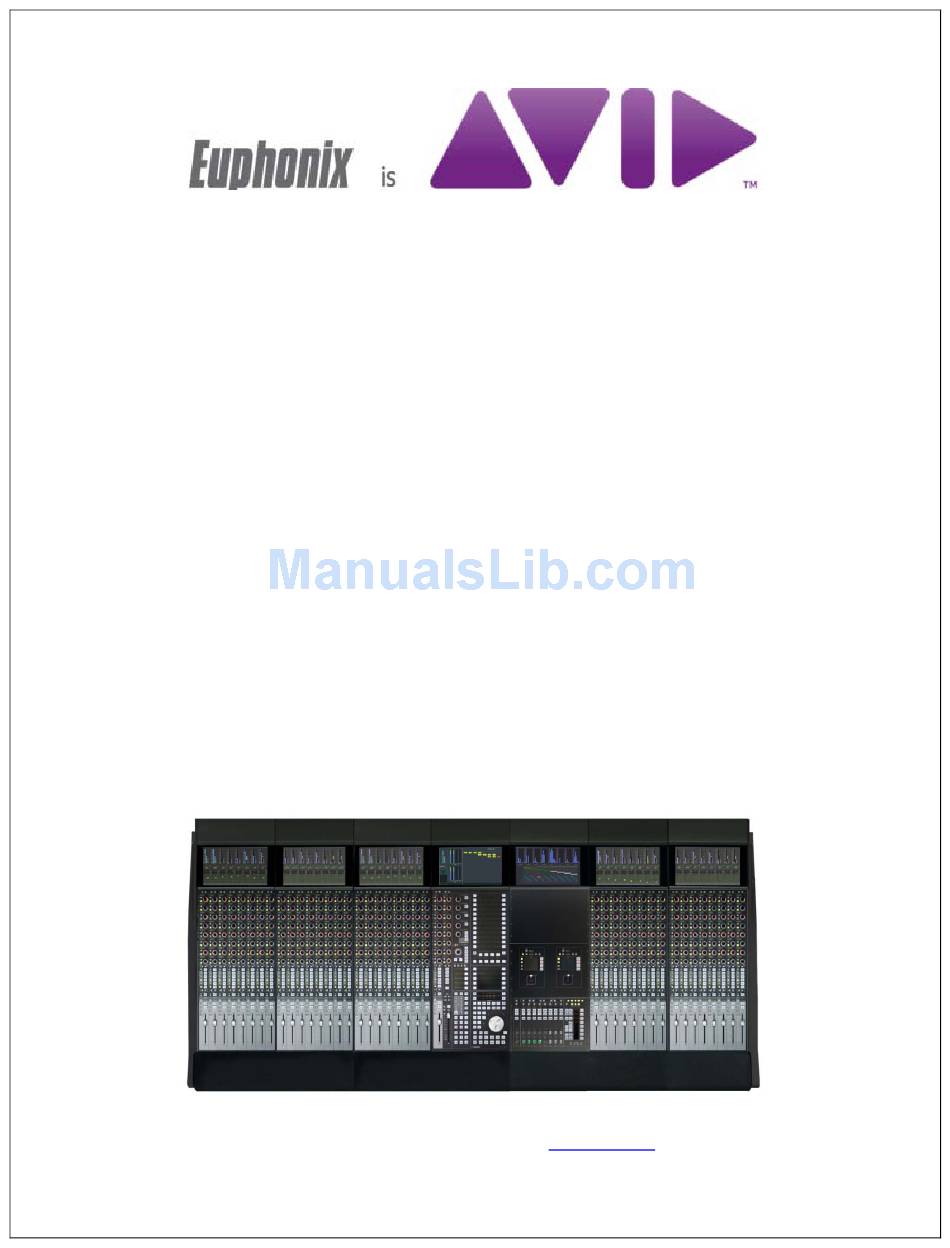

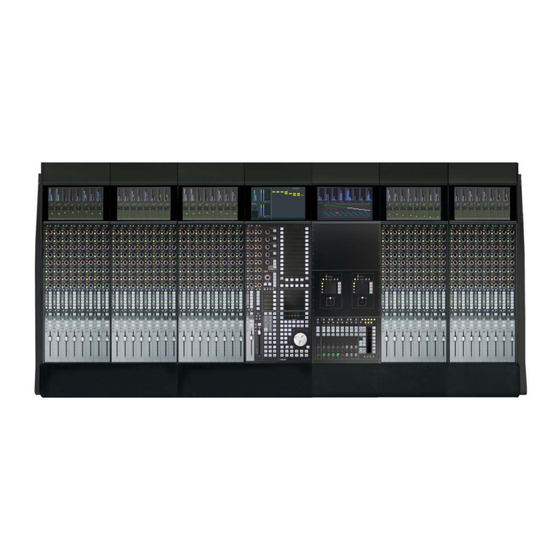

- Page 1 S5 surface CM401, CM402, CM403, CM408, CM411 Installation Manual Document Revision: A Part Number: 840-11307-01 Release Date: August 2010 Euphonix is Avid. Learn more at www.avid.com...
-
Page 2: Regulatory And Safety Notices
Operation of this equipment in a residential area is likely to cause harmful interference, in which case the user will be required to correct the interference at personal expense. Euphonix is Avid. Learn more at www.avid.com... -
Page 3: Canadian Ices-003
This Class A digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe A respecté toutes les exigences du Règlement sur le matériel brouilleur du Canada. Euphonix is Avid. Learn more at www.avid.com... -
Page 4: European Union Declaration Of Conformity
Verantwortung,daß dieses Produkt, déclarons sous notre seule responsabilité que le produit, declaramos, bajo nuestra sola responsabilidad, que el producto, verklaren onder onze verantwoordelijkheid, dat het product, dichiariamo sotto nostra unica responsabilità, che il prodotto, Euphonix is Avid. Learn more at www.avid.com... - Page 5 è conforme alla/e seguente/i norma/o documento/i normativo/i. The requirements of the European Council: Safety: Directive 2006/95/EC EN 60065:2002 /A1:2006 EMC: Directive 2004/108/EC EN 55103-1:1996 EN 55103-2:1996 Euphonix is Avid. Learn more at www.avid.com...
-
Page 6: Led Safety Notices
Optical connections are located on the rear panel and are typically labeled “Optical” or “SPDIF/ADAT.” The exact location of optical connections is identified more clearly elsewhere in the documentation for the Avid hardware device. Disposal of Waste Equipment by Users in the European Union Euphonix is Avid. Learn more at www.avid.com... -
Page 7: Lithium Battery Replacement
Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. Euphonix is Avid. Learn more at www.avid.com... - Page 8 • CM401T: Master control module with configuration interface. • CM402T: Expanded channel module with eight faders. • CM403: Dual joystick and film monitor panel. • CM408T: Eight-fader module. • CM411: VGA/DVI input module with optional dual joysticks. Euphonix is Avid. Learn more at www.avid.com...
-
Page 9: Specifications
12” 33.5” 35lb CM408T 2A per input 853BTU/hr 34 cm 30 cm 84 cm 16 kg 13.25” 12” 33.5” 18lb CM411 2A per input 119BTU/hr 34 cm 30 cm 84 cm 8.2 kg Euphonix is Avid. Learn more at www.avid.com...
