Quick Start Guide
1

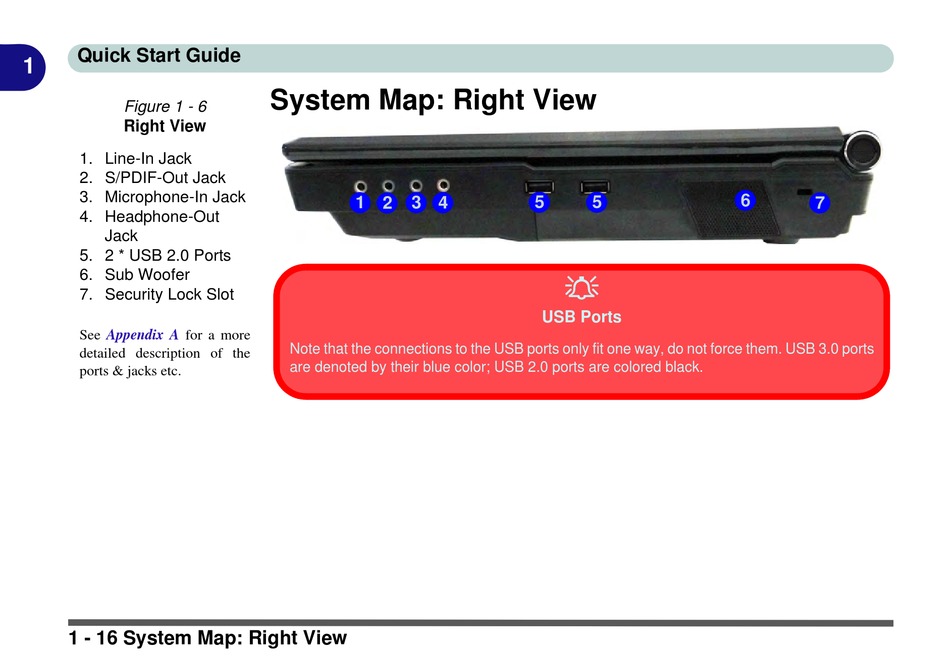

Figure 1 - 6
Right View
1. Line-In Jack
2. S/PDIF-Out Jack
3. Microphone-In Jack
4. Headphone-Out
Jack
5. 2 * USB 2.0 Ports
6. Sub Woofer
7. Security Lock Slot
See
Appendix A
for a more
detailed description of the
ports & jacks etc.
1 - 16 System Map: Right View
System Map: Right View
1
3
4
2
Note that the connections to the USB ports only fit one way, do not force them. USB 3.0 ports
are denoted by their blue color; USB 2.0 ports are colored black.
