RAID Setup (Intel Matrix)
1.
As the computer starts up press Ctrl + i to enter RAID configuration menu.
2.
Select 1.Create RAID Volume and press Enter.
3.
Type the RAID volume name and then press Tab or Enter to advance to the next
field.
4.
Specify (use the up and down arrow keys) the RAID level (RAID 0 (Stripe), RAID
1 (Mirror) or RAID 5 (Parity) - see
or Enter to advance to the next field.
Table 7 - 1, on page 7 -
3) and then press Tab
Setting Up SATA RAID or AHCI Mode 7 - 5
Modules

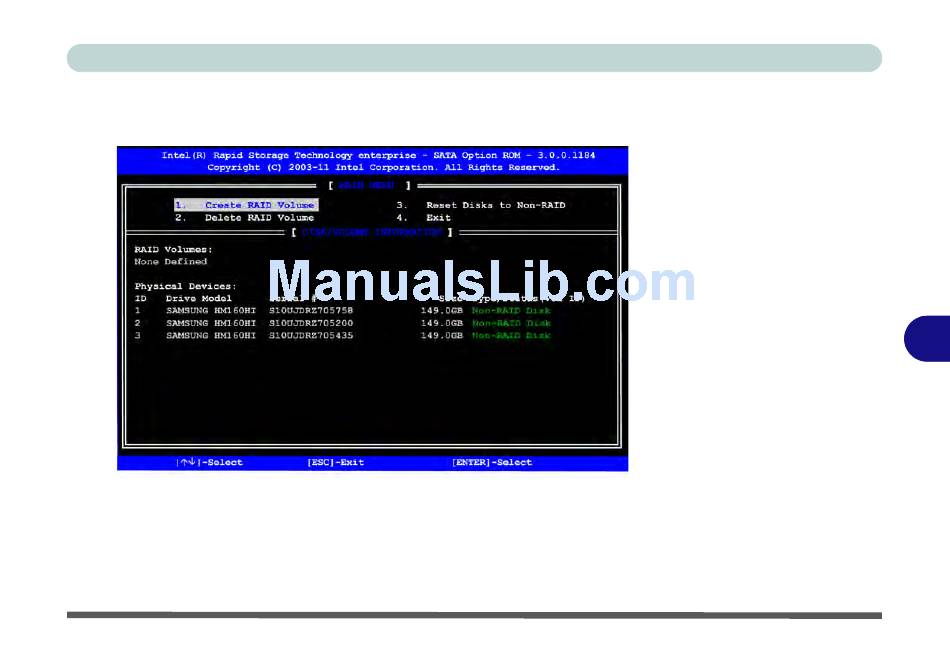

Figure 7 - 1
Intel(R) Rapid
Storage Technology
Option ROM
7
