Upgrading The Computer

Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.
6

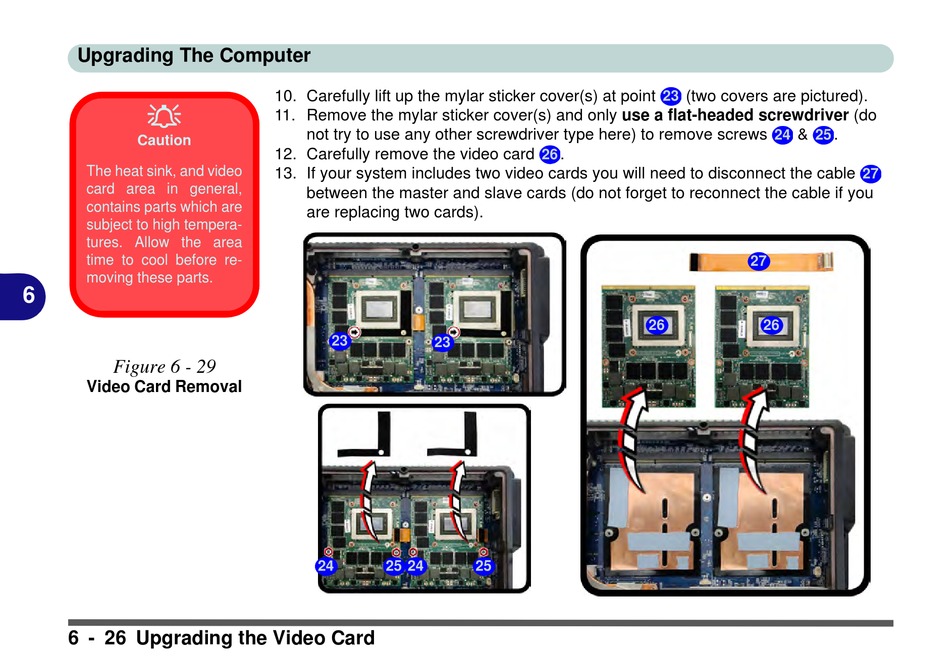

Figure 6 - 29
Video Card Removal
6 - 26 Upgrading the Video Card
10. Carefully lift up the mylar sticker cover(s) at point
11. Remove the mylar sticker cover(s) and only use a flat-headed screwdriver (do
not try to use any other screwdriver type here) to remove screws
12. Carefully remove the video card
13. If your system includes two video cards you will need to disconnect the cable
between the master and slave cards (do not forget to reconnect the cable if you
are replacing two cards).
23
23
24 23 25 24
.
26
26
25
(two covers are pictured).
23
& .
24 25
27
26
27
