8. Carefully pull the tab
the VGA assembly (a single unit is pictured).
9. Remove the heat sink unit(s)
21
20
and lift at points &
19 20 21
(two heat sink units are pictured here).
22
19
to disconnect the heat sink from
22 22
Upgrading the Video Card 6 - 25
Upgrading The Computer

Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.

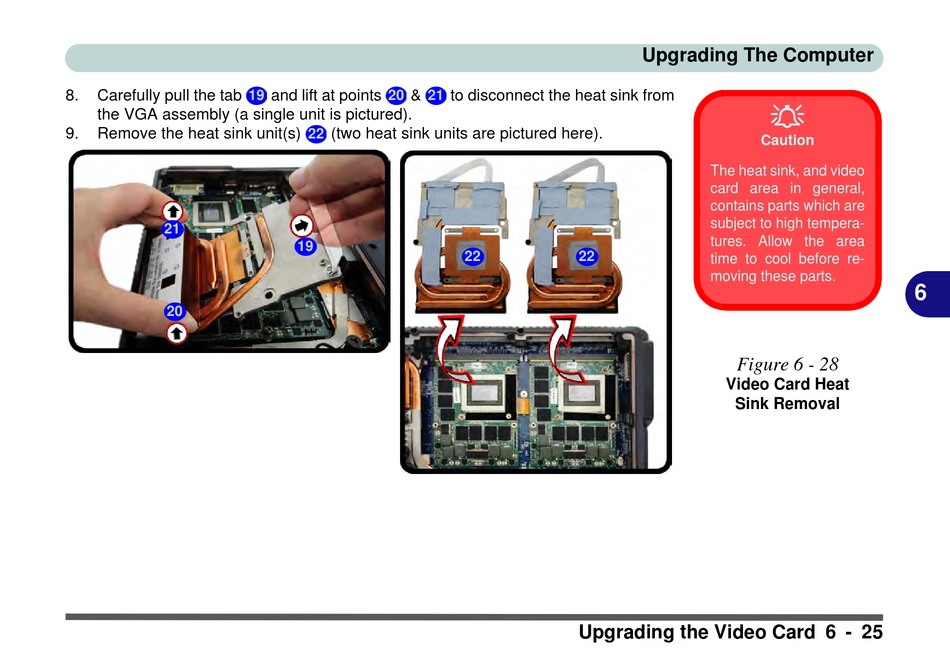

Figure 6 - 28
Video Card Heat
Sink Removal
6
