System Map: Right View

The powered USB 2.0 port
erating devices) when the system is off but still powered by the AC/DC adapter plugged
into a working outlet, or powered by the battery with a capacity level above 20% (this may
not work with certain devices). Toggle power to this port by using Fn + power button.
1

Powered USB 2.0 Port
2
can supply power (for charging devices only, not for op-
2
3
System Map: Right View 1 - 13
Quick Start Guide

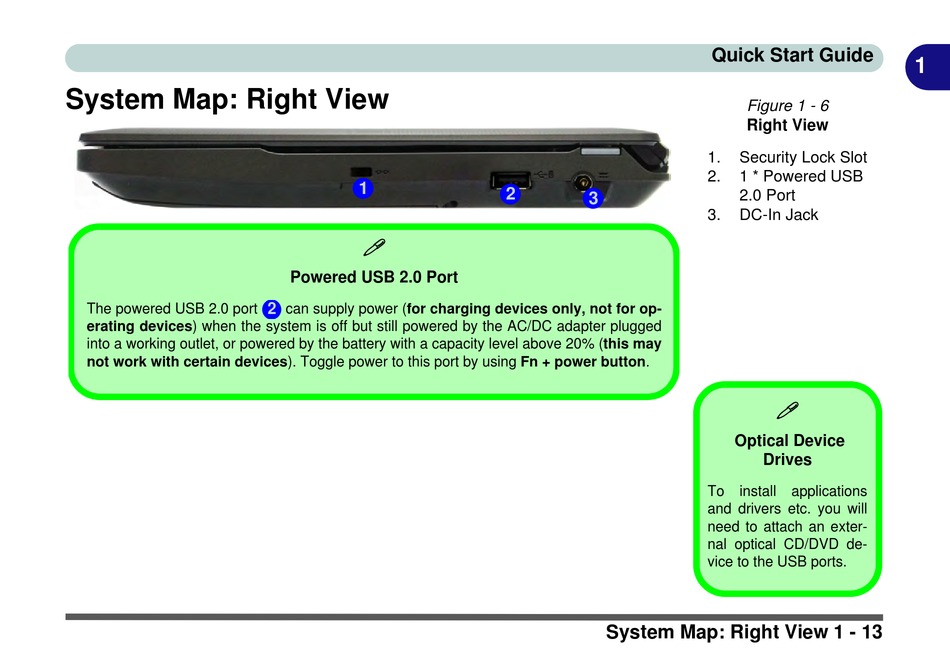

Figure 1 - 6
Right View
1. Security Lock Slot
2. 1 * Powered USB
2.0 Port
3. DC-In Jack

Optical Device
Drives
To install applications
and drivers etc. you will
need to attach an exter-
nal optical CD/DVD de-
vice to the USB ports.
1
