System Map: Right View

1
2
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.
The ExpressCard Slot accepts either ExpressCard/34 or ExpressCard/54 formats.
The card reader allows you to use the most popular digital storage card formats:
MMC (MultiMedia Card) / SD (Secure Digital) / MS (Memory Stick) /
MS Pro (Memory Stick Pro) / MS Duo (requires PC adapter) /
Mini SD (requires PC adapter) / RS MMC (requires PC adapter)
See "Ports and Jacks" on page A - 2
which allow your computer to communicate with external devices, connect to the internet
etc.
3 3
4
5 6
Mini-IEEE 1394 Port
ExpressCard Slot
7-in-1 Card Reader
for a description of the interface (ports & jacks)
8
7
System Map: Right View 1 - 11
Quick Start Guide
Figure 1 - 5

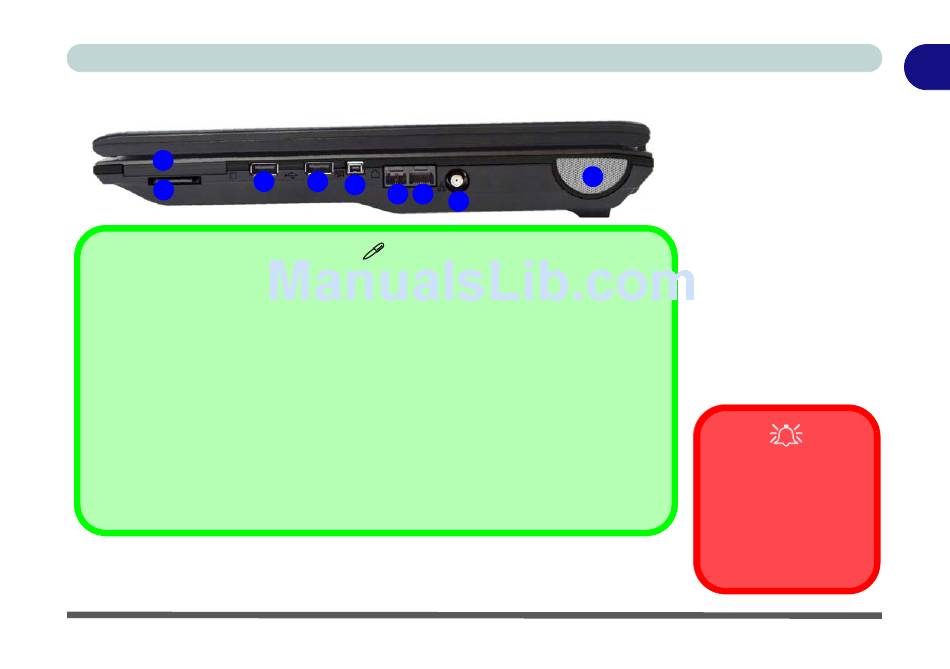

Right View
1. Express Card Slot
2. 7-in-1 Card Reader
3. 2 * USB 2.0 Ports
4. Mini-IEEE 1394 Port
5. RJ-11 Phone Jack
6. RJ-45 LAN Jack
7. CATV Antenna Jack
(Enabled With TV
Tuner Only)
8. Speaker
USB Ports
Note that the connec-
tions to the USB ports
only fit one way, do not
force them.
