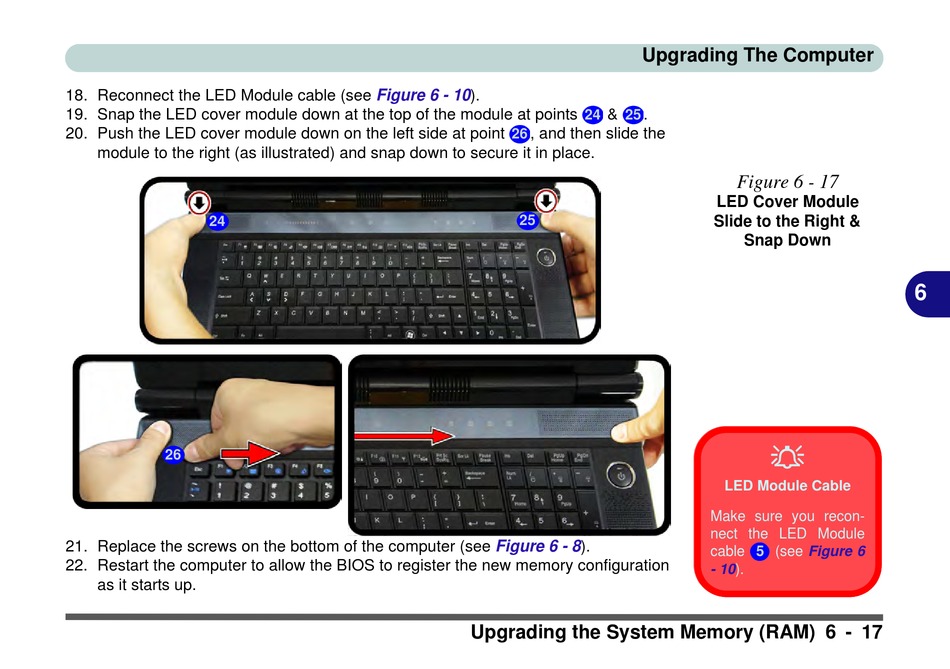

18. Reconnect the LED Module cable (see
19. Snap the LED cover module down at the top of the module at points
20. Push the LED cover module down on the left side at point
module to the right (as illustrated) and snap down to secure it in place.
24
26
21. Replace the screws on the bottom of the computer (see
22. Restart the computer to allow the BIOS to register the new memory configuration
as it starts up.
Figure 6 - 10).
, and then slide the
26
25
Figure 6 -
Upgrading the System Memory (RAM) 6 - 17
Upgrading The Computer
& .
24 25
Figure 6 - 17
LED Cover Module
Slide to the Right &
Snap Down
LED Module Cable
Make sure you recon-
nect the LED Module
8).
cable
- 10).
6

5 (see Figure 6
