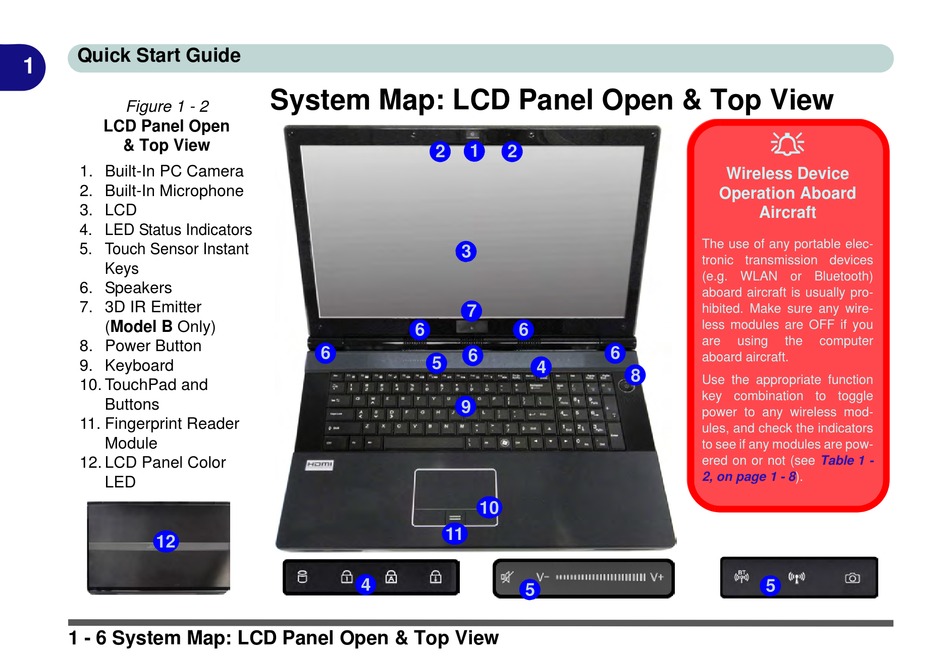

Figure 1 - 2
LCD Panel Open
& Top View
1. Built-In PC Camera
2. Built-In Microphone
3. LCD
4. LED Status Indicators
5. Touch Sensor Instant
Keys
6. Speakers
7. 3D IR Emitter
(Model B Only)
8. Power Button
9. Keyboard
10. TouchPad and
Buttons
11. Fingerprint Reader
Module
12. LCD Panel Color
LED
12
1 - 6 System Map: LCD Panel Open & Top View
System Map: LCD Panel Open & Top View
2
6
6
5
11
4
1
2
3
7
6
6
6
4
8
9
10
5

Wireless Device
Operation Aboard
Aircraft
The use of any portable elec-
tronic transmission devices
(e.g. WLAN or Bluetooth)
aboard aircraft is usually pro-
hibited. Make sure any wire-
less modules are OFF if you
are using the computer
aboard aircraft.
Use the appropriate function
key combination to toggle
power to any wireless mod-
ules, and check the indicators
to see if any modules are pow-
ered on or not (see Table 1 -
2, on page 1 - 8).
